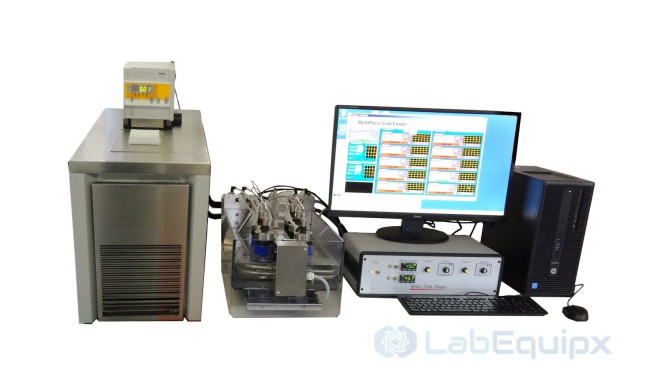

Multi-Place Cold Finger

  • Function. Quantifies wax-inhibitor efficiency by storing a hydrocarbon sample in multiple cells, each with a different inhibitor dose, against a cooled surface.

    Controlled. Cell and cold-finger temperature; inhibitor dose per cell.

    Measured. Deposited wax mass per cell; inhibitor ranking.

    Pressure and temperature ratings, wetted materials, cell/loop geometry and instrumentation are configured per project. Guaranteed performance and included hardware are stated only in the project-specific technical proposal and approved datasheet.

    Models: LEMCF, LEMCF6, LEMCF12, LEMCF18

    • Multi-Place Cold Finger
    • Multi-Place Cold Finger
    • Multi-Place Cold Finger
  • Technical data

    • An arrangement for 6 sample bottles is available.
    • A further arrangement accommodates 12 sample bottles.
    • The larger arrangement accommodates 18 sample bottles.
    • Tests operate at atmospheric pressure.
    • Oil temperature can range from ambient conditions to 100°C.
    • The cold finger operates between -10°C and 80°C.
    • The oil and a cold finger may differ in temperature by up to 20°C.
    • Any two cold fingers may have a temperature difference up to 20°C.
    • The stirrer runs between 100 and 2,000 rpm.
    • Each test requires 100 ml of sample.
    • Each cold finger uses 1 temperature sensor for its control.
    • Electrical supply options are 220 VAC at 50 Hz or 220 VAC at 60 Hz.

    Operation and applications

    • Tests run under automatic control.
    • Measurements can proceed in parallel.
    • Temperature ramps and adjustable stirring speeds are available.
    • Each cold finger has its own temperature control.
