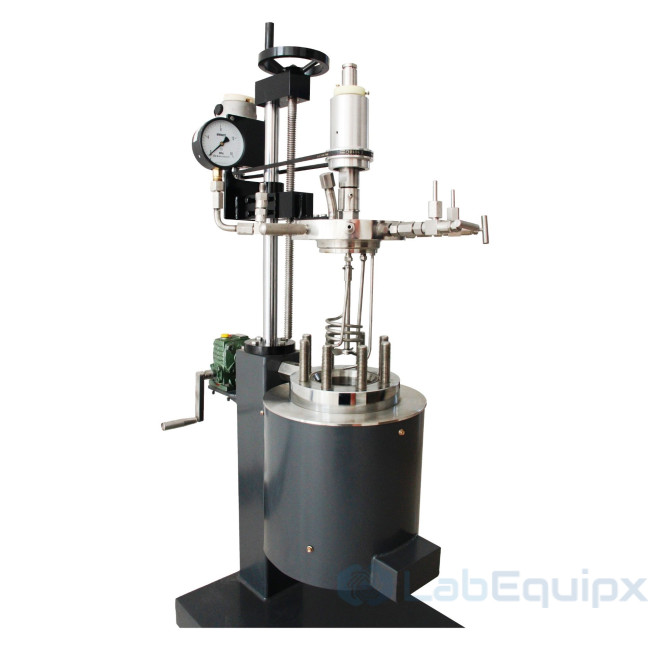

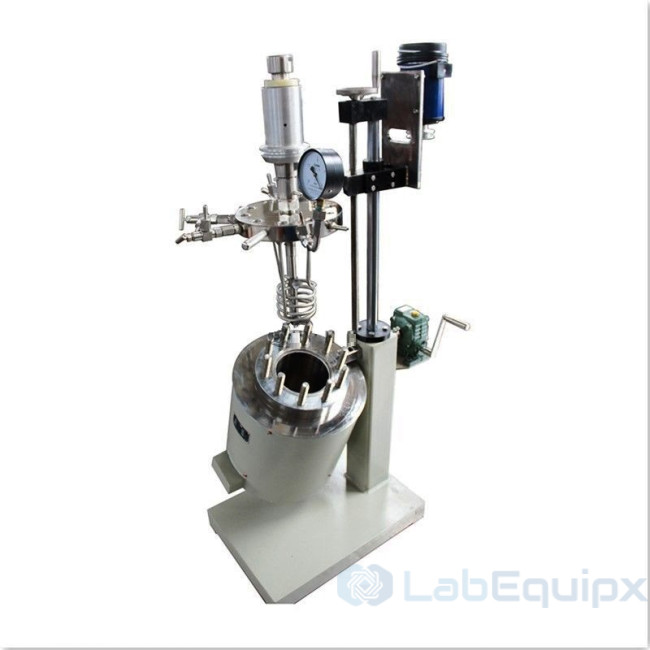

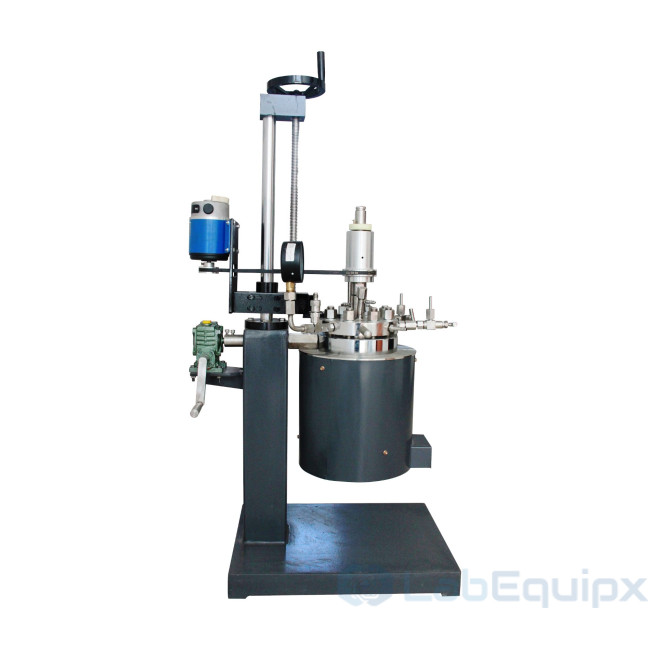

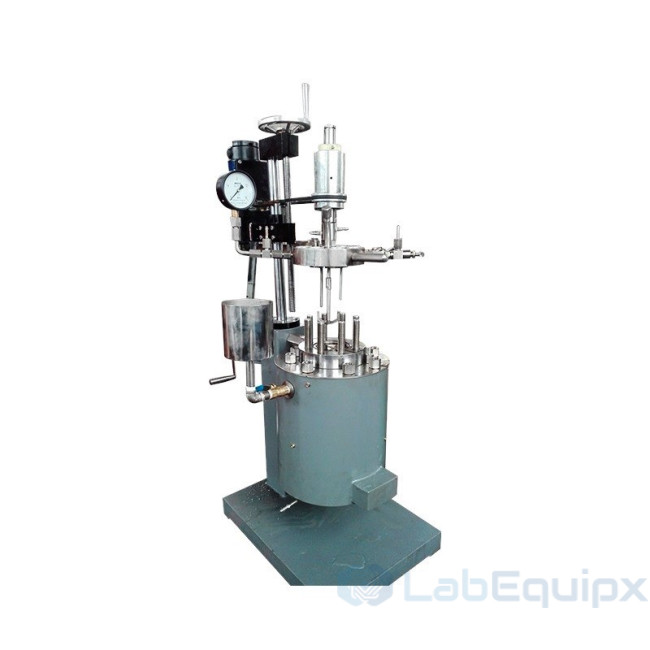

Stirred Lab Pressure Reactor with Lift and Tilt

  • The LEC276 series is a stirred laboratory autoclave with a manual lift and flip device. The lid lifts off and the vessel tilts, so the operator can empty and clean it quickly between runs. Sizes run from 250 ml to 5 liters on a floor stand or a moveable cart, which suits routine laboratory experiments and tests where the reactor is opened many times a day.

    Design

    The stirrer is driven through a magnetic coupling with a static seal, offered from low to high torque, so no rotating seal leaks to the atmosphere. Stirring speed is 0 to 1500 r/min with propeller, paddle, anchor or custom stirrers. Standard ratings are 10 MPa working pressure and 350 ℃ working temperature. The family covers up to 200 bar and up to 500 ℃.

    Heating is general electric heating, 1 kW on the 0.25 and 0.5 L vessels up to 4 kW on the 5 L vessel. Water recirculation and thermal oil heating are available. Cooling is through spiral coils, single or serpentine. Charging is from above, and a bottom valve is available. The control panel displays temperature, time and heating voltage, controls temperature to ±1 ℃, and displays and sets stirring speed. Temperature, pressure, motor speed, gas and liquid flow and level can be monitored and controlled.

    Special alloy construction

    When a special alloy is specified, the head, cylinder and all internal wetted parts are made of that alloy. External valves and fittings stay stainless steel, because they do not see the corrosive conditions inside the vessel. This keeps the cost of an alloy reactor down. Alloys offered are titanium, nickel, Hastelloy B/C, Monel, zirconium, Inconel and tantalum, besides SS304 and SS316.

    What is included

    • Pressure gauge, thermocouple, internal stirring system
    • Liquid inlet and gas inlet with needle valves, gas release valve
    • Dip tube, safety rupture disc on the safety port, cooling coil

    Specify for your project

    • Capacity: 0.25, 0.5, 1, 2, 3 or 5 L
    • Pressure and temperature: standard or up to the family maximum
    • Wetted material
    • Floor stand or moveable cart
    • Bottom valve and heating method
    ModelCapacity (L)Motor (kW)Heating (kW)
    LEC276-0.250.250.151
    LEC276-0.50.50.151
    LEC276-110.22
    LEC276-220.22
    LEC276-330.23
    LEC276-550.64

    This description defines the product family. Guaranteed performance, included hardware, exclusions, interfaces and acceptance criteria are stated only in the project-specific technical proposal and approved datasheet.

    • Stirred Lab Pressure Reactor with Lift and Tilt
    • Stirred Lab Pressure Reactor with Lift and Tilt
    • Stirred Lab Pressure Reactor with Lift and Tilt
    • Stirred Lab Pressure Reactor with Lift and Tilt
    • Stirred Lab Pressure Reactor with Lift and Tilt
    • Stirred Lab Pressure Reactor with Lift and Tilt
    • Stirred Lab Pressure Reactor with Lift and Tilt
  • Product features

    • Floor stands or moveable cart type.
    • Laboratory autoclaves with 250 ml to 5 liters volume.
    • Max pressure: 200 bar; Max temperature up to 500 ℃
    • Low to high torque magnetic couplings: static seal with no leakage.
    • Available material:SS304, SS316, Titanium, Nickel, Hastelloy B/C, Monel, Zirconium, Inconel, Tantalum
    • Lifting and tilting device for easy operation,low labor cost.
    • Monitor and control: Temperature, pressure, motor speed, gas / liquid flow, level, etc
    • Safety Device (Blasting Disc) on Security Blasting Port.
    • Customized according to customers requirement.

    Standard specifications

    Model No. LEC276-0.25 LEC276-0.5 LEC276-1 LEC276-2 LEC276-3 LEC276-5
    Capacity (L) 0.25 0.5 1 2 3 5
    Working Pressure (MPa) 10 10 10 10 10 10
    Working Temperature(℃) 350 350 350 350 350 350
    Stirring Speed (r/min) 0-1500 0-1500 0-1500 0-1500 0-1500 0-1500
    Motor power (kW) 0.15 0.15 0.2 0.2 0.2 0.6
    Heating Power (kW) 1 1 2 2 3 4
    Heating Method General electric heating(water recycling, thermal oil heating available
    Cooling Method Spiral coils(Single coils, serpentine coils available)
    Charging Method Charging from above(Bottom valve available)
    Stirring type Propeller, paddle type, anchor type or customized
    Lifting and tilting type Mannual operation
    Control panel Temperature, time and heating voltage display
    Temperature adjustment control, accuracy±1 ℃
    Stirring speed display and control
    Standard fittings Pressure Gage; Thermocouple; Internal Stirring System
    Liquid inlet and gas inlet with needle valve;Gas Release Valve
    Dip Tube; Safety Rupture Disc; Cooling Coil

    Product details

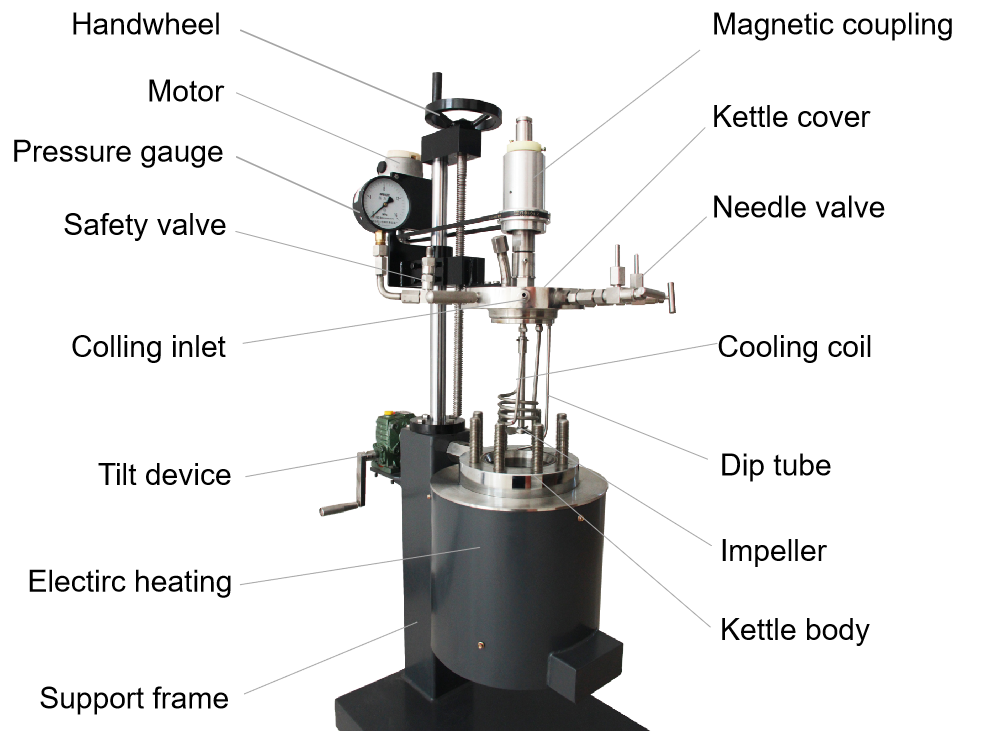

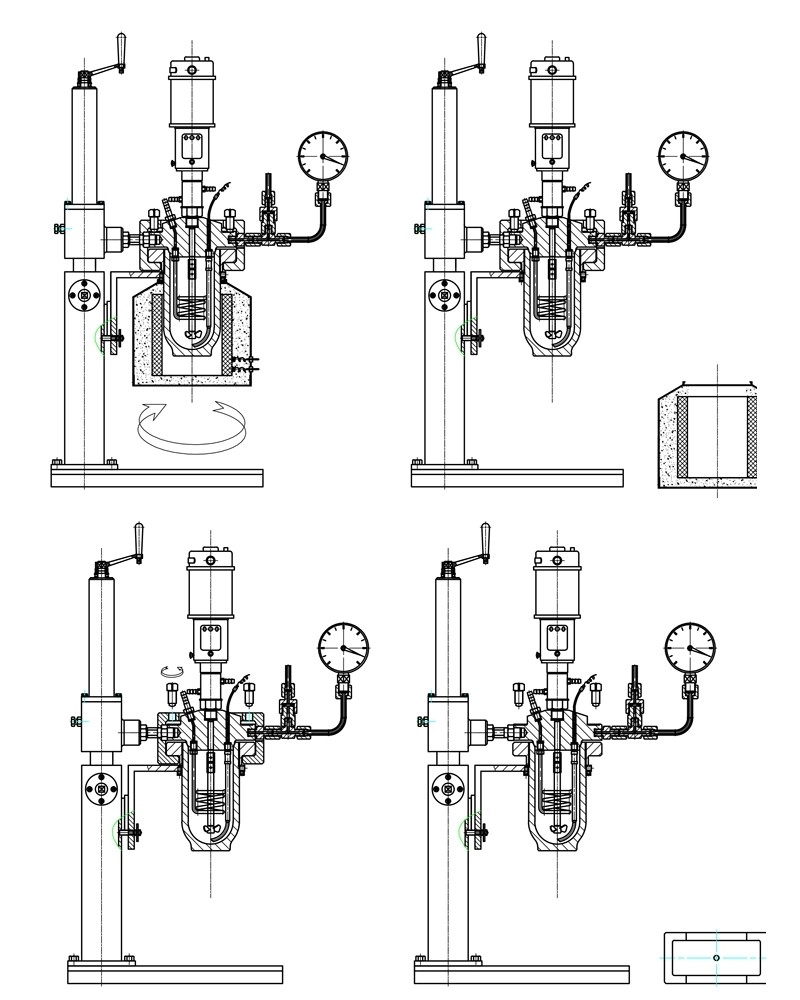

    Structure drawings

    Stirred Lab Pressure Reactor with Lift and Tilt

    Control system

    Stirred Lab Pressure Reactor with Lift and Tilt

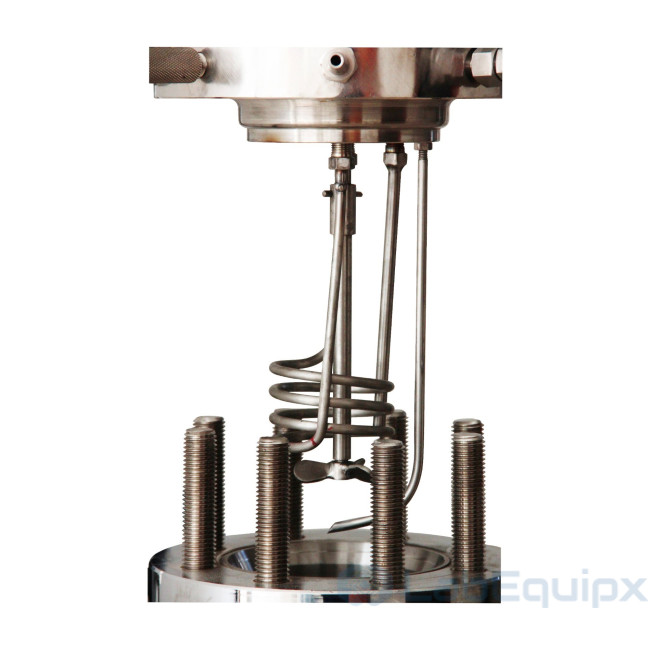

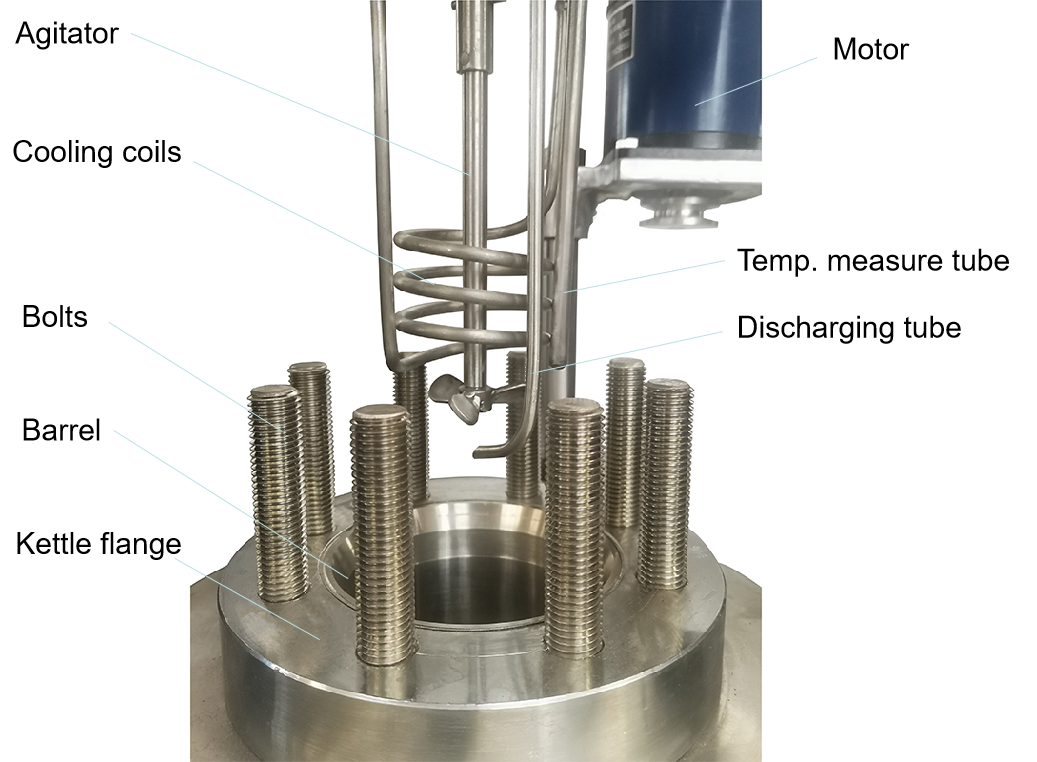

    Internal components

    Stirred Lab Pressure Reactor with Lift and Tilt
    Stirred Lab Pressure Reactor with Lift and Tilt
    Stirred Lab Pressure Reactor with Lift and Tilt
