Vertical Stirred Pressure Reactors

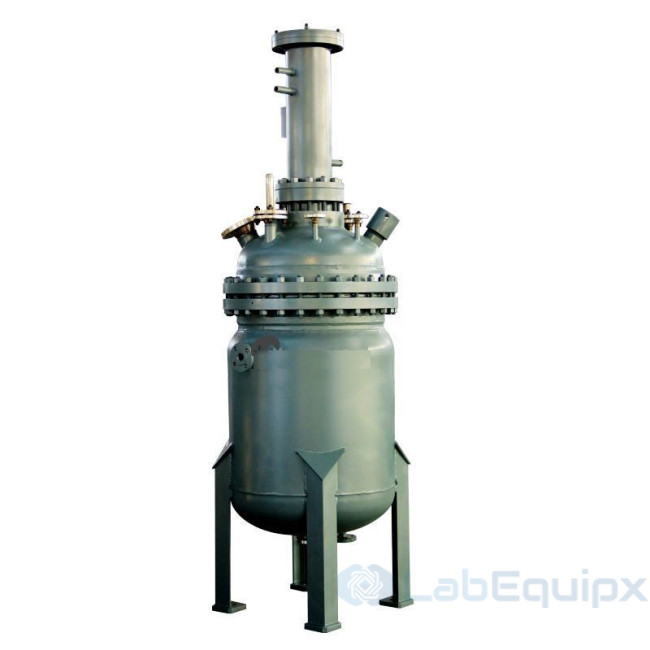

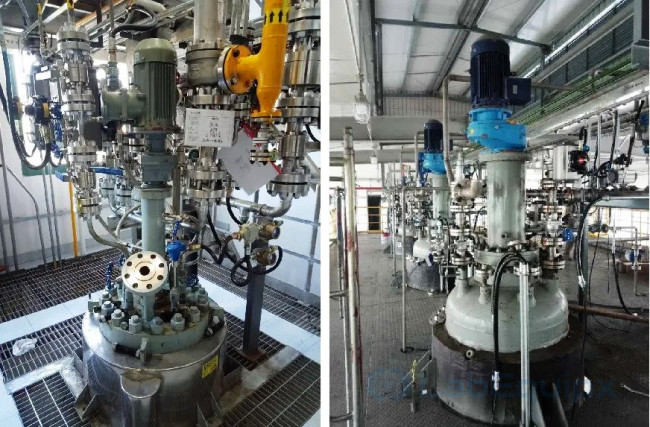

  • LEVSPR reactors are vertical pilot scale stirred vessels of 100 to 1000 liters for high pressure processes and hydrogenation. The agitator is driven through a magnetic coupling with a static seal, so there is no rotating shaft seal to leak hydrogen or solvent vapour. The series is used for high pressure, high vacuum and high temperature work when a process moves from laboratory autoclaves to pilot production.

    Family range

    The family is built on floor stands, with a moveable cart available on request, and magnetic couplings from low to high torque. Design pressure and temperature are set for each project. A lifting device for raising and lowering the reactor head is available. The bottom head is ellipsoidal. Materials offered are SS304, SS316, titanium, nickel, Hastelloy B/C, Monel, zirconium and Inconel. Temperature, pressure, motor speed and operating time are monitored and controlled.

    Reference configuration

    The standard specification describes a jacketed, steam heated unit; its working volume is stated in the proposal:

    • Shell material SS31603, jacket material Q345R carbon steel
    • Shell maximum pressure 18bar, shell maximum temperature 185℃
    • Jacket design temperature 185℃, steam heating through the jacket
    • Top head: elliptical flange with bolts, magnetic seal
    • Motor 5.5 kW with frequency converter; explosion protection marking on request
    • Stirring speed 0-100rpm, anchor (frame type) impeller

    The low stirring speed and anchor impeller suit viscous batches and heat transfer to the jacket wall. The frequency converter sets the speed within the range.

    Specify for your project

    • Working volume, 100 to 1000 liters
    • Design pressure and temperature for the shell and the jacket
    • Wetted material of the shell
    • Heating medium: steam or other jacket service
    • Impeller type and speed range
    • Floor stand or cart, head lifting device

    All configurations are customized to the customer's process; the model code for each build is assigned in the proposal under the LEVSPR family.

    This description defines the product family. Guaranteed performance, included hardware, exclusions, interfaces and acceptance criteria are stated only in the project-specific technical proposal and approved datasheet.

    • Vertical Stirred Pressure Reactors
    • Vertical Stirred Pressure Reactors
  • Features

    • Floor stands; moveable cart on request.
    • Capacity volume: 100 liters to 1000 liters .
    • Design pressure and temperature set for each project.
    • Low to high torque magnetic couplings: static seal.
    • Lifting device available for reactor head rising and lowering.
    • Top head type: Elliptical flange with bolts; Bottom head type: Ellipsoidal type.
    • Available material:SS304, SS316, Titanium, Nickel, Hastelloy B/C, Monel, Zirconium, Inconel.
    • Monitor and control: Temperature, pressure, motor speed, operating time, etc.
    • Customized according to customers requirement.

    Standard Specification

    • Shell Material: SS31603
    • Jacket Material:Q345R(Carbon steel)
    • Maximum pressure(Shell):18bar
    • Maximum temperature(Shell):185℃
    • Design temperature(Jacket):185℃
    • Heating method:Steam heating(Jacketed)
    • Top head type: Eleptical Flange with bolts
    • Seal type: Magnetic seal
    • Motor power: 5.5 kW, explosion protection marking on request; equipped with frequency converter.
    • Stirring speed:0-100rpm
    • Impeller type:Anchor type(Frame type)
