Stainless Steel Reactor with Vacuum, Heating & Reflux

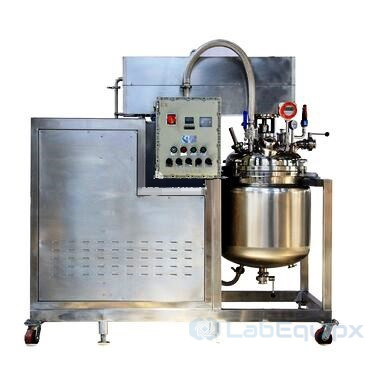

  • The LESSRVHR is a jacketed stainless steel mixing and vacuum distillation vessel supplied complete with agitator, oil heating, vacuum pump, control box and a wheeled steel frame. It is used to mix, heat and strip solvents or water under vacuum in food, beverage, pharmaceutical, biological and chemical processing, including honey, chocolate and alcohol products. The reference build is a 100 liter vessel; the LESSRVHR family runs from 10L to 10000L.

    How it works

    Heat transfer oil is heated electrically, 14 kW in total, and circulated through the jacket, which carries the oil inlet and outlet, an electric heating rod and a thermoprobe. An explosion-proof gear motor of 0.55 kW turns a paddle and propeller agitator at 30-150 rpm through a mechanical seal rated 0.4 MPa. A water ring vacuum pump of 1.5 kW with an explosion-proof motor and a 30L water tank pulls vacuum on the vessel. The PID control box, explosion-proof, displays and controls temperature and stirring speed.

    Design

    The reference vessel is clad SS316, food grade, with a double layer SS304 construction. The vessel is Φ500 x 450 mm inside a Φ600 jacket and is closed by a semi elliptical head with quick open flange and clamp. The pressure rating is confirmed on request. The working temperature is 0-150℃. The interior is mirror polished to Ra below 0.6 µm. Top ports: thermoprobe, glass window, vacuum port, 2 DN25 liquid and solid inlets, stirrer seat and a pressure gauge with rupture disc. The bottom discharge port has a drain valve. The reference unit has no internal cooling coil and no external condenser; a condenser and reflux arrangement is an option for other builds. Overall size is about 700 x 1200 x 1580 mm.

    Options

    • Single, double (heating) or three layer (insulated) shell
    • Dish, open lid, flat or semi-elliptical head; dish, conical or flat bottom
    • Conventional or limpet coil jacket; steam or electric heating
    • Mechanical seal or magnetic seal
    • Homogenizer, propeller, anchor, paddle or scraper mixer
    • Manhole, CIP spray balls, level meter, distillation fittings, pumps, PLC control

    Specify for your project

    • Volume, 10L to 10000L
    • Vacuum and working pressure
    • Working temperature
    • SS304 or SS316, PTFE liner optional
    • Heating mode, mixer type and seal type
    • Condenser and reflux layout

    This description defines the product family. Guaranteed performance, included hardware, exclusions, interfaces and acceptance criteria are stated only in the project-specific technical proposal and approved datasheet.

    • Stainless Steel Reactor with Vacuum, Heating & Reflux
  • Volume

    100 Liters

    Maximum pressure

    On request

    Maximum temperature

    150℃ (0-150℃ working temperature)

    Material

    Clad SS316, food grade. Double layer SS304

    Vessel Size

    Φ500*450 4t

    Jacket Size

    Φ600 4t

    Motor

    Explosion-proof Gear Motor, Domestic, 0.55kw

    Mechanical seal

    30-204B; 0.4MPa,domestic brand.

    Stirrer

    Paddle + propeller agitator, 30-150rpm

    Heating type

    Electric oil heating;Hot conduct oil;Total power:14kw

    Head type

    Semi elliptical head with quick open flange & Clamp

    Internal cooling coils

    No

    External condenser

    No

    Vacuum pump

    Water ring vacuum pump with explosion-proof motor; 2BV-1.5KW

    Equipped with water storage tank; 30L

    Finish

    Mirror Polish; Ra<0.6um

    Steel frame

    Reactor steel frame with moveable wheels;

    Equipped with vacuum pump steel frame.

    Electric control box

    PID control;Temperature and stirring speed display and control;

    Equipped with explosion-proof control box. 100*100*250*3t

    Top opening port

    1×Thermoprobes; 1×glass window; 1×Vacuum port;

    2×DN25 liquid & solid inlet port; 1×Stirring sit port

    1×Pressure gauge with rupture disc

    Bottom opening port

    1×Bottom discharge port with drain valve

    Opening port on heating Jacket

    Oil inlet and outlet on jacket. Electric heating rod; 1×Thermoprobes

    Total Size(Estimate)

    700mm × 1200mm × 1580mm

    Vacuum mixing tank/Electric heating mixing tank:

    • Volume: 50L, 100L, 200L, 500L, 1000L.
    • Including jacketed distillation reactor, storage tank, heating system, pipelines, valves, temperature gauge PT100,pressure gauge, platform etc;
    • Material:SS304/SS316;
    • Working pressure: Vacuum/ 1bar;
    • Heating method: Oil electric cycling;
    • Cooling method: Internal cooling coils optional;
    • The inner container has a mirror-polished surface.
    • The mixing tank is done at a variable or constant speed according to various capabilities and technical requirements.
    • We can customize the mixing tanks according to your process requirements and drawings.

    Features:

    Volume

    10L-10000L (Other volume customized)

    Pressure

    On request

    Temperature

    On request

    Material

    SS304 or SS316 ; PTFE liner optional

    Layers

    Single/ Double(heating)/ Three layers(Insulation)

    Top head type

    Dish, Open lid, Flat, semi-elliptical head

    Bottom type

    Dish, Conical, Flat bottom

    Heating mode

    Oil Electric heating, Steam heating, electric heating

    Jacket

    Conventional jacket/ Limpet Coil jacket

    Seal type

    Mechnical sealing or magnetic seal

    Mixing type

    High speed homoginizer, Propeller, anchor, paddle, scraper type, etc.

    Optional parts

    Quick open manhole / Pressure manhole

    Various types of CIP spraying ball

    Liquid level meter and lever controller

    Ladder ( Optional )

    The pressure gauge ( Optional )

    Application

    Food, Beverage, pharmacy, biological, honey, chocolate, alcohol, chemical industry etc

    Mixing tank fittings optional as fellows:

    Vessel fittings

    Cleaning ball, Long flange mirror; Mirror light; Sampling valve; Liquidometer, Glass manhole

    Pump Feeding pump, recycling pump, metering pump, sanitary pump, emulsion pump
    Pipeline Pipeline mirror; Ball valve; Butterfly valve; Filter
    Distillation fittings Distillation fittings
    Control PLC control; Explosion-proof pannel
