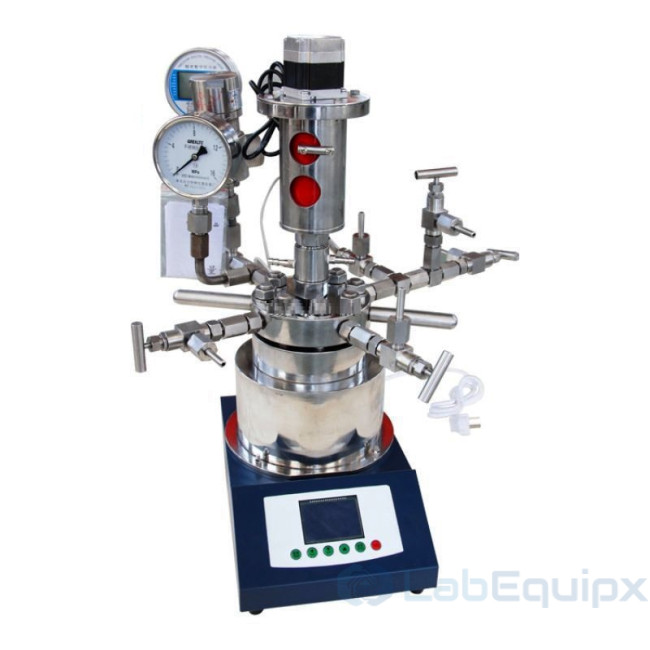

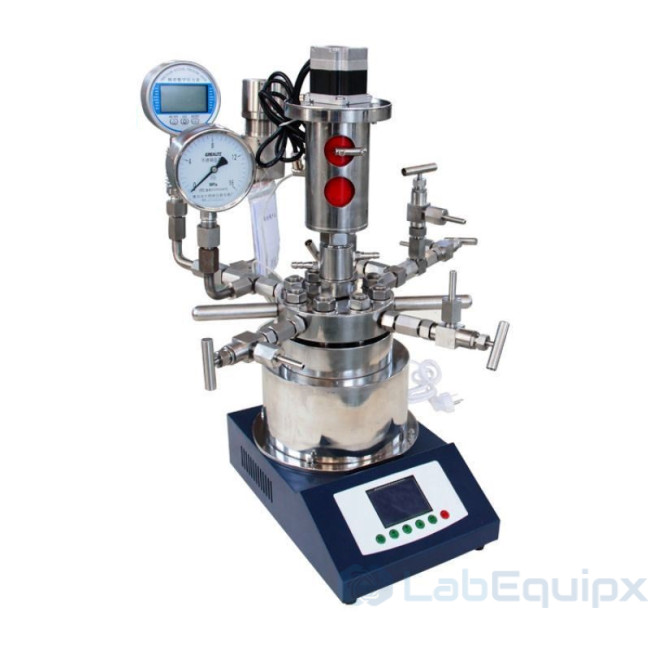

Mini Laboratory Stirred Autoclave Reactor

  • The LEMLSAR mini autoclave is a bench-scale stirred pressure vessel for reactions in 25 to 500 ml. Small volumes keep the reagent and catalyst use low, so chemists can run screening and route development at pressure without committing litres of material. The family also includes non-stirred pressure reactors and plain pressure vessels.

    How it works

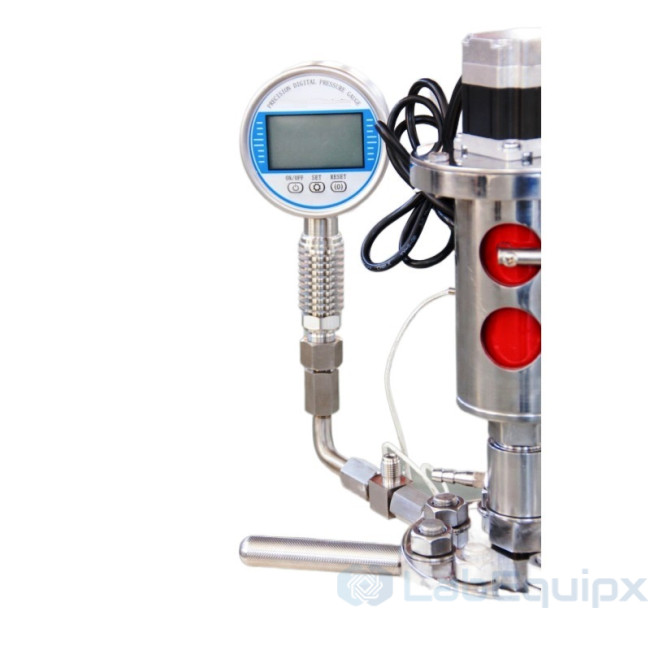

    The reactants are charged, the head is closed and the stirrer turns through a high torque magnetic drive coupling with no shaft seal exposed to the process. Stirring speed is 0 to 1500 r/min on all sizes. The motor is 150 W on the 25 to 200 ml vessels and 200 W on the 500 ml vessel. A modular electric heater surrounds the vessel: 600 W on 25 and 50 ml, 800 W on 100 and 200 ml, 1000 W on 500 ml. Temperature, pressure and motor speed are monitored and controlled from the control unit.

    Standard design pressure is 100 bar and standard design temperature is 300 °C on all sizes. Pressures up to 250 bar are offered. Wetted materials are SS304, SS316, Hastelloy B/C, Monel, nickel, titanium and zirconium, with a PTFE liner as an option. Volume, material, pressure and temperature can be customized on request.

    What is included

    • Pressure vessel and head
    • Magnetic drive coupling, stirrer and motor
    • Modular electric heater
    • Control of temperature, pressure and motor speed

    Specify for your project

    • Volume: 25, 50, 100, 200 or 500 ml
    • Design pressure: 100 bar standard or up to 250 bar
    • Material, and PTFE liner if needed
    • Stirred or non-stirred vessel
    • Any custom volume, pressure or temperature
    ModelVolumeMotor (W)Heating (W)
    LEMLSAR-0.02525 ml150600
    LEMLSAR-0.0550 ml150600
    LEMLSAR-0.1100 ml150800
    LEMLSAR-2200 ml150800
    LEMLSAR-5500 ml2001000

    This description defines the product family. Guaranteed performance, included hardware, exclusions, interfaces and acceptance criteria are stated only in the project-specific technical proposal and approved datasheet.

    • Mini Laboratory Stirred Autoclave Reactor
    • Mini Laboratory Stirred Autoclave Reactor
    • Mini Laboratory Stirred Autoclave Reactor
    • Mini Laboratory Stirred Autoclave Reactor
  • Features:

    • Standard pressures 100bar, up to 250 bar
    • Standard temperatures 300℃
    • SS304, SS316, Hastelloy B/C, Monel, Nickel, Titanium, Zirconium, PTFE optional.
    • High torque zero leakage magnetic drive coupling
    • Module electric heating.
    • Monitor, control like temperature, pressure, motor speed, etc.

    Technical specification:

    Model No. LEMLSAR-0.025 LEMLSAR-0.05 LEMLSAR-0.1 LEMLSAR-2 LEMLSAR-5
    Volume 25 ml 50 ml 100 ml 200 ml 500 ml
    Design Pressixe 100 bar 100 bar 100 bar 100 bar 100 bar
    Design Temp. 300 °C 300 °C 300 °C 300 °C 300 °C
    Motor Power (W) 150 150 150 150 200
    Stirring speed (r/min) 0-1500 0-1500 0-1500 0-1500 0-1500
    Heating Power (W) 600 600 800 800 1000

    Note: Customization of volume, material, pressure, temperature etc. may be possible on request.
