Manual Chain Pulley Lifting Pilot Pressure Reactor

  • The Manual Chain Pulley Lifting Pilot Pressure Reactor (LEMCPLPPR) is a stirred pilot-scale autoclave of 10 to 50 liters nominal volume whose detachable head is raised and lowered by a chain pulley on the stand. At this size the head and vessel are too heavy to lift by hand; the pulley lets one operator open the reactor with little effort. Electric or hydraulic lifting is available. Applications are chemical development, catalyst and corrosion testing, hydrogenation, catalytic reaction, polymerization, scale-up and small-scale production.

    How it works

    The standard head is a flat cover; ellipsoidal flange and conical heads are available. Agitation passes through a magnetic coupling with a static seal and no leakage. Standard heating is electric; thermal oil, steam and far infrared heating are available. An optional spiral coil cools with cooling water, and discharge is from the bottom or from above.

    The control panel provides PID temperature control to ±1 °C and displays stirring speed, operation time, heating voltage and current. The standard models below are rated 100 bar and 350 °C in SS304; the family covers -1 to 300 bar.

    ModelCapacitySpeedMotorHeating
    LEMCPLPPR-1010 L0 to 750 r/min0.6 kW4 kW
    LEMCPLPPR-2020 L0 to 750 r/min1.1 kW9 kW
    LEMCPLPPR-3030 L0 to 500 r/min1.5 kW9 kW
    LEMCPLPPR-5050 L0 to 500 r/min1.5 kW15 kW

    What is included

    • Pressure vessel with detachable head and chain pulley lifting device on a floor stand or moveable cart
    • Magnetic coupling drive with motor and impeller
    • Electric heater and control panel
    • Optional head ports: pressure gauge, safety valve, temperature, gas and liquid inlet, dip tube, vent, solid charging, cooling coil

    Specify for your project

    • Nominal volume: 10, 20, 30 or 50 L
    • Design pressure and temperature
    • Wetted material: SS304, SS316, titanium, nickel, Hastelloy B or C, Monel, zirconium, Inconel or tantalum
    • Head type, lifting method (manual, electric or hydraulic) and heating method
    • Impeller type (propeller, paddle, anchor, spiral, turbine or gas inducing), stirring speed and discharge position
    • Head ports, nozzle size and orientation

    This description defines the product family. Guaranteed performance, included hardware, exclusions, interfaces and acceptance criteria are stated only in the project-specific technical proposal and approved datasheet.

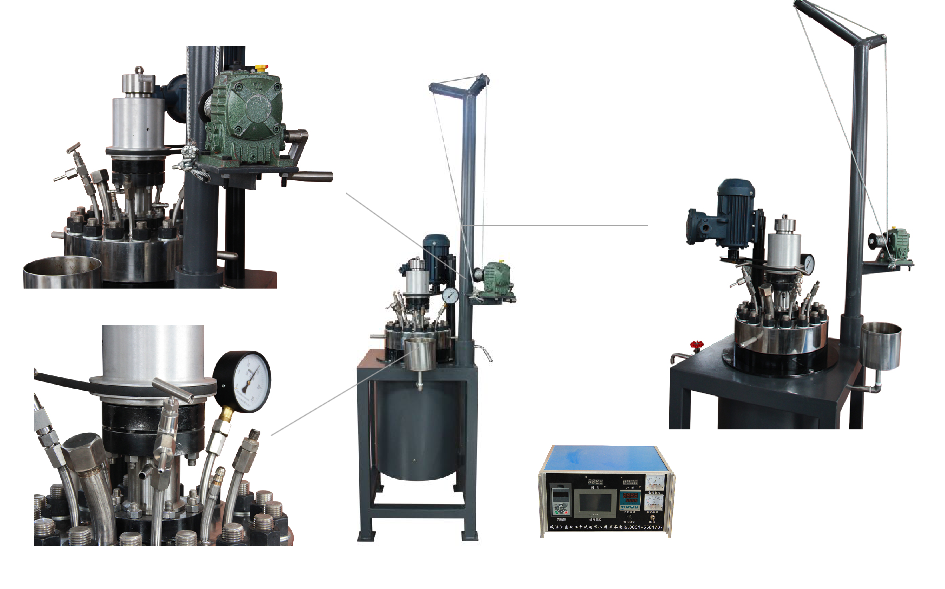

    • Manual Chain Pulley Lifting Pilot Pressure Reactor
    • Manual Chain Pulley Lifting Pilot Pressure Reactor
    • Manual Chain Pulley Lifting Pilot Pressure Reactor
  • Product features

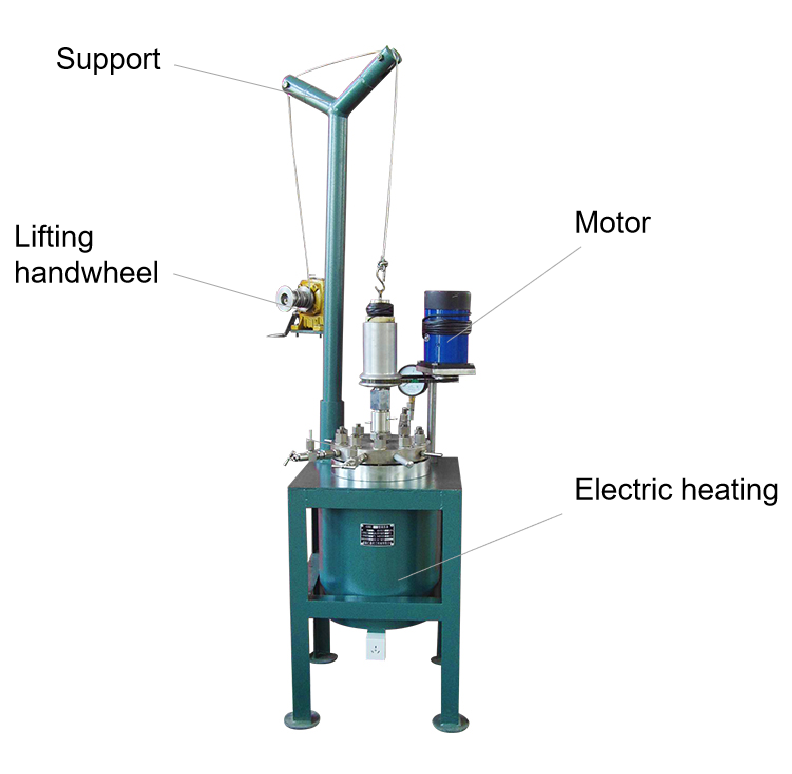

    • Floor stands or moveable cart type.
    • Capacity volume: 10 liters to 50 liters.
    • Pressure: -1~300 bar; Max temperature up to 350 ℃
    • Low to high torque magnetic couplings: static seal with no leakage.

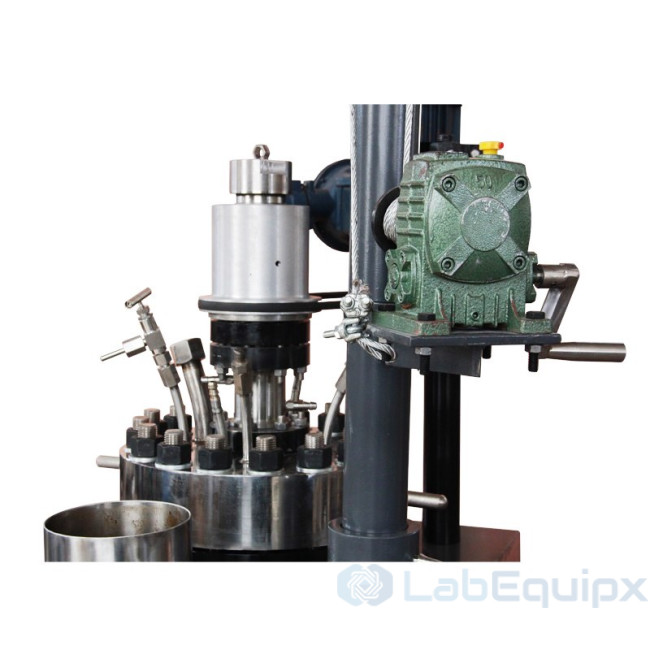

    • Chain pulley lifting device for reactor head rising and lowering (Electric lifting and hydraulic lifting available)
    • Available material:SS304, SS316, Titanium, Nickel, Hastelloy B/C, Monel, Zirconium, Inconel, Tantalum.
    • Monitor and control: Temperature, pressure, motor speed, operating time, etc.
    • Customized according to customers requirement.

    Standard specifications

    Model LEMCPLPPR-10 LEMCPLPPR-20 LEMCPLPPR-30 LEMCPLPPR-50
    Nominal Capacity (L) 10 20 30 50
    Design Pressure (bar) 100 100 100 100
    Material SS304
    Design Temperature (℃) 350
    Stirring Speed (r/min) 0-750 0-750 0-500 0-500
    Motor Power (kW) 0.6 1.1 1.5 1.5
    Heating Power (kW) 4 9 9 15
    Heating Method Standard electric heating(Thermal oil, steam, far infrared heating available)
    Head type Standard Flat cover type(Ellipsoidal flange, Conical type available)
    Impeller type (Optional) Propeller, paddle, anchor, spiral, turbine, gas inducing type, etc
    Cooling type (Optional) Spiral cooling cools with cooling water
    Discharging type (Optional) Discharging from bottom or above.

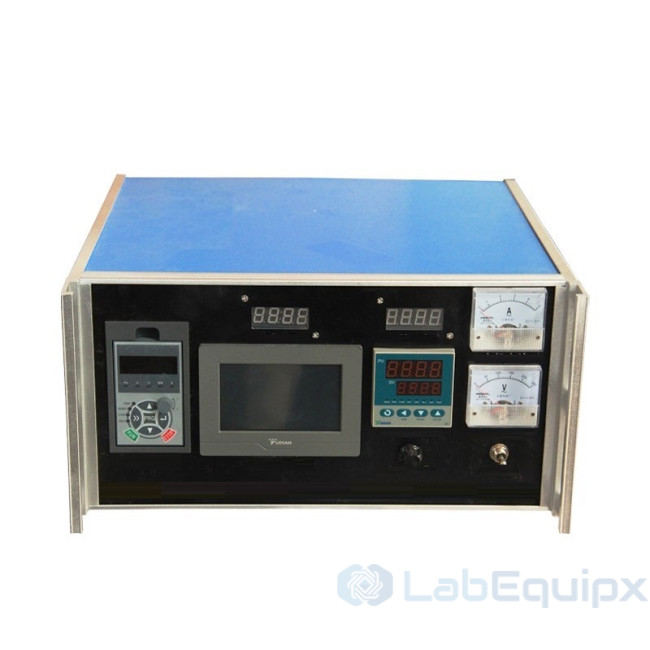

    Control panel PID temperature display and control, accuracy±1 ℃;stirring speed display;
    Operation time display; Heating voltage and current display
    Opening port of head (Optional)Pressure gauge, Safety valve port; Temp. measuring port;
    Gas and liquid port; Dip tube; Vent port; Solid charging port;
    Cooling coil inlet and outler port

    Note

    • The above standard parameters are for reference only. Different processe have their own reasonable selection, not the more complete the function, the better.
    • The structure, specification, nozzle size and orientation need to be confrimed after communicating with us.

    Product details

    Structure drawings
