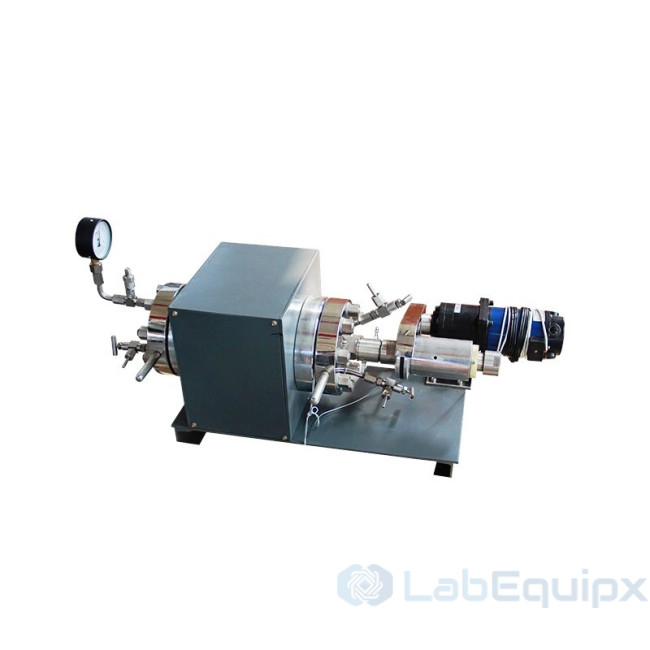

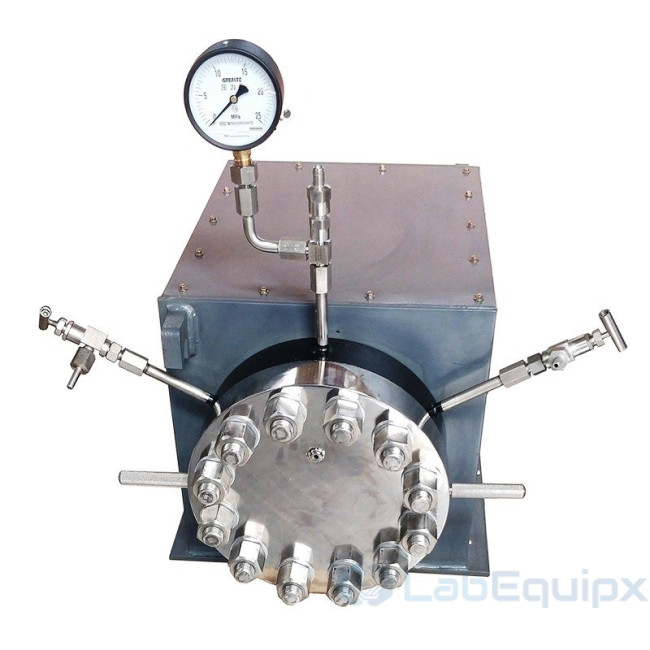

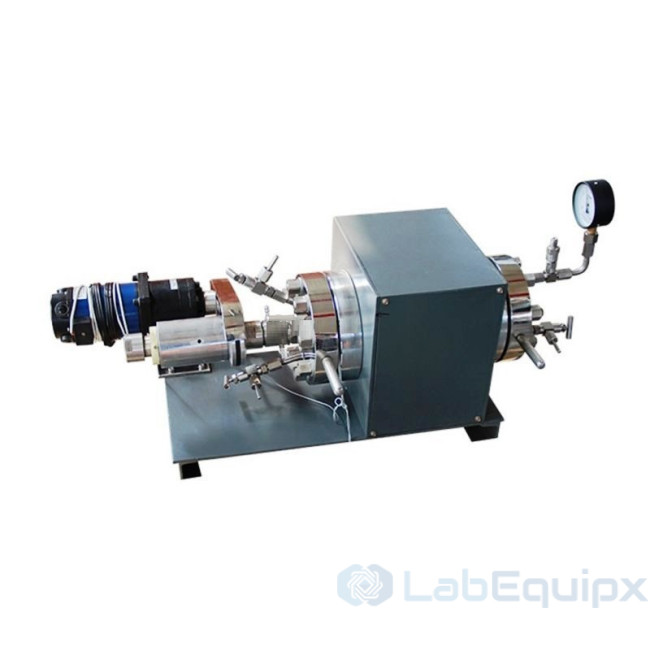

Magnetic Coupling Drive Stirred Pressure Reactor

  • The LEMCDSHPR is a stirred pressure reactor whose stirrer is turned through a magnetic coupling drive, offered in 0.5 to 5 L. It is intended for stirred laboratory processes under elevated pressure and temperature.

    Design

    All sizes are rated 10 MPa working pressure and 350 ℃ working temperature. The magnetic coupling transmits the motor torque through a closed wall, so the shaft has no packed gland. Stirring speed is 0 to 1500 r/min with propeller, paddle, anchor or custom stirrers. The motor is 0.15 kW on the 0.5 L vessel, 0.2 kW on the 1 to 3 L vessels and 0.6 kW on the 5 L vessel.

    Heating is general electric heating from 1 kW to 4 kW. Cooling is by internal spiral coils. Charging is from above. The vessel is made of SS304 or SS316. The control panel displays temperature, time and heating voltage, controls temperature to ±1 ℃, and displays and sets stirring speed.

    What is included

    • Pressure gauge, thermocouple, internal stirring system
    • Liquid inlet and gas inlet with needle valves, gas release valve
    • Dip tube, safety rupture disc, cooling coil

    Specify for your project

    • Nominal capacity: 0.5, 1, 2, 3 or 5 L
    • Material: SS304 or SS316
    • Stirrer type
    • Process medium and temperature profile
    ModelCapacity (L)Motor (kW)Heating (kW)
    LEMCDSHPR-0.50.50.151
    LEMCDSHPR-110.22
    LEMCDSHPR-220.22
    LEMCDSHPR-330.23
    LEMCDSHPR-550.64

    This description defines the product family. Guaranteed performance, included hardware, exclusions, interfaces and acceptance criteria are stated only in the project-specific technical proposal and approved datasheet.

    • Magnetic Coupling Drive Stirred Pressure Reactor
    • Magnetic Coupling Drive Stirred Pressure Reactor
    • Magnetic Coupling Drive Stirred Pressure Reactor
    • Magnetic Coupling Drive Stirred Pressure Reactor
  • Product paramenters

    Model No.LEMCDSHPR-0.5LEMCDSHPR-1LEMCDSHPR-2LEMCDSHPR-3LEMCDSHPR-5
    Nominal Capacity (L)0.51235
    Working Pressure (MPa)1010101010
    Working Temperature (℃)350350350350350
    Stirring Speed (r/min)0-15000-15000-15000-15000-1500
    Motor power (kW)0.150.20.20.20.6
    Heating Power (kW)12234
    MaterialSS304 or SS316
    Heating MethodGeneral electric heating
    Cooling MethodInternal spiral coils
    Charging MethodCharging from above
    Stirring typePropeller, paddle type, anchor type or customized
    Control panelTemperature, time and heating voltage display
    Temperature adjustment control, accuracy±1 ℃
    Stirring speed display and control
    Standard fittingsPressure Gage; Thermocouple; Internal Stirring System
    Liquid inlet and gas inlet with needle valve;Gas Release Valve
    Dip Tube; Safety Rupture Disc; Cooling Coil
