Lined Lab Pressure Reactor with Lifting Lowering functions

  • The LEPTFE is a PTFE lined laboratory pressure reactor with a lifting device. The PTFE lining resists acids, alkalis and organic solvents, and the lift raises the head so the liner and vessel are easy to reach for loading and cleaning. Sizes run from 0.5 L to 5 L, on a floor stand or moveable cart.

    Design

    Working pressure is 10 MPa and working temperature is 200 ℃ as listed in the model table. Lifting is by manual operation. A low to high torque magnetic coupling drives the stirrer as a static seal, with no rotating shaft seal. Stirring speed is 0-1500 r/min. Electric heating is standard, with water recycling or thermal oil heating available. A spiral coil cools the vessel; single or serpentine coils are available. The reactor is charged from above, and a rupture disc on the safety port protects against overpressure.

    • Stirrer: propeller, paddle, anchor or customized
    • Control panel: temperature, time and heating voltage display, temperature control accuracy ±1 ℃, stirring speed display and control
    • Monitoring of temperature, pressure, motor speed, gas / liquid flow and level
    • Standard fittings: pressure gauge, thermocouple, liquid and gas inlets with needle valves, gas release valve, dip tube, safety rupture disc, cooling coil
    • External condenser for distillation and vapor collection, on request
    ModelNominal capacity (L)Motor power (kW)Heating power (kW)
    LEPTFE-0.50.50.151
    LEPTFE-110.22
    LEPTFE-220.22
    LEPTFE-330.23
    LEPTFE-550.64

    Specify for your project

    • Nominal capacity, 0.5 to 5 L
    • Process media, for lining selection
    • Pressure and temperature, up to 10 MPa and 200 ℃
    • Body material: SS304, SS316, Titanium, Nickel, Hastelloy B/C, Monel, Zirconium, Inconel or Tantalum
    • Floor stand or moveable cart

    This description defines the product family. Guaranteed performance, included hardware, exclusions, interfaces and acceptance criteria are stated only in the project-specific technical proposal and approved datasheet.

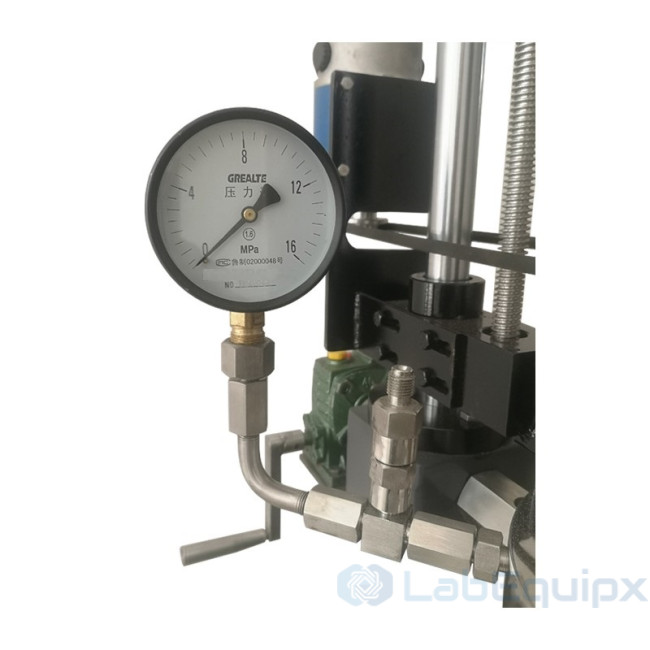

    • Lined Lab Pressure Reactor with Lifting Lowering functions

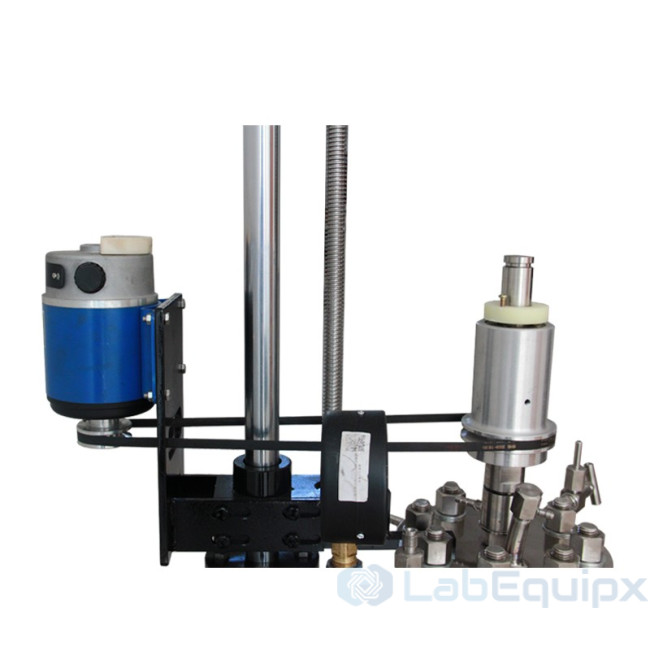

    • Lined Lab Pressure Reactor with Lifting Lowering functions

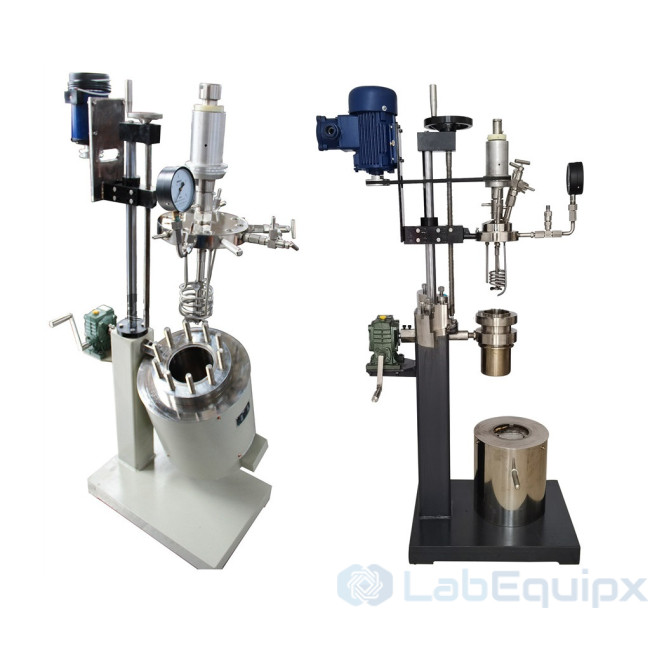

    • Lined Lab Pressure Reactor with Lifting Lowering functions

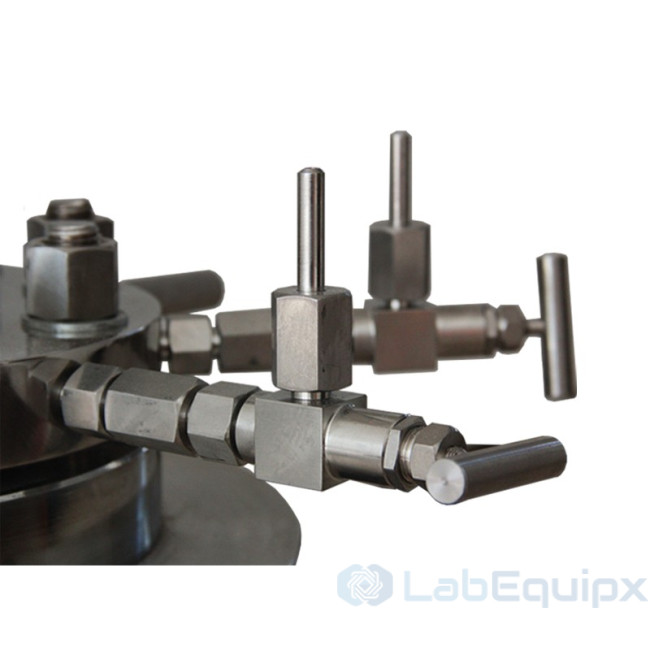

    • Lined Lab Pressure Reactor with Lifting Lowering functions

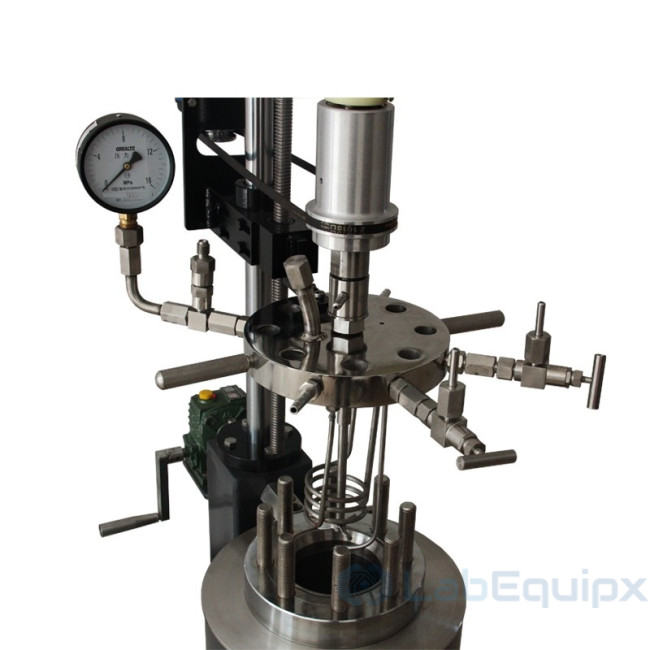

    • Lined Lab Pressure Reactor with Lifting Lowering functions
    • Lined Lab Pressure Reactor with Lifting Lowering functions
    • Lined Lab Pressure Reactor with Lifting Lowering functions
    • Lined Lab Pressure Reactor with Lifting Lowering functions
  • Product features

    • Floor stands or moveable cart type.
    • Laboratory autoclaves with 500 ml to 5 liters volume.
    • Working pressure: 10 MPa; Max temperature up to 200 ℃
    • Low to high torque magnetic couplings: static seal with no leakage.
    • Available material:SS304, SS316, Titanium, Nickel, Hastelloy B/C, Monel, Zirconium, Inconel, Tantalum.
    • Lifting device for easy operation,low labor cost.
    • Monitor and control: Temperature, pressure, motor speed, gas / liquid flow, level, etc
    • Safety Device (Blasting Disc) on Security Blasting Port.
    • Customized according to customers requirement.

    Specifications

    Model No. LEPTFE-0.5 LEPTFE-1 LEPTFE-2 LEPTFE-3 LEPTFE-5
    Nominal Capacity (L) 0.5 1 2 3 5
    Working Pressure (MPa) 10 10 10 10 10
    Working Temperature(℃) 200 200 200 200 200
    Stirring Speed (r/min) 0-1500 0-1500 0-1500 0-1500 0-1500
    Motor power (kW) 0.15 0.2 0.2 0.2 0.6
    Heating Power (kW) 1 2 2 3 4
    Heating Method General electric heating(water recycling, thermal oil heating available)
    Cooling Method Spiral coils(Single coils, serpentine coils available)
    Charging Method Charging from above
    Lifting type Mannual operation
    Stirring type Propeller, paddle type, anchor type or customized
    Control panel Temperature, time and heating voltage display
    Temperature adjustment control, accuracy±1 ℃
    Stirring speed display and control
    Standard fittings Pressure Gage; Thermocouple; Internal Stirring System
    Liquid inlet and gas inlet with needle valve;Gas Release Valve
    Dip Tube; Safety Rupture Disc; Cooling Coil

    Product details

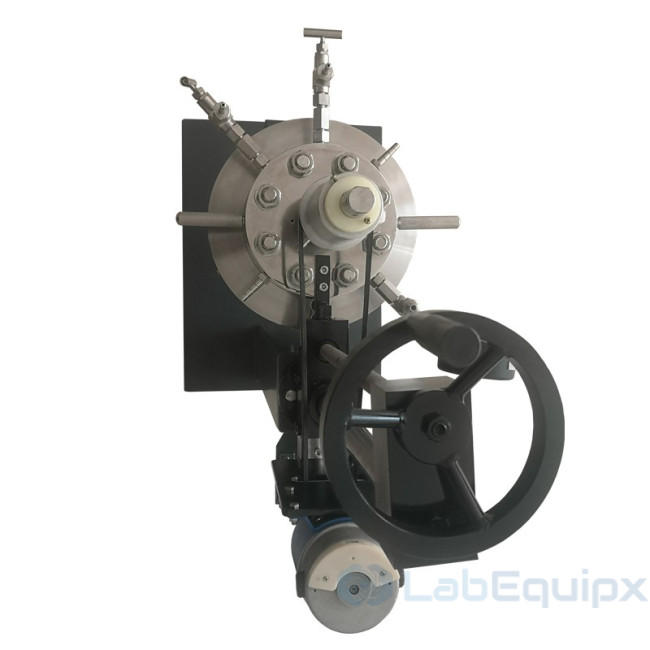

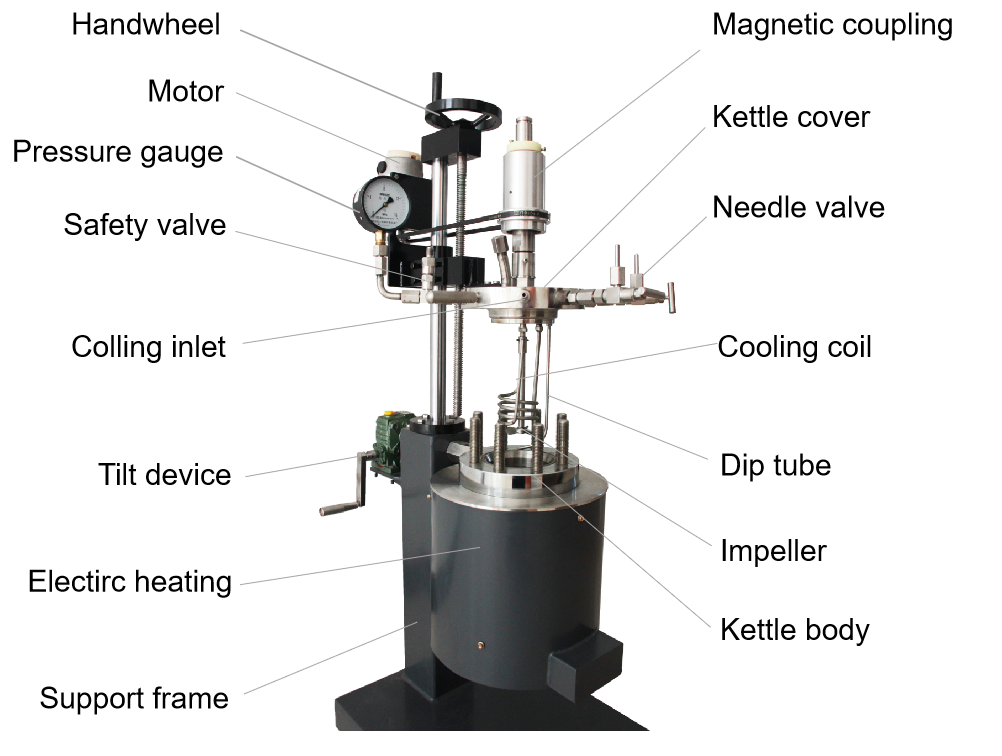

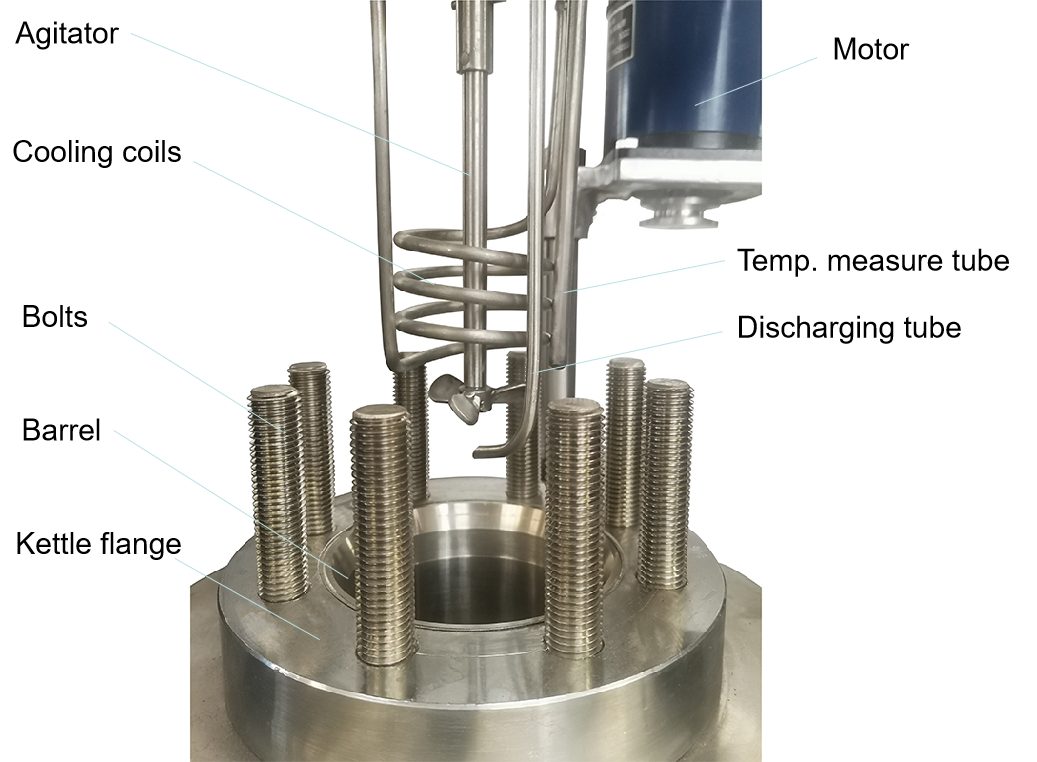

    Structure drawings

    Lined Lab Pressure Reactor with Lifting Lowering functions

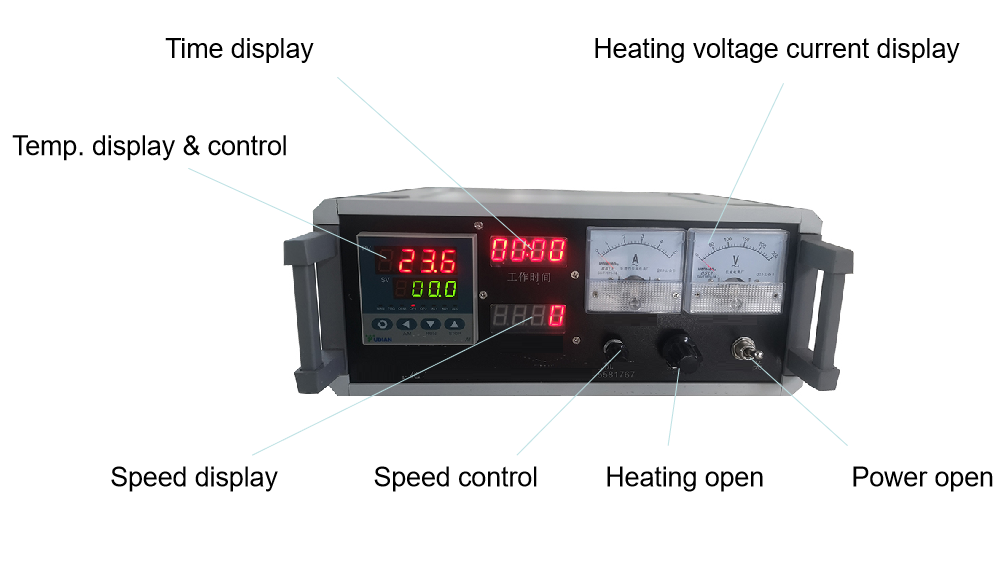

    Control system
