Laboratory Scale Catalytic Hydrogenation Reactor

  • Laboratory Scale Catalytic Hydrogenation Reactor LELSCHR - this series lab high pressure reactor is a lab stirring device, which is applied in hydrogenation. This kinds of reactor can fulfilling the reaction of gas and liquid or other mixing mission under high temperature and high pressure

    Magnetic coupling seal ensures no leakage in the reactor, which is especially suitable for the application of gas-liquid two-phase and hydrogenation application.

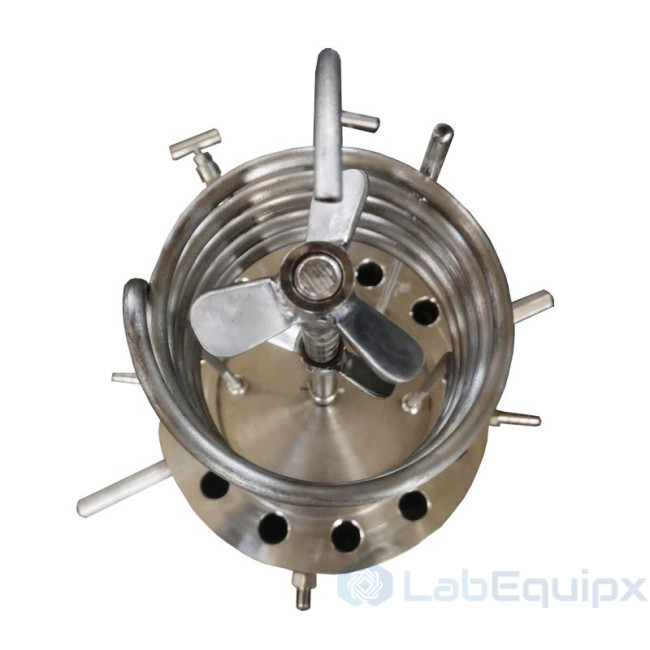

    Hydrogen is sprayed out through the bottom tube or gas distributor. Under the stirring effect of the stirring paddle, the full diffusion and crushing of the gas in the liquid can be realized, so as to achieve the reaction and mixing.

    Models: LELSCHR, LELSCHR-0.5, LELSCHR-1, LELSCHR-2, LELSCHR-3, LELSCHR-5

    • Laboratory Scale Catalytic Hydrogenation Reactor
    • Laboratory Scale Catalytic Hydrogenation Reactor
    • Laboratory Scale Catalytic Hydrogenation Reactor
    • Laboratory Scale Catalytic Hydrogenation Reactor
  • Product features

    • Floor stands or moveable cart type.
    • Laboratory autoclaves with 500 ml to 5 liters volume.
    • Max pressure: 300 bar; Max temperature up to 500 ℃
    • Low to high torque magnetic couplings: static seal with no leakage.
    • Magnetic couplings and motor are driven by belt.
    • Available material:SS304, SS316, Titanium, Nickel, Hastelloy B/C, Monel, Zirconium, Inconel, Tantalum.
    • Hydrogen is sprayed out through the bottom tube or gas distributor.
    • Monitor and control: Temperature, pressure, motor speed, gas / liquid flow, level, etc
    • Safety Device (Blasting Disc) on Security Blasting Port.
    • Customized according to customers requirement.

    Specifications

    Model No. LELSCHR-0.5 LELSCHR-1 LELSCHR-2 LELSCHR-3 LELSCHR-5
    Nominal Capacity (L) 0.5 1 2 3 5
    Working Pressure (MPa) 10 10 10 10 10
    Working Temperature(℃) 350 350 350 350 350
    Stirring Speed (r/min) 0-1500 0-1500 0-1500 0-1500 0-1500
    Motor power (kW) 0.15 0.2 0.2 0.2 0.6
    Heating Power (kW) 1 2 2 3 4
    Heating Method General electric heating(Thermal oil heating available) General electric heating(Thermal oil heating available) General electric heating(Thermal oil heating available) General electric heating(Thermal oil heating available) General electric heating(Thermal oil heating available)
    Cooling Method Spiral coils Spiral coils Spiral coils Spiral coils Spiral coils
    Charging Method Charging from above by pressure difference Charging from above by pressure difference Charging from above by pressure difference Charging from above by pressure difference Charging from above by pressure difference
    Stirring type Propeller, paddle type or customized Propeller, paddle type or customized Propeller, paddle type or customized Propeller, paddle type or customized Propeller, paddle type or customized
    Control panel Temperature, time and heating voltage display; Temperature adjustment control, accuracy±1 ℃; Stirring speed display and control Temperature, time and heating voltage display; Temperature adjustment control, accuracy±1 ℃; Stirring speed display and control Temperature, time and heating voltage display; Temperature adjustment control, accuracy±1 ℃; Stirring speed display and control Temperature, time and heating voltage display; Temperature adjustment control, accuracy±1 ℃; Stirring speed display and control Temperature, time and heating voltage display; Temperature adjustment control, accuracy±1 ℃; Stirring speed display and control
    Standard fittings Pressure Gage; Thermocouple; Internal Stirring System; Liquid inlet and gas inlet with needle valve;Gas Release Valve; Dip Tube; Safety Rupture Disc; Cooling Coil Pressure Gage; Thermocouple; Internal Stirring System; Liquid inlet and gas inlet with needle valve;Gas Release Valve; Dip Tube; Safety Rupture Disc; Cooling Coil Pressure Gage; Thermocouple; Internal Stirring System; Liquid inlet and gas inlet with needle valve;Gas Release Valve; Dip Tube; Safety Rupture Disc; Cooling Coil Pressure Gage; Thermocouple; Internal Stirring System; Liquid inlet and gas inlet with needle valve;Gas Release Valve; Dip Tube; Safety Rupture Disc; Cooling Coil Pressure Gage; Thermocouple; Internal Stirring System; Liquid inlet and gas inlet with needle valve;Gas Release Valve; Dip Tube; Safety Rupture Disc; Cooling Coil

    Product details

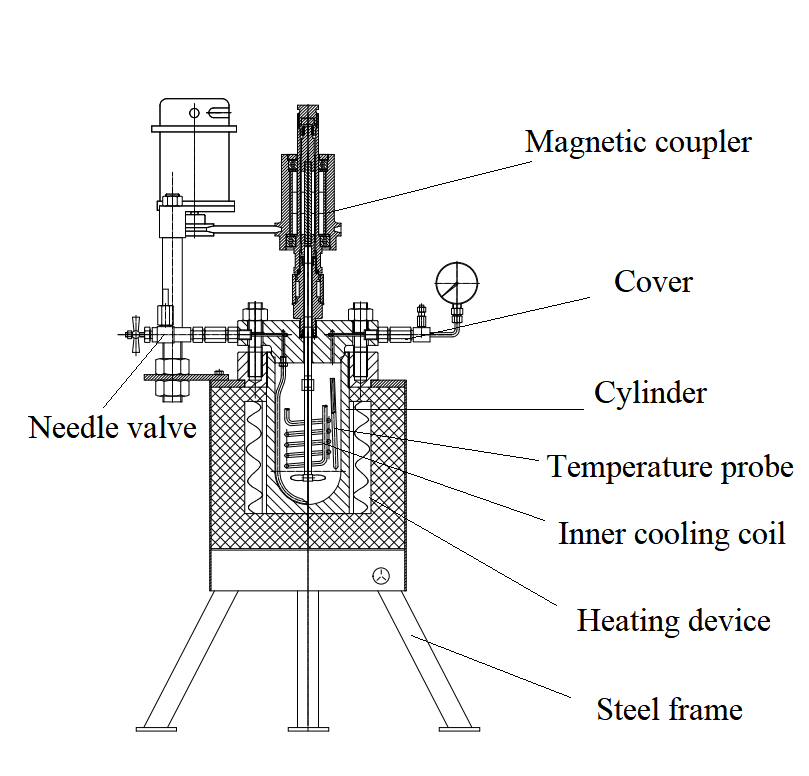

    Structure drawings

    Laboratory Scale Catalytic Hydrogenation Reactor

    Magnetic couplings

    Laboratory Scale Catalytic Hydrogenation Reactor

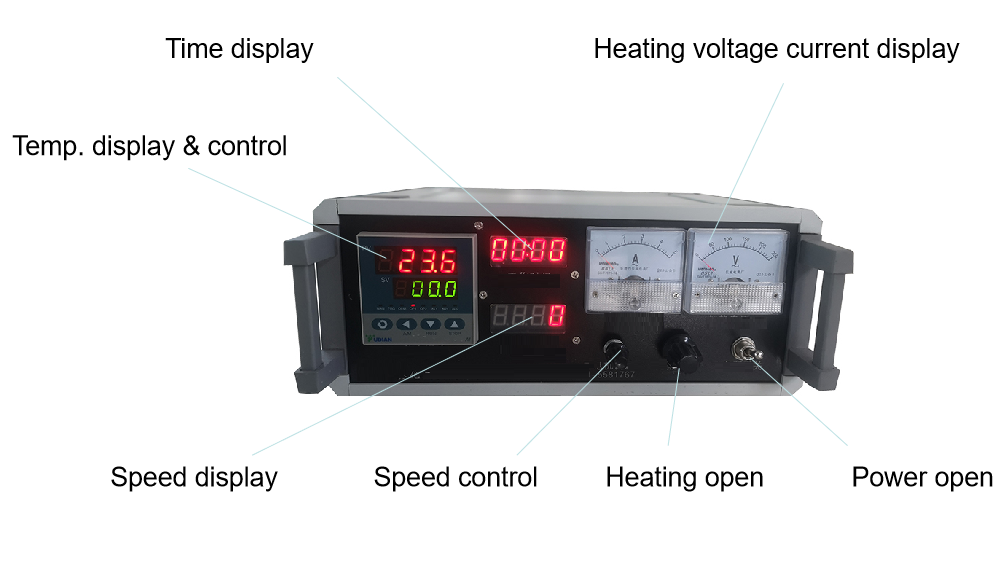

    Control system

    Laboratory Scale Catalytic Hydrogenation Reactor

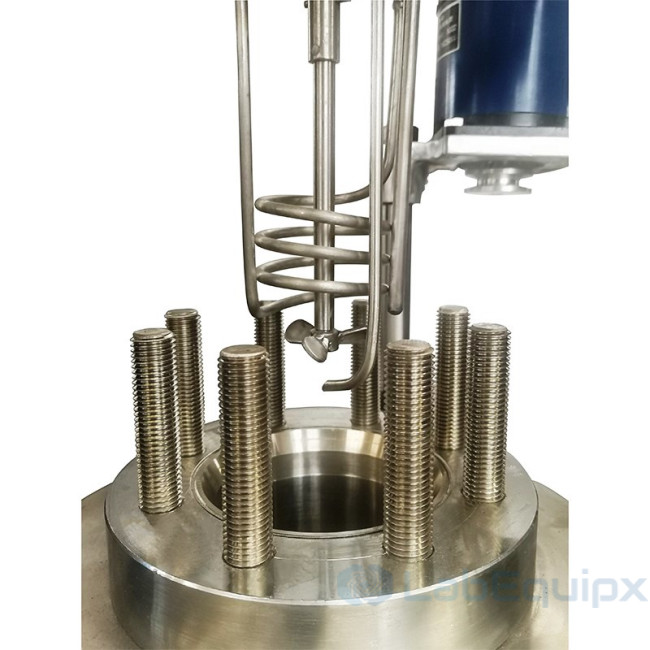

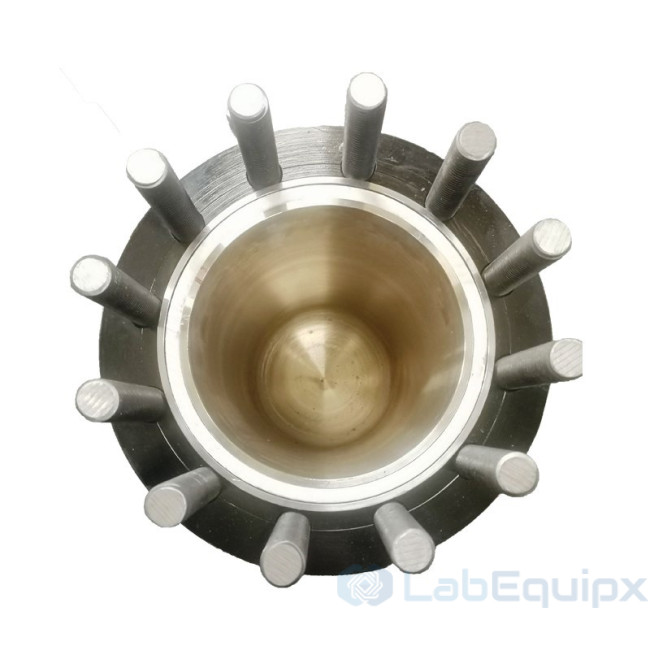

    Internal components

    Laboratory Scale Catalytic Hydrogenation Reactor
