Lab Scale Direct Drive Magnetic Reactor

  • In the LELSDDMR the motor drives the magnetic coupling directly, with no belt in between. This lab scale direct drive magnetic reactor is built for laboratory research and small production at 0.5 L to 5 L. Low to high torque magnetic drives cover process media from low to high viscosity.

    Design

    The magnetic coupling is a static seal: no rotating shaft passes to the atmosphere, so there is no packed gland to leak. Working pressure is 10 MPa and working temperature 350 ℃ for the standard models. Stirring speed is 0-1500 r/min. Electric heating is standard, with water recycling or thermal oil heating available. A spiral coil cools the vessel; single or serpentine coils are available. A rupture disc sits on the safety port.

    • Charging from above
    • Stirrer: propeller, paddle, anchor or customized
    • Control panel: temperature, time and heating voltage display, temperature control accuracy ±1 ℃, stirring speed display and control
    • Monitoring of temperature, pressure, motor speed, gas / liquid flow and level
    • Standard fittings: pressure gauge, thermocouple, liquid and gas inlets with needle valves, gas release valve, dip tube, safety rupture disc, cooling coil
    • Condensers for vapor escape and distillation, on request
    ModelNominal capacity (L)Motor power (kW)Heating power (kW)
    LELSDDMR-0.50.50.151
    LELSDDMR-110.22
    LELSDDMR-220.22
    LELSDDMR-330.23
    LELSDDMR-550.64

    Specify for your project

    • Nominal capacity, 0.5 to 5 L
    • Viscosity of the process media, for coupling torque
    • Pressure and temperature
    • Material: SS304, SS316, Titanium, Nickel, Hastelloy B/C, Monel, Zirconium, Inconel or Tantalum
    • Floor stand or moveable cart

    This description defines the product family. Guaranteed performance, included hardware, exclusions, interfaces and acceptance criteria are stated only in the project-specific technical proposal and approved datasheet.

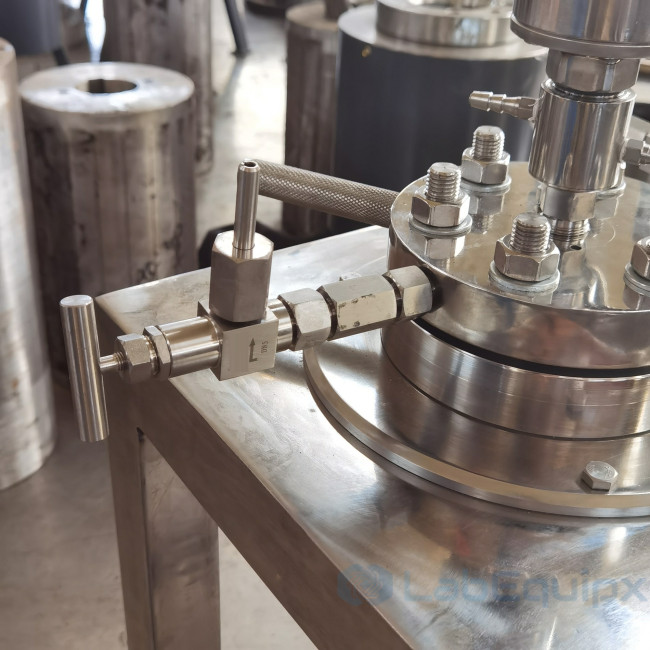

    • Lab Scale Direct Drive Magnetic Reactor

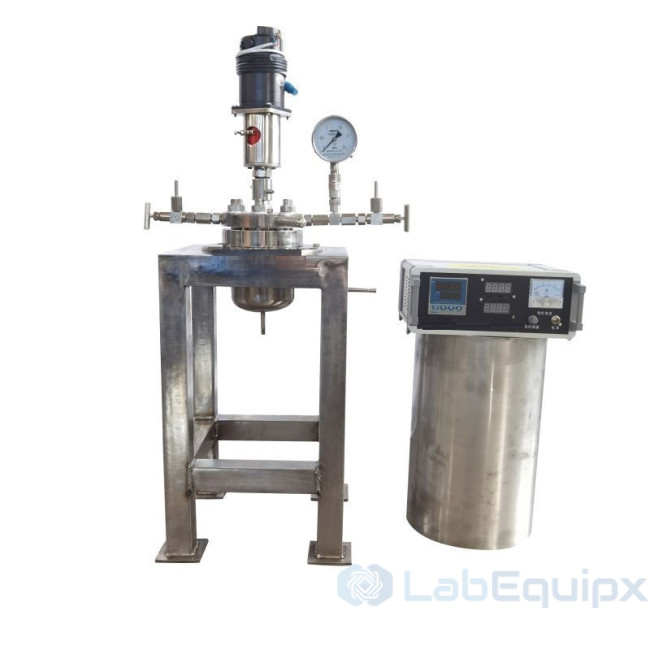

    • Lab Scale Direct Drive Magnetic Reactor

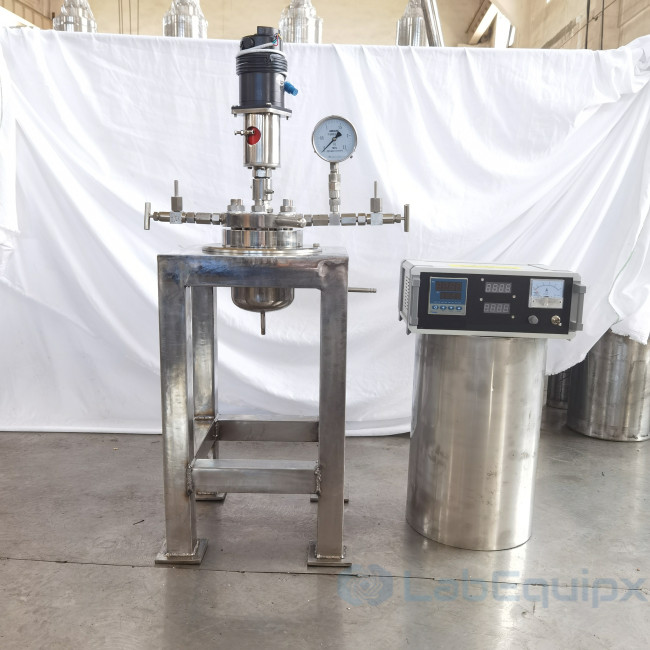

    • Lab Scale Direct Drive Magnetic Reactor
  • Product features

    • Floor stands or moveable cart type.
    • Laboratory autoclaves with 500 ml to 5 liters volume.
    • Working pressure: 10 MPa; Working temperature: 350 ℃.
    • Low to high torque magnetic couplings: static seal with no leakage.
    • Direct drive type between magnetic couplings and motor.
    • Available material:SS304, SS316, Titanium, Nickel, Hastelloy B/C, Monel, Zirconium, Inconel, Tantalum
    • Smooth run, beautiful appearence, low noise and easy operation.
    • Monitor and control: Temperature, pressure, motor speed, gas / liquid flow, level, etc
    • Safety Device (Blasting Disc) on Security Blasting Port.
    • Customized according to customers requirement.

    Standard specifications

    Item LELSDDMR-0.5 LELSDDMR-1 LELSDDMR-2 LELSDDMR-3 LELSDDMR-5
    Nominal Capacity (L) 0.5 1 2 3 5
    Working Pressure (MPa) 10 10 10 10 10
    Working Temperature(℃) 350 350 350 350 350
    Stirring Speed (r/min) 0-1500 0-1500 0-1500 0-1500 0-1500
    Motor power (kW) 0.15 0.2 0.2 0.2 0.6
    Heating Power (kW) 1 2 2 3 4
    Heating Method General electric heating(water recycling, thermal oil heating available)
    Cooling Method Spiral coils(Single coils, serpentine coils available)
    Charging Method Charging from above
    Stirring type Propeller, paddle type, anchor type or customized
    Control panel Temperature, time and heating voltage display
    Temperature adjustment control, accuracy±1 ℃
    Stirring speed display and control
    Standard fittings Pressure Gage; Thermocouple; Internal Stirring System
    Liquid inlet and gas inlet with needle valve;Gas Release Valve
    Dip Tube; Safety Rupture Disc; Cooling Coil

    Product details

    Structure drawings

    Lab Scale Direct Drive Magnetic Reactor

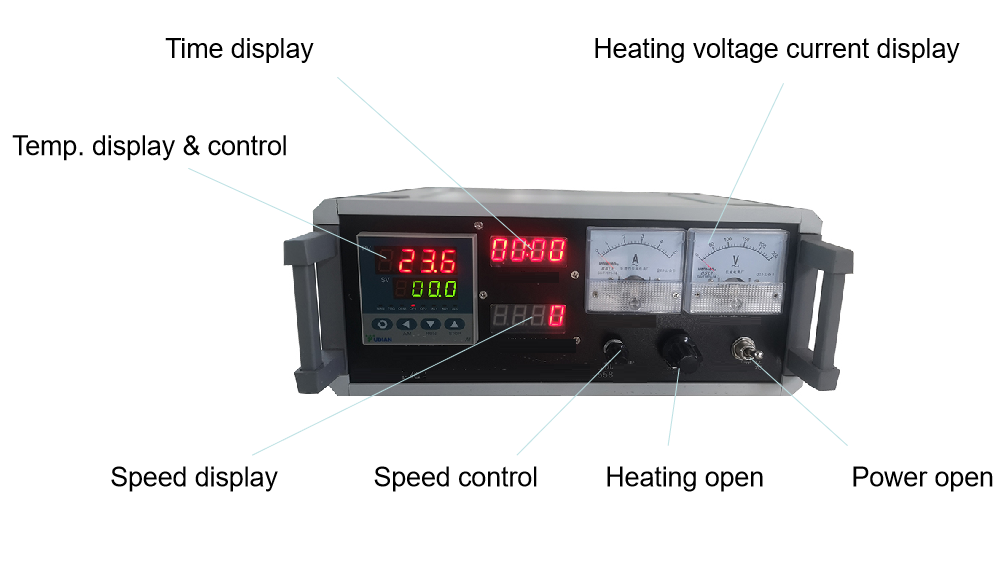

    Control system
