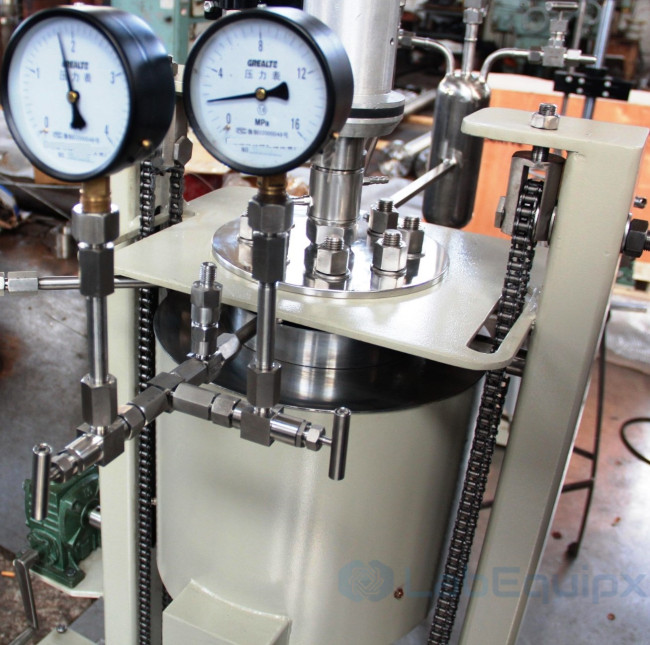

Lab Pressure Reactor with Vessel Body Lift & Tilt

  • Lab Pressure Reactor with Vessel Body Lift & Tilt LELPRVBLT - small laboratory analysis lab reactor with vessel movable and tilt is widely used for various chemical reaction in laboratory, under high pressure, high vacuum and high temperature condition. And Sometimes can be equipped with condensers for vapor escape and distillation process.

    Application:

    • Rearch/Lab, High pressure, high vacuum, high temperature condition.
    • Chemical/Pharmaceutical, Syntheses, Reactor systems, Low temperature reactions.
    • Lab Pressure Reactor with Vessel Body Lift & Tilt
    • Lab Pressure Reactor with Vessel Body Lift & Tilt
    • Lab Pressure Reactor with Vessel Body Lift & Tilt
    • Lab Pressure Reactor with Vessel Body Lift & Tilt
  • Features:

    • 100ml/ 250ml/500ml/1liters/2liters/5liters
    • Standard 100bar,Up to 350bar
    • Standard 350℃,up to 500℃
    • Material:SS304/SS316, titanium,hastelloy,PTFE liner.
    • Lifting high pressure reactors
    • Quick open design(split clamp with clamp bolts)
    • Floor stand or moveable cart design
    • Direct drive or belt drive optional
    • Reactor lift / lowering / Tilting device.
    • Magnetic and mechanical seal.
    • Vacuum pump, Heating & cooling circulator, PLC control and others.
    • Heating type: Electric Heating

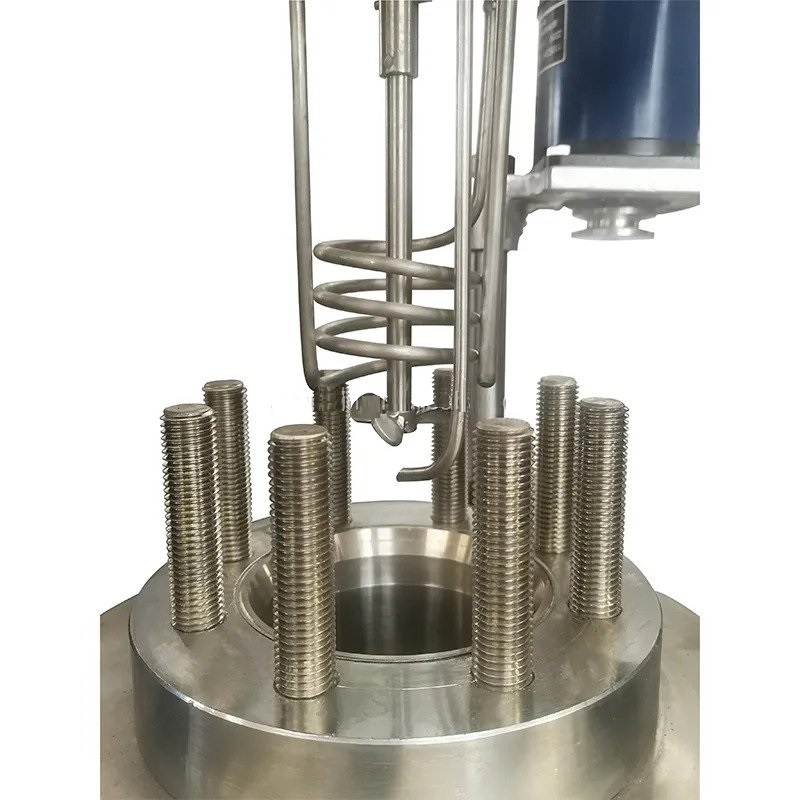

    • Cooling type: Internal spiral coils
    • Various impeller type available for mixing mission.

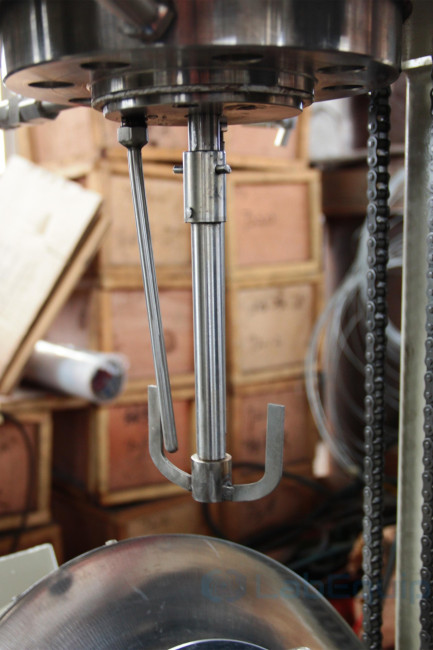

    • Impeller type: Propeller, Turbine, Anchor type
    • Various Anti-corrosion alloy material available.
    Lab Pressure Reactor with Vessel Body Lift & Tilt

    Internal drawings

    Lab Pressure Reactor with Vessel Body Lift & Tilt

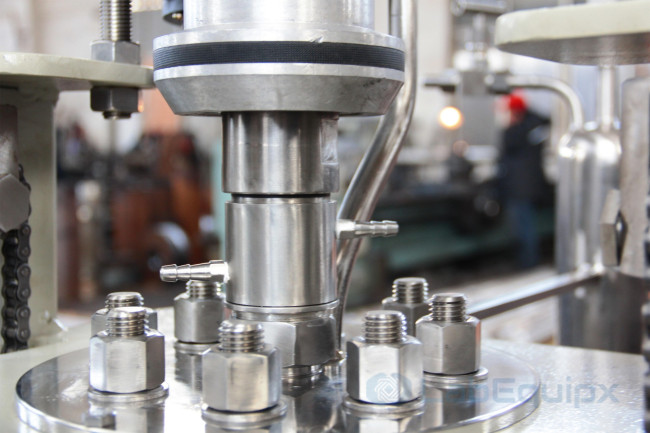

    Magnetic Stirrer

    • 100% Sealing. Zero leakage.
    • Zero emission of hazardous fluids.
    • Suitable for pressure fluctuations.
    • Various capacities available.
    • Compact Design.
    Lab Pressure Reactor with Vessel Body Lift & Tilt

    Control system

    Intelligent digital temperature control with the temperature, stirring speed display & control and working time display.
