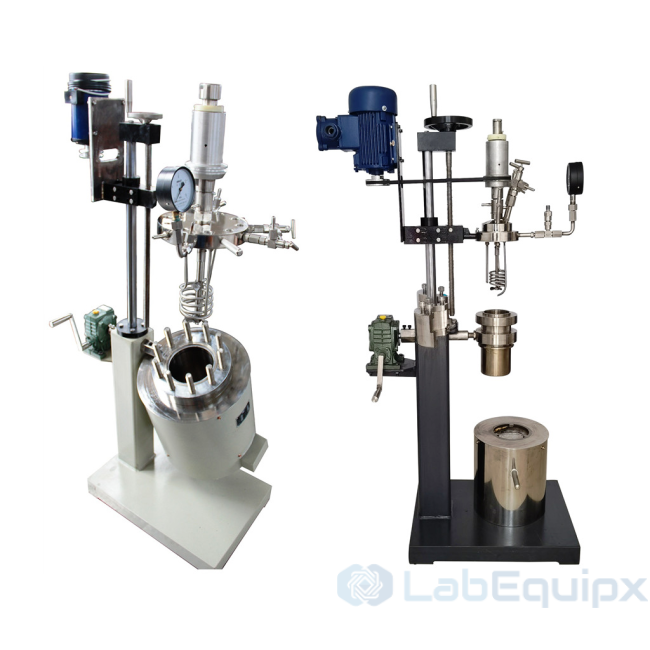

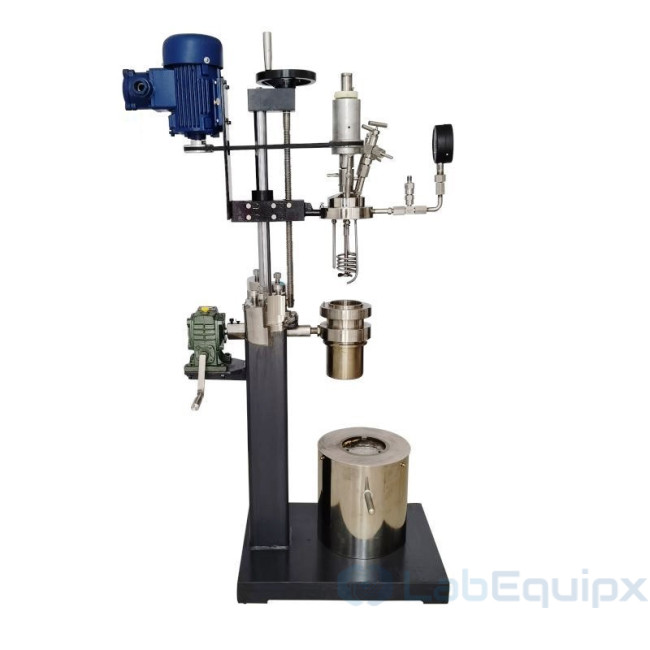

Lab Agitated Pressure Hydrogenation Reactor with Manual Lifting

  • Lab Agitated Pressure Hydrogenation Reactor with Manual Lifting LELAPHRML - is a high pressure autoclave with removable head and vessel. Because of the convenience and portable it brings, this reactor can widely used for various test and reaction in laboratory, under high pressure, high vacuum and high temperature condition. Stainless steel made give a good appearance and durable for laboratory test.

    Application:

    • Rearch/Lab
    • High pressure, high vacuum, high temperature condition
    • Chemical/Pharmaceutical
    • Syntheses
    • Reactor systems
    • Low temperature reactions
    • Hydrogenation
    • Lab Agitated Pressure Hydrogenation Reactor with Manual Lifting
    • Lab Agitated Pressure Hydrogenation Reactor with Manual Lifting
    • Lab Agitated Pressure Hydrogenation Reactor with Manual Lifting
    • Lab Agitated Pressure Hydrogenation Reactor with Manual Lifting
  • Features:

    • Movable stirred pressure autoclaves
    • Floor stands or moveable cart type.
    • Laboratory autoclaves with 250 ml to 5 liters volume.
    • Max pressure: 200 bar; Max temperature up to 500 ℃
    • Low to high torque magnetic couplings: static seal with no leakage.
    • Available material:SS304, SS316, Titanium, Nickel, Hastelloy B/C, Monel, Zirconium, Inconel.
    • Lifting and tilting device for easy operation,low labor cost.
    • Moveable head quick openning design.
    • Monitor and control: Temperature, pressure, motor speed, gas / liquid flow, level, etc
    • Safety Device (Blasting Disc) on Security Blasting Port.
    • Customized according to customers requirement.
    • Heating type: Electric Heating
    • Cooling type: Internal spiral coils
    • Impeller type: Propeller, Turbine, Anchor type
    • Lifting and tilting device for easy operation, low labor cost.
    • Moveable head quick openning design.
    • Low to high torque magnetic couplings: static seal with no leakage.

    This reactor can also set the following options:

    • Direct drive or belt drive optional
    • Reactor lift / lowering / Tilting device.
    • Magnetic and mechanical seal.
    • Vacuum pump, Heating & cooling circulator, PLC control and others.
    • Various impeller type available for mixing mission.
    • Various Anti-corrosion alloy material available.
    Lab Agitated Pressure Hydrogenation Reactor with Manual Lifting

    Quick opening

    • Easy operation and low labour cost
    • Quick open and closure
    • Safe and reliable

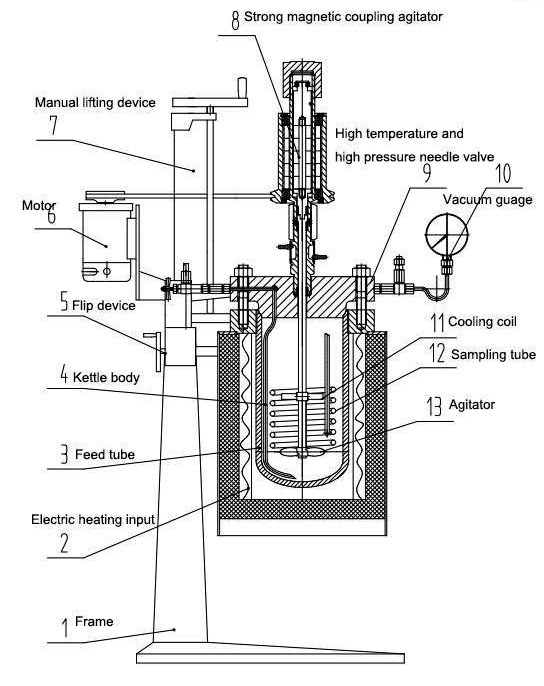

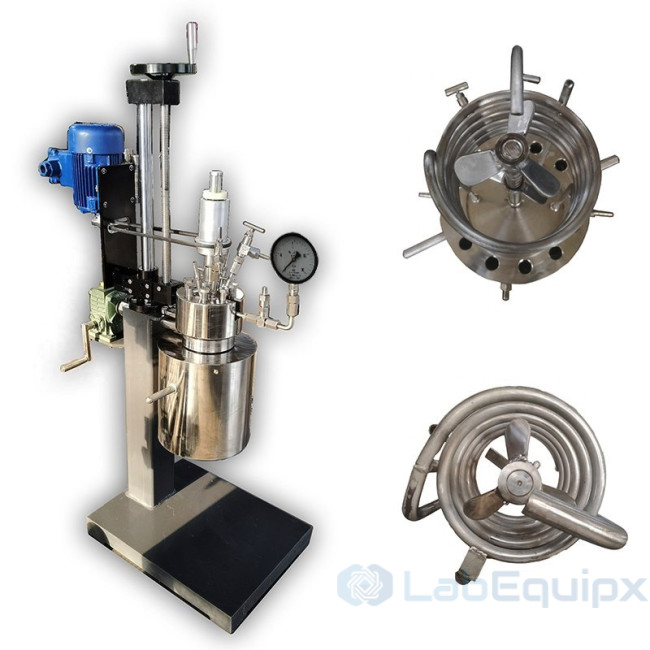

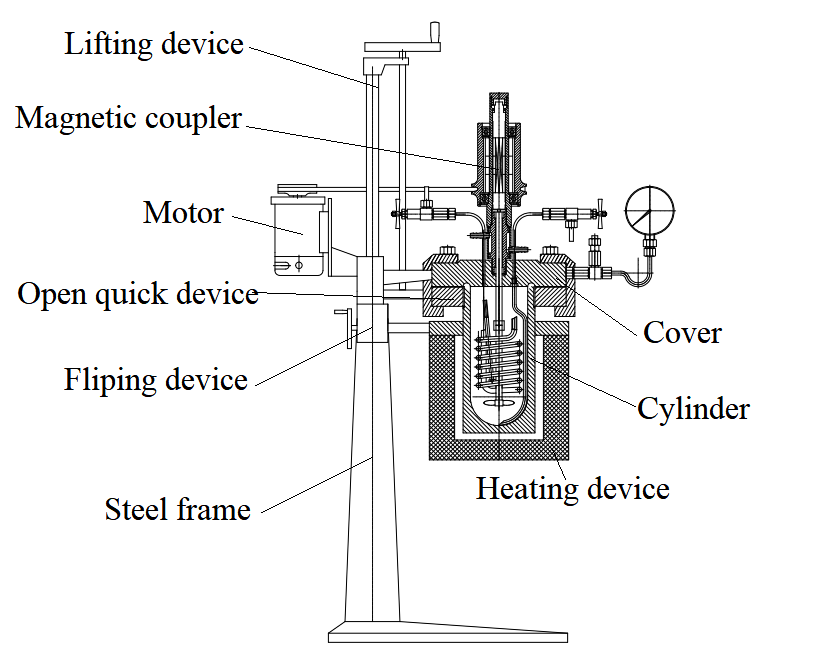

    Internal drawings

    • Internal spiral coils: Quick coolings for material
    • Dip tupe device: Used for up discharging
    • Various impeller available: Propeller, turbine, anchor, others
    Lab Agitated Pressure Hydrogenation Reactor with Manual Lifting
    Lab Agitated Pressure Hydrogenation Reactor with Manual Lifting

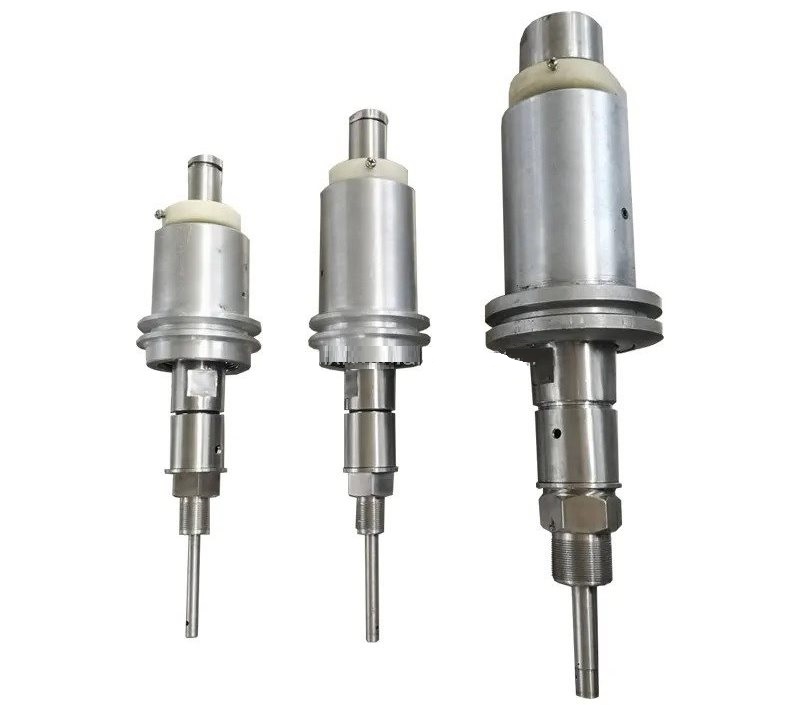

    Magnetic stirrer

    • 100% Sealing. Zero leakage.
    • Zero emission of hazardous fluids.
    • Suitable for pressure fluctuations.
    • Various capacities available.
    • Compact Design.
    Lab Agitated Pressure Hydrogenation Reactor with Manual Lifting

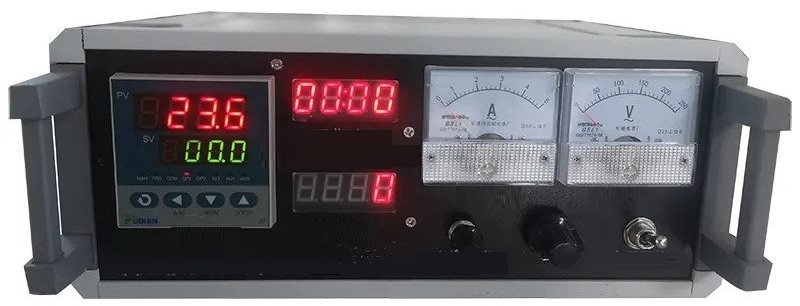

    Control system

    Intelligent digital temperature control with the temperature, stirring speed display & control and working time display

    Lab Agitated Pressure Hydrogenation Reactor with Manual Lifting
