Customizable Lab Scale Autoclave Reactor

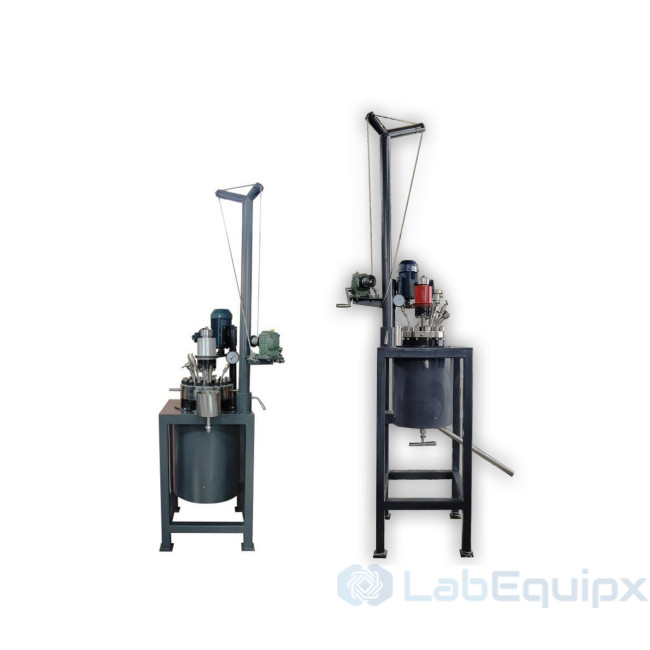

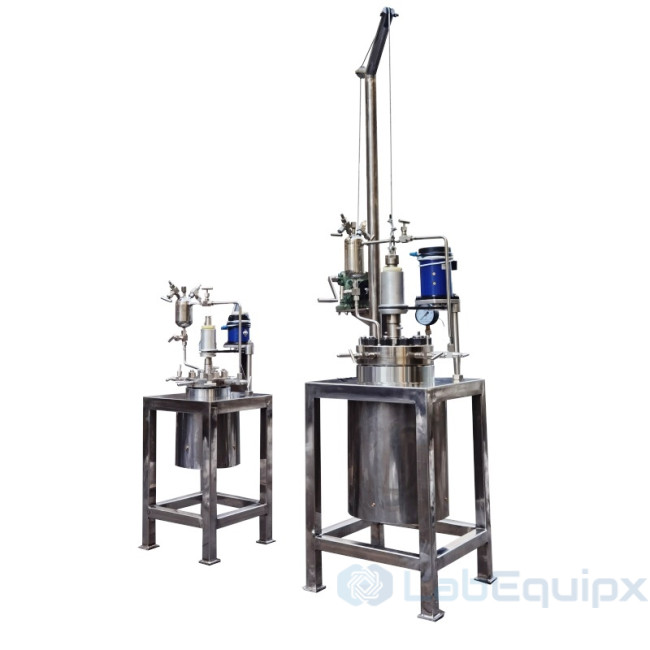

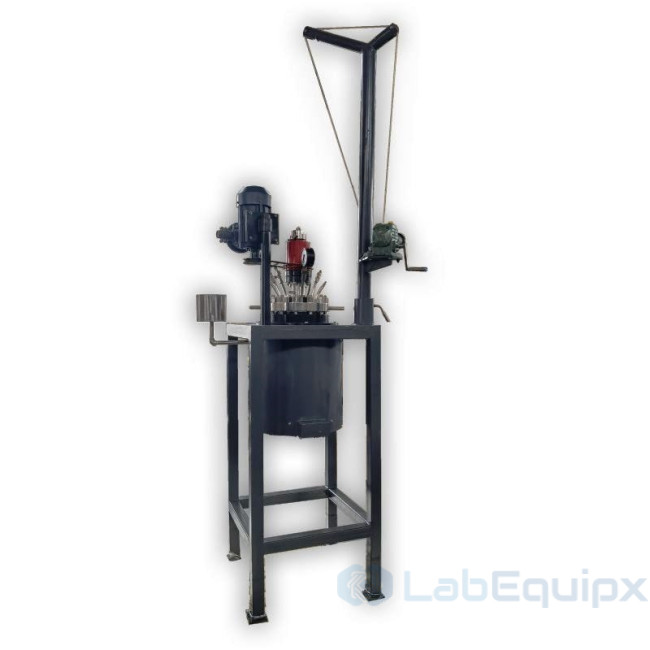

The LECLSAR autoclave is a 10 to 50 L stirred pressure reactor with a manual lifting device for laboratory and pilot experiments. A handwheel raises the crossbar and the vessel cover together, and a handle rotates the vessel body to the discharge position. This gives direct access to the inside of the vessel for cleaning and makes emptying a large vessel a one-person task.
Design

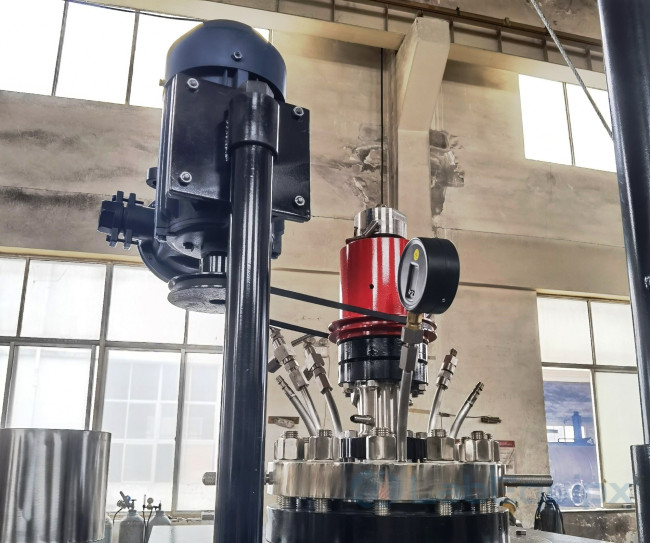

All sizes are rated 30 MPa maximum working pressure and 300 ℃ working temperature. The stirrer is driven by a magnetic drive, so the shaft has no dynamic seal to the atmosphere. Stirring speed is 0 to 750 r/min on the 10 and 20 L vessels and 0 to 450 r/min on the 30 and 50 L vessels, with stepless speed regulation. The stirring paddle form is selected and customized to the process. Discharge is from the top or the bottom.
Heating options are electric heating, water recirculation, thermal oil and far infrared heating. Electric heating power runs from 4 kW on the 10 L vessel to 9 to 15 kW on the 30 and 50 L vessels. The control panel displays and controls temperature to ±1 ℃, displays stirring speed, and holds a constant temperature automatically.

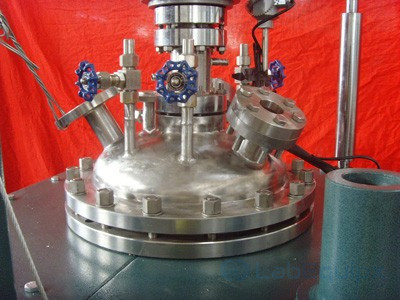

Wetted parts are 304L or 316L stainless steel, with titanium, nickel and Hastelloy as alternatives. A PTFE liner is available.
Typical applications
- Hydrogenation and catalytic reactions
- Polymerization
- Corrosion tests and catalyst tests
- Chemical development
- Scale-up, pilot plant and small-scale production
Specify for your project
- Nominal capacity: 10, 20, 30 or 50 L
- Vessel material: 304L, 316L, titanium, nickel, Hastelloy, or PTFE liner
- Heating method: electric, water, thermal oil or far infrared
- Stirring paddle form for your viscosity and mixing duty
- Top or bottom discharge
Model Capacity (L) Speed (r/min) Motor (kW) Heating (kW) LECLSAR-I0 10 0-750 0.6 4 LECLSAR-20 20 0-750 1.1 9 LECLSAR-30 30 0-450 1.5 9-15 LECLSAR-50 50 0-450 1.5 9-15 This description defines the product family. Guaranteed performance, included hardware, exclusions, interfaces and acceptance criteria are stated only in the project-specific technical proposal and approved datasheet.
Performance feature:
- High sealing performance, Easy operation and clean up, Saving labor cost and working time.
Structural features:
- Magnetic drive rotation;
- Cover can be lifted up and down easily by manual lifting device;
- Upper or down discharge;
- The form of stirring paddle can be selected and customized according to user's requirements.
- 304L, 316L stainless steel, also be choose Titanium, Nickel, Hastelloy, PTFE liner.

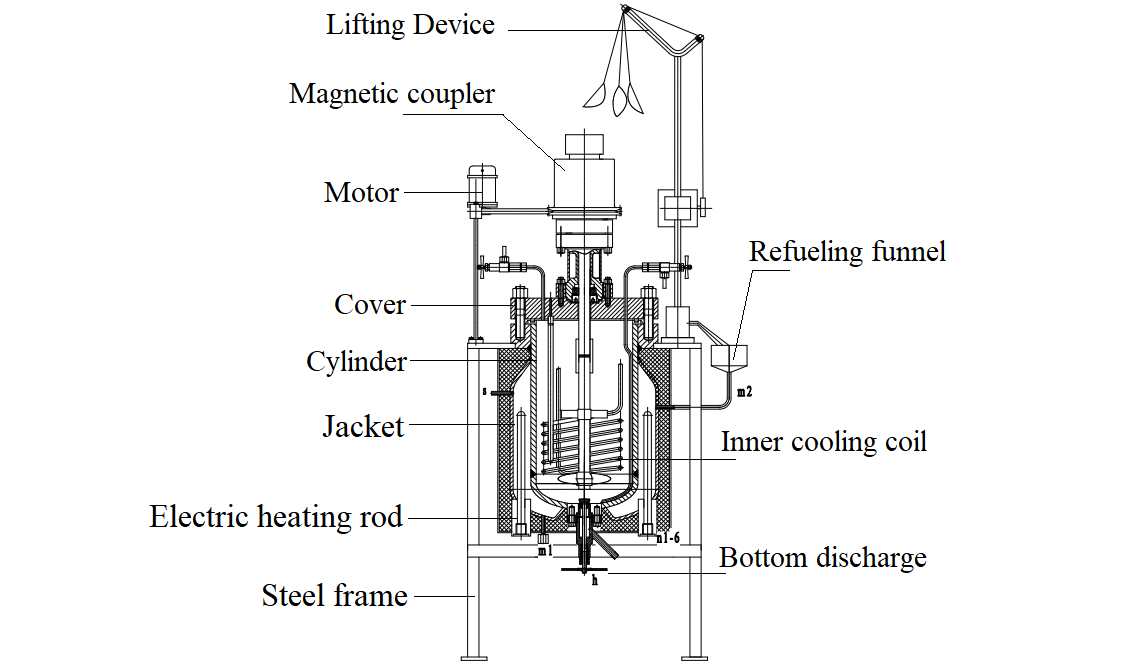

Structural drawing:

Specifications and Technical parameters:
Model No. LECLSAR-I0 LECLSAR-20 LECLSAR-30 LECLSAR-50 Nominal Capacity (L) 10 20 30 50 Max Working Pressure (MPa) 30 30 30 30 Working Temperature ℃ 300 300 300 300 Stirring Speed (r/min) 0-750 0-750 0-450 0-450 Motor Power (KW) 0.6 1.1 1.5 1.5 Heating Power (KW) 4 9 9-15 9-15 Heating Method Electric heating, water recycling, thermal oil, far infrared heating. Control panel Temperature display and control, accuracy±1 ℃;stirring speed display; stepless speed regulation,can realize the goal of automatic constant temperature.
