Bench Top Stirred Laboratory Reactors

  • LEBTMSLR reactors are bench top stirred autoclaves for small volumes, from 50 ml to 1000 ml. They are used as hydrogenation reactors and for precise chemical reactions where temperature, inert gas, pressure, pH, conductivity or redox potential must be followed during the reaction. Small working volumes keep solvent use low. Non-stirred pressure reactors and plain pressure vessels are made in the same family.

    Design

    Standard working pressure is 100 bar. Working temperature is 0 to 350 °C. Heating is electric, from 0.1 to 1 kW on the smallest vessels up to 1 to 2 kW on the 1000 ml vessel. Cooling is through spiral coils, single or serpentine. Charging is from above.

    The PID controller displays temperature, time and heating voltage and controls temperature to ±1 °C. Internal components are laid out to the customer's process: internal cooling coil, agitator and impeller, dip tube, temperature measuring tube and others.

    Wetted materials are SS304, SS316, titanium, nickel, Hastelloy B/C, Monel, zirconium and Inconel. PTFE lined and PPL lined vessels are available for acid service.

    What is included

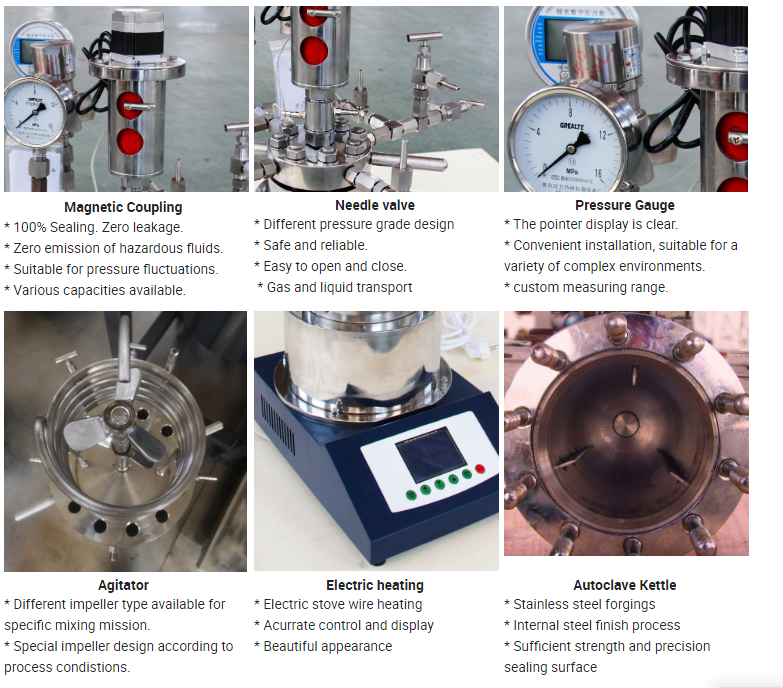

    • Pressure gauge, thermocouple, internal stirring system
    • Liquid inlet and gas inlet with needle valves, gas release valve
    • Dip tube, safety rupture disc, cooling coil

    Specify for your project

    • Volume: 50 to 100 ml, 200 ml, 500 ml or 1000 ml
    • Working pressure and temperature
    • Material, or PTFE / PPL liner for acids
    • Internal components: cooling coil, impeller, dip tube, thermowell
    • Measured variables beyond temperature: pressure, pH, conductivity, redox potential
    ModelVolume (ml)Heating (kW)
    LEBTMSLR-0.05-0.150-1000.1-1
    LEBTMSLR-0.22000.1-1
    LEBTMSLR-0.55000.1-1.5
    LEBTMSLR-110001-2

    This description defines the product family. Guaranteed performance, included hardware, exclusions, interfaces and acceptance criteria are stated only in the project-specific technical proposal and approved datasheet.

    • Bench Top Stirred Laboratory Reactors
  • Product features

    Bench Top Stirred Laboratory Reactors
    • Laboratory autoclaves with 50 ml to 1000 ml volume.
    • Srandard pressure: 100bar; Max temperature up to 350 ℃
    • PTFE lined and PPL lined are available, resistance to acid.
    • High safety, easy operation, use little solvent, nice appearance.
    • Available material:SS304, SS316, Titanium, Nickel, Hastelloy B/C, Monel, Zirconium, Inconel
    • Customized according to customers requirements.
    Bench Top Stirred Laboratory Reactors
    Bench Top Stirred Laboratory Reactors

    Product parameters

    Type LEBTMSLR-0.05-0.1 LEBTMSLR-0.2 LEBTMSLR-0.5 LEBTMSLR-1
    Volume(ml) 50-100ml 200 500 1000
    Working pressure(bar)Standard pressure : 100 bar; Max. pressure up to 300 bar
    Heating power(KW) 0.1-1 0.1-1 0.1-1.5 1-2
    Working temperature(°C)0-350
    Heating typeElectric heating
    Cooling MethodSpiral coils(Single coils, serpentine coils available)
    Charging typeCharging from above
    Controller DevicePID control. Temperature, time and heating voltage display Temperature adjustment control. accuracy ±1°C
    Standard fittingsPressure Gage: Thermocouple; Internal Stirring System Liquid inlet and gas inlet with needle valve;Gas Release Valve Dip Tube; Safety Rupture Disc; Cooling Coil
    Bench Top Stirred Laboratory Reactors
