Rodded Floating Piston Accumulator

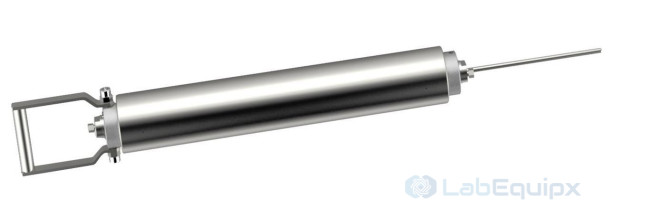

The Rodded Floating Piston Accumulator, model CT-FS-RFPA, stores a test fluid behind a free piston and delivers it to the core holder or PVT cell at pressure. A rod fixed to the piston extends through the end cap, so piston position, and with it the volume transferred, is read from outside the vessel. It is offered in 500 cc and 1,000 cc volumes with pressure ratings of 10,000 psi or 15,000 psi, for service up to 150 °C (300 °F), in stainless steel or Hastelloy.

How it works

The cylinder is divided by the floating piston into a drive side and a sample side. Raising the drive-fluid pressure moves the piston and pushes the sample fluid out through the opposite port at the same pressure, with no contact between the two fluids and no dead volume in the sample. The controlled variables are drive-fluid pressure and transfer rate. The measured variables are piston position or displaced volume, read from the rod, and transfer pressure. The rod gives a direct check of the remaining sample during long floods and recombination steps.

Within the fluid storage group the accumulator is used with the accumulator stand and heating mantle for conditioned injection of brines, oils and gases.

What is included

• Accumulator body with floating piston and external position rod
• Volume 500 cc or 1,000 cc
• Pressure rating 10,000 or 15,000 psi
• Wetted material stainless steel or Hastelloy
• Seals, stand, heating mantle and instrumentation: stated in the project datasheet

Specify for your project

• Volume: 500 cc or 1,000 cc
• Pressure rating: 10,000 or 15,000 psi
• Working temperature, up to 150 °C
• Sample and drive fluids, to select wetted material and seals
• Port connections and mounting (stand, heating mantle)

This description defines the product family. Guaranteed performance, included hardware, exclusions, interfaces and acceptance criteria are stated only in the project-specific technical proposal and approved datasheet.

Features

• Pressure: 10,000 psi or 15,000 psi
• Volume: 500cc or 1,000 cc
• Temperature: up to 150°C (300F)
• Material: stainless steel or Hastelloy
