High-Pressure Quick Connectors

  • Function. Connect piping components in high-pressure systems quickly without special tools.

    Sample count, pressure and temperature ratings, wetted materials, seals and instrumentation are configured per project. Guaranteed performance and included hardware are stated only in the project-specific technical proposal and approved datasheet.

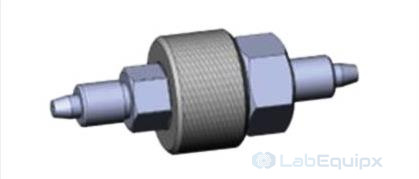

    Model: LEQC

    • High-Pressure Quick Connectors
  • Contact materials and connector forms

    • Material code SS denotes stainless steel. HC denotes Hastelloy for fluid-contact components.

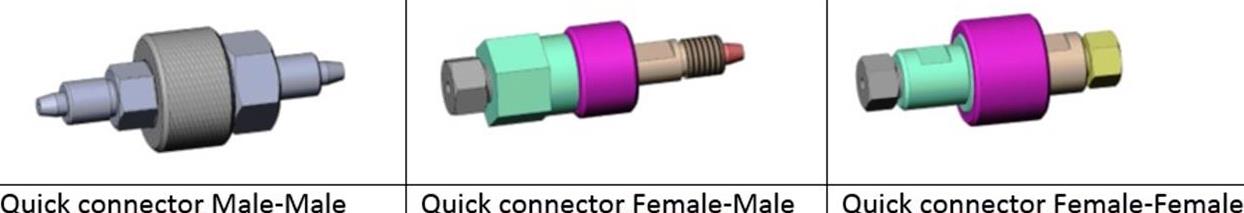

    • Type A joins a male end to a male end.
    • Type B joins a female end to a male end.
    • Type C joins a female end to a female end.
    • These selections provide up to three connector arrangements.

    Service ratings and interfaces

    • The pressure ceiling is 10,000 psi, and the upper temperature rating is 200°C.
    • The flow opening measures 1 mm. An inch dimension is on request.
    • Port option 1 uses an LP connection of 1/8 inch.
    • Port option 2 uses an 8 mm connection.
    • Viton is the sealing material. The sealing assembly closes the fluid interface.
