High-Pressure Needle Valve

  • Function. Controls liquid and gas flow at high pressure; available with a range of body styles, stems and seal materials.

    Controlled. Manual flow throttling.

    Sample count, pressure and temperature ratings, wetted materials, seals and instrumentation are configured per project. Guaranteed performance and included hardware are stated only in the project-specific technical proposal and approved datasheet.

    Model: LENV

    • High-Pressure Needle Valve
  • Materials and selection codes

    • For fluid-contact metal, code SS identifies stainless steel; code HC identifies Hastelloy.
    • Stem code V selects the vee tip. Stem code R selects the regulating tip.
    • Seal code T specifies Teflon. Seal code P is listed as Peak.

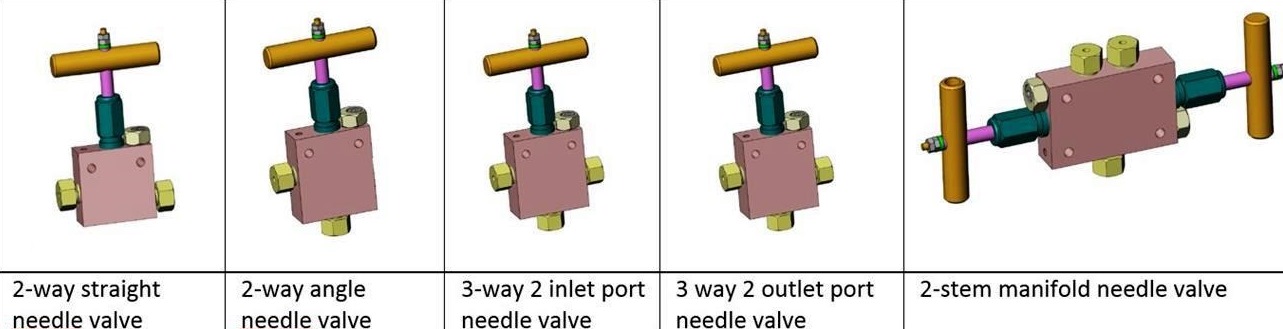

    Available flow arrangements

    • Pattern A: a straight path through a 2-way needle valve.
    • Pattern B: an angled path through a 2-way needle valve.
    • Pattern C: a 3-way layout with two inlet ports.
    • Pattern D: a 3-way layout with two outlet ports.

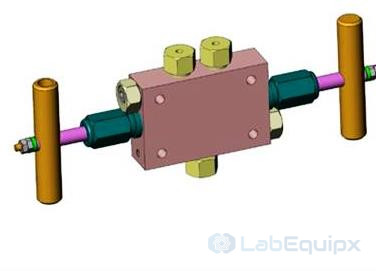

    • Pattern E: a manifold needle valve with a 2-stem arrangement.
    • The range therefore offers up to five different flow patterns.

    Ratings and connection

    • At 30°C, the maximum permitted pressure is 15,000 psi.
    • The upper temperature rating is 200°C.
    • The flow orifice measures 2 mm. Its inch dimension is on request.
    • The interface takes a 1/8 inch LP connection.

    Stem and seat construction

    • The stem does not rotate, which prevents galling between the stem and its seat.
    • The packing provides the seal around the stem.
    • Metal contacts metal at the seat to support seat life and corrosion resistance.
    • Both vee-tip and regulating-tip stem configurations are available.
