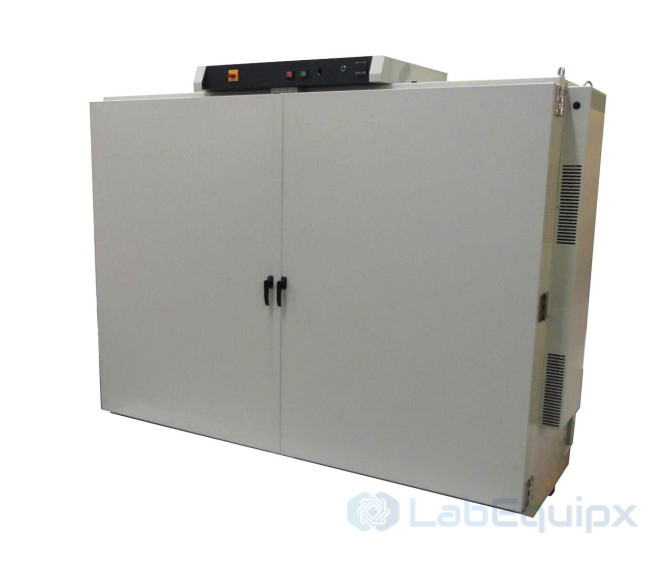

Controlled-Temperature Airbath

Function. Provides a uniform, constant temperature environment by forced convection for core-analysis equipment.

Controlled. Enclosure temperature.

Measured. Air-bath temperature.

Sample count, pressure and temperature ratings, wetted materials, seals and instrumentation are configured per project. Guaranteed performance and included hardware are stated only in the project-specific technical proposal and approved datasheet.

Model: LECTAB

Thermal range and laboratory conditions

• The airbath operates from ambient temperature through 175°C.
• The specified temperature increment is +/- 0.5°C.
• Use a room temperature from 18°C to 30°C and humidity between 20% and 70%.

Chamber with 700 mm internal width

• Inside the chamber, depth is 500 mm, width is 700 mm and height is 900 mm.
• External depth measures 670 mm; external width is 860 mm and total height is 1210 mm.
• Electrical demand is 2.2 kVA from a 220V supply operating at 50Hz.
• The complete unit has a mass of 160 kg.

Chamber with 1000 mm internal width

• Inside the chamber, depth is 500 mm, width is 1000 mm and height is 900 mm.
• External depth measures 670 mm; external width is 1160 mm and total height is 1210 mm.
• Electrical demand is 3.2 kVA from a 220V supply operating at 50Hz.
• The complete unit has a mass of 190 kg.

Chamber with 1300 mm internal width

• Inside the chamber, depth is 500 mm, width is 1300 mm and height is 900 mm.
• External depth measures 670 mm; external width is 1460 mm and total height is 1260 mm.
• Electrical demand is 4.2 kVA from a 220V supply operating at 50Hz.
• The complete unit has a mass of 220 kg.

Chamber with 1900 mm internal width

• Inside the chamber, depth is 500 mm, width is 1900 mm and height is 1420 mm.
• External depth measures 700 mm; external width is 2340 mm and total height is 1710 mm.
• Electrical demand is 6.8 kVA from a 220V supply operating at 50Hz.
• The complete unit has a mass of 420 kg.
