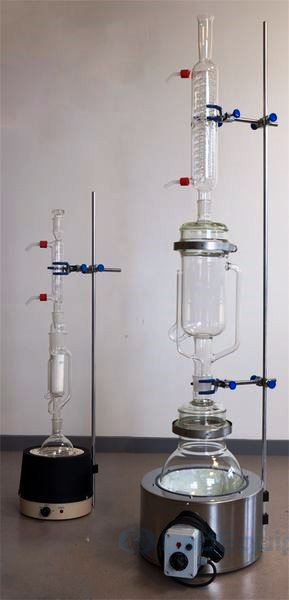

Soxhlet Extractor

Function. Removes liquid phases (oil and brine) from core by solvent vaporization and condensation (Soxhlet distillation-extraction).

Controlled. Solvent reflux; heating.

Measured. Extracted-fluid recovery.

Sample size, capacity, materials, tooling and instrumentation are configured per project. Guaranteed performance and included hardware are stated only in the project-specific technical proposal and approved datasheet.

SOXHLET FOR PLUG SIZED CORE SAMPLE:

• Configuration: - Single unit model - Multiple units model (up to 6 extractors) Core sample diameter: up to 1,5"
• Core sample length: up to 4"
• Extractor capacity: 250 ml
• Boiling flask: 500 ml
• Heating temperature: up to 450°C
• Water cooling system: 0.5 to 3 liters per minute, 18°C
• Power supply: 220 VAC 50 Hz

SOXHLET FOR FULL SIZED CORE SAMPLE:

• Configuration: - Single unit model - Multiple units model (up to 6 extractors) Core sample diameter: up to 4"
• Core sample length: up to 6"
• Extractor capacity: 3 liters
• Boiling flask: 6 liters
• Heating temperature: up to 450°C
• Water cooling system: 0.5 to 3 liters per minute, 18°C
• Power supply: 220 VAC 50 Hz
