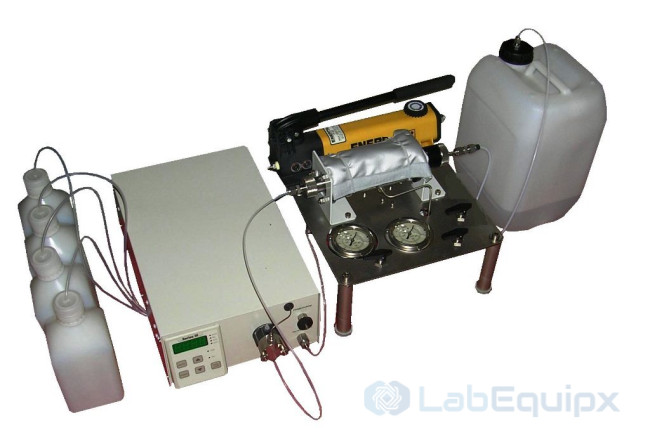

Flow-Through Core Cleaner

Function. Cleans core by controlled sequential solvent displacements at moderate pressure.

Controlled. Solvent sequence; pressure.

Measured. Cleaning end point.

Sample size, capacity, materials, tooling and instrumentation are configured per project. Guaranteed performance and included hardware are stated only in the project-specific technical proposal and approved datasheet.

Features

• Maximum confining pressure: 1,000 psi
• Core diameter: 1.5" (other upon request)
• Core length: Up to 3" (other upon request)
• Fluid flow rate: 5 cc/min (recommended)
• Wetted parts: Stainless steel
• Electrical: 110-220 VAC, 50 or 60 Hz
• Weight: 40Kg

Benefits

• Possibility to pump different solvents
• Constant injection flow for solvent
• Easy core loading and unloading operation
• Cleaning at pressure for high permeability sample
