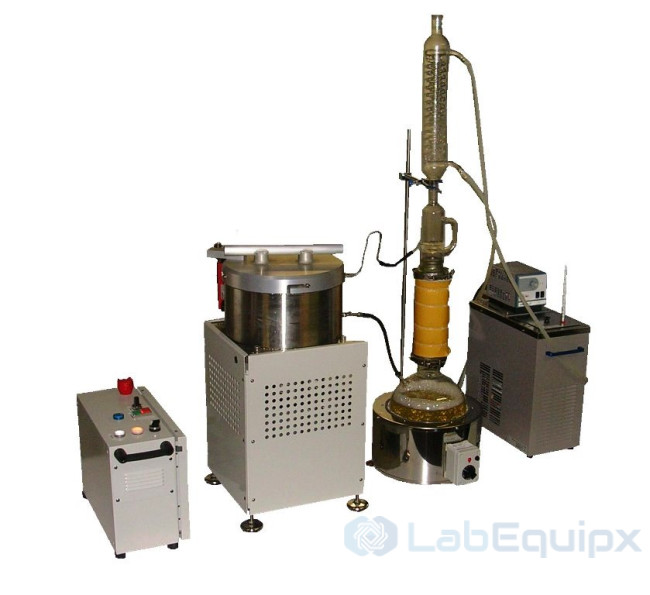

Centrifugal Extractor

The Centrifugal Extractor (CT-PREP-CENT) removes hydrocarbons from core plugs by combining a miscible solvent with centrifugal force. It belongs to the core cleaning line used ahead of routine and special core analysis, alongside Soxhlet, flow-through and CO2/solvent cleaners, and is chosen where residual oil must be removed without damaging delicate minerals such as clays.

How it works

Plugs are loaded into the extractor, 6 to 18 at a time depending on plug length, with a maximum diameter of 2 in and a maximum length of 3 in. The centrifuge spins at up to 3000 rpm. Centrifugal force drives solvent through the pore space, the solvent dissolves the hydrocarbon and the mixture is thrown out of the plug and collected. Rotational speed and solvent choice are the controlled variables; extracted-fluid recovery is the measured result. Wetted parts are stainless steel and PTFE. The unit runs on 220 V, 50 Hz and draws 1500 W.

What is included

• Centrifugal extractor with stainless steel and PTFE wetted parts
• Sample capacity for 6 to 18 plugs up to 2 in diameter and 3 in length

Specify for your project

• Plug diameter and length, and the number of plugs per batch
• Solvents to be used and their compatibility with the wetted materials
• Required rotational speed and cycle duration
• Supply voltage and frequency
• Whether a solvent recovery still is required downstream

This description defines the product family. Guaranteed performance, included hardware, exclusions, interfaces and acceptance criteria are stated only in the project-specific technical proposal and approved datasheet.

Features

• Core diameter: up to 2"
• Core length: up to 3''
• Quantity of sample: between 6 to 18 depending on the core length
• Wetted materials: Stainless steel , teflon
• Centrifuge speed: up to 3000 rpm
• Electrical: 220V, 50Hz, 1500W

Benefits

• Efficient solvent cleaning of core samples without damaging delicate minerals such as clays.
