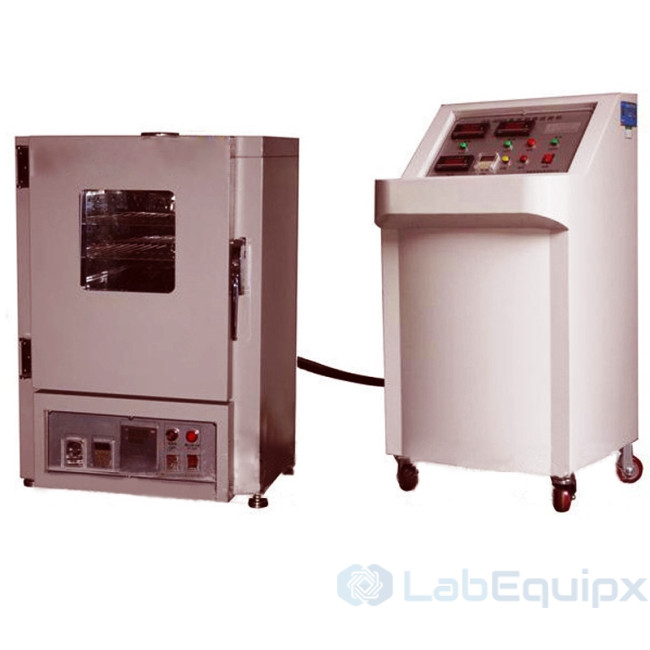

Temperature Control Battery Short Circuit Tester

  • The LEGTST temperature control battery short circuit tester connects the positive and negative terminals of a battery cell, module or pack through a low resistance external circuit and records what happens. The external short circuit test simulates misuse that can cause fire or rupture; the pass criterion is no flame and no explosion. Battery and vehicle laboratories use it for lithium-ion, nickel-metal hydride, lead-acid and ultracapacitor safety testing.

    How it works

    An industrial DC magnetic contactor with full copper terminals and internal copper conductors closes the short circuit. System internal resistance is ≤100 mΩ for LEGTST-1000 and ≤5 mΩ for LEGTST-2000, LEGTST-3000, LEGTST-5000 and LEGTST-10000; a circuit resistance measurement function checks it. Response time is 5 μs or less; pick-up and release time is under 30 ms. Short residence time is set from 0 to 999 s. Current is measured with ±1% FSR accuracy and 0.1 A resolution. The circuit can be opened by hand during a malfunction. Operation is by remote wireless control, away from the specimen.

    Data acquisition records voltage in ranges of 0 to 10, 0 to 100 and 0 to 1000 V with 1 mV resolution, and temperature from -200 °C to 1200 °C with 0.1 °C resolution, both ±1% FS, on 2, 4 or 8 channels. The specimen sits in an explosion-proof cabinet of 500, 800 or 1000 mm cube with temperature control, an explosion-proof tempered glass window, auto decompression device and top air exhaust. Communication is RS232 and 485.

    ModelMax operating current (A)Max instantaneous current (A)
    LEGTST-100010001500
    LEGTST-200020002500
    LEGTST-300030003500
    LEGTST-500050006000
    LEGTST-100001000012000

    Rated insulation voltage is 1000 V for all models. Maximum specimen size is 1000×1000×1000 mm.

    Standards

    ECE R100 Part 2, GB/T 18332.2-2009, QC/T 741, 742, 743 and 744-2006, QB/T 2947.3-2008, GB 19521.11-2005.

    Specify for your project

    • Maximum short circuit current
    • Battery chemistry, size and test standard
    • Cabinet size and test temperature
    • Data channels, camera monitoring, fire extinguishing and smoke exhaust

    This description defines the product family. Guaranteed performance, included hardware, exclusions, interfaces and acceptance criteria are stated only in the project-specific technical proposal and approved datasheet.

    • Temperature Control Battery Short Circuit Tester
  • Features

    1. ECE-R100 Part2
    2. External short circuit testing; system internal resistance ≤100 mΩ for LEGTST-1000 and ≤5 mΩ for LEGTST-2000, LEGTST-3000, LEGTST-5000 and LEGTST-10000
    3. Maximum operating current: 1000-10000 A; maximum instantaneous current: 1500-12000 A, depending on model
    4. Testing temperature: 0 to 100°C. Shutoff function: circuits can be shut off manually during battery malfunction. High-speed shutoff (within 100 ms)

    Circuit resistance measurement function

    System internal resistance is ≤100 mΩ for LEGTST-1000 and ≤5 mΩ for LEGTST-2000, LEGTST-3000, LEGTST-5000 and LEGTST-10000. The electrical system must be sized for the short-circuit load.

    Selects industrial DC magnetic contact with full copper terminal and internal copper current conduction, and internal active bead axial fan is mounted to cool to ensure the test system more safer and reduce the test machine power consumption and enable the test data in accuracy.

    Test judgment standards: no flame or explosion after battery short-circuit test.

    Standard Compliance

    • GB/T 18332.2-2009Nickel-metal hydride vehicles
    • QC/T 741-2006 Ultracapacitors for vehicles
    • QC/T 742-2006 Lead-acid batteries for electric vehicles
    • QC/T 743-2006 Lithium-ion batteries for electric vehicles QC/T 744-2006 Nickle-metal hydride batteries for electric vehicles
    • Vehicles battery related international standard (ISO/IEC/SAE/JEVA/CEN etc.) International Standard Association and 863 plan electric vehicles major projects related test specification
    • QB/T 2947.3-2008 Electric bicycles-cell or battery and chargers Part 3:Li-ion batteries and chargers DB12/T246-2005 Lithium batteries for electrical bicycles test specification
    • GB 19521.11-2005 Safety code for inspection of hazardous properties for dangerous goods of lithium batteries

    Technical Parameters

    Model

    LEGTST-1000

    LEGTST-2000 LEGTST-3000

    LEGTST-5000

    LEGTST-10000
    Max. Operating Current (A) 1000 2000 3000 5000 10000
    Rated Insulation Voltage (V) 1000 1000 1000 1000 1000
    Max. instantaneous current 1500A 2500A 3500A 6000A 12000A
    Internal Resistance System ≤100mΩ≤5mΩ
    Driven Method ElectricPneumatic Electric
    Response time≤5μs
    Acting TimePick-up time/ release time ,less than 30ms
    Short residence time0~999S,time and state controllable
    Current Accuracy±1%FSR,resolution :0.1A
    Max. Specimen Dimension1000X1000X1000MM
    Resistance MaterialCopper
    PowerAC220V 50HZ or Customized
    Short-circuit MethodLow temp. Ambient temp. High temp.
    Operating MethodLong distance wireless control
    Overall DimensionAccording to actual design
    Additional FunctionVoltage, Current Temperature Sampling, Camera Monitoring system, Fire-extinguishing system, explosion-proof system, smoke evacuation system.

    Configuration

    Voltage 0—10V,0--100V,0—1000V
    Temp. Sampling Range -200℃ ~ 1200℃
    Voltage, Temperature Accuracy ±1%FS
    Voltage Resolution 1mV
    Temp. Resolution 0.1℃

    Temperature Control Type Explosion-proof Cabinet Technical Parameters

    Cabinet Specification (mm) 500X500X500MM, 800X800X800MM, 1000X1000X1000MM, can customize
    Temp. Range 0℃~100℃(Controllable )
    Temp. Fluctuation ±0.5℃
    Temp. Uniformity ±2℃
    Compressor Hermetic compressor
    Observation Window Rectangle multi-layer explosive-proof tempering glass with stainless steel protective screening
    Explosive-proof decompression device with auto decompression devices
    Air Exhaust System Air exhaust system on top cabinet

    Structure

    Cabinet Independent vertical & horizontal test machine and control system
    Communication Adopt R232,485 communication interface, ensure stability and real time of remote sampling, with explosive-proof function
    Fixed Clamp Connector or customize clamp according to samples provided
    Data Sampling module Independent remote sampling, multi voltage, temp., current acquisition channels (optional );
    Standard channel quantity 2-channel,4-channel,8-channel,various data acquisition system (optional )
    Camera Monitoring System Test zone installed with high definition camera monitoring system in remote control with explosion-proof (optional).
    Standard Configuration Short-circuit host, data acquisition system, explosion-proof system (camera monitoring, fire-fighting system, smoke exhaust system optional)
    Safety Protection Electric leakage, over-temp., over-voltage, over-current, fault alarm, smoke alarm lamp.
    Testing Fixture Customize according to actual testing condition
    Working Environment 0℃~45℃
