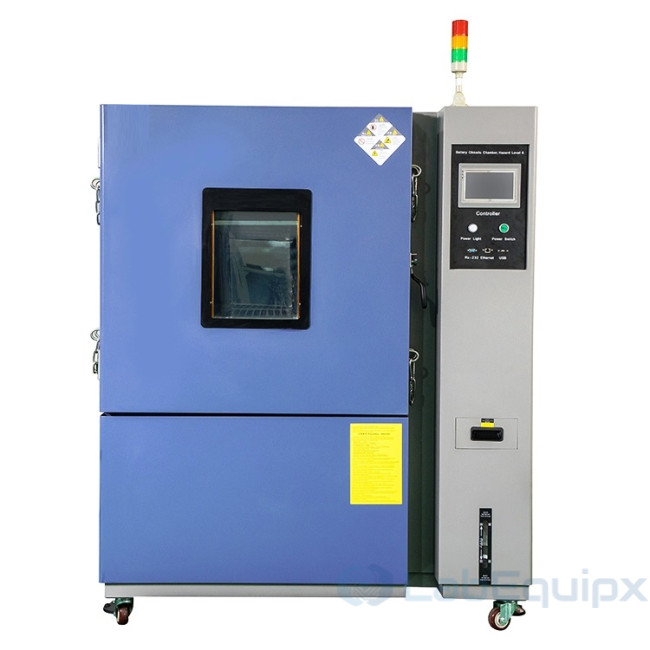

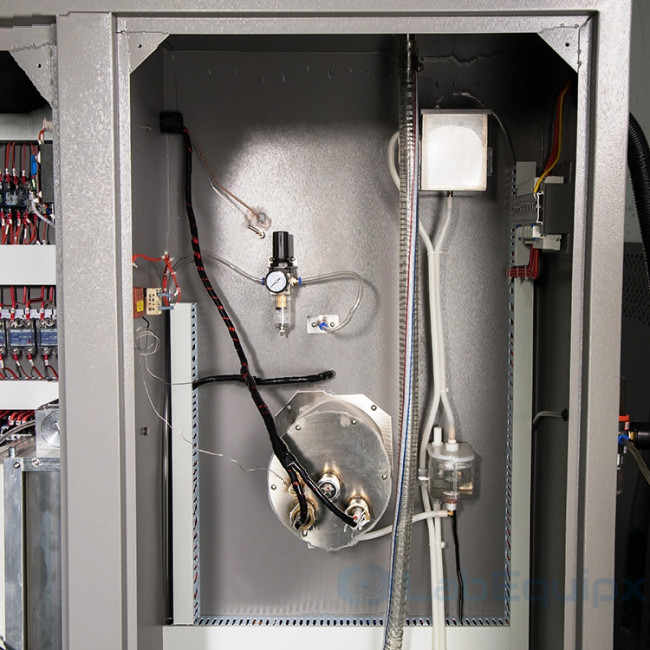

Battery Climatic Chamber, Hazard Level 6, LEGTH

  • For abuse and environmental tests on batteries under IEC 62133-2017, UL 1642 and UN 38.3, the LEGTH battery climatic chamber combines a temperature and humidity chamber with an explosion protection system. Six sizes, LEGTH-080 to LEGTH-1000, give working volumes of 80 to 1000 L. Battery laboratories use it to cycle cells and packs through temperature and humidity while protecting the operator and building if a sample vents or burns.

    Explosion protection

    As standard the chamber has two Ø100 mm pressure relief ports and four explosion-proof door chains. A pressure relief device with bursting disc, protective cover, sensor switch and exhaust fan opens when internal pressure exceeds the safety valve setting, gives the explosion a release path and protects the equipment and people. A CO and H2 gas detector measures gas released by the battery and vents it outdoors when the limit is exceeded. A CO2 fire extinguisher puts out fire and shuts the machine down. A multipoint monitor records surface temperatures of several samples.

    Climate system

    Humidity runs from 20 to 98% RH, with 10% or 5% RH lower limits as options. Fluctuation is ±0.2 °C and ±0.5% RH, uniformity ±1.5 °C, and resolution 0.01 °C and 0.1% RH. Average heating rate is at least 3 °C/min and cooling at least 1 °C/min, with optional rates from 1 to 30 °C/min. Air enters at the bottom and leaves at the top. Refrigeration uses compressors with R23/R404A, a finned evaporator and air or water cooled condenser; dehumidifying uses the ADP dew point method. Control is PID with S.S.R.

    ModelWorking room (L)Inner W×H×D (mm)Gross weight (kg)
    LEGTH-08080400×500×400300
    LEGTH-150150500×600×500320
    LEGTH-225225500×750×600350
    LEGTH-408408600×850×800400
    LEGTH-8008001000×1000×800600
    LEGTH-100010001000×1000×1000700

    Options

    • Low humidity system, recorder, pure water treatment
    • Inner glass door with manual operating ports
    • RS-485 PC interface, LN2 or LCO2 fast cooling

    Specify for your project

    • Working volume, 80 to 1000 L
    • Temperature limits and heating/cooling rate
    • Humidity range
    • Battery chemistry and test standard

    This description defines the product family. Guaranteed performance, included hardware, exclusions, interfaces and acceptance criteria are stated only in the project-specific technical proposal and approved datasheet.

    • Battery Climatic Chamber Hazard Level 6
    • Battery Climatic Chamber Hazard Level 6
    • Battery Climatic Chamber Hazard Level 6
    • Battery Climatic Chamber Hazard Level 6
    • Battery Climatic Chamber Hazard Level 6
  • Standards

    • IEC 62133-2017
    • UL 1642
    • UN 38.3

    Optional accessories

    1. Low Humidity and Dehumidifying sytstem.
    2. Inner glass door with manual operating ports.
    3. Temp./Humi.Recorder.
    4. Pure water treatment device
    5. RS-485 interface can be linked to Personal computer(PC) and achieve multi-level control & recording software management.
    6. Liquid nitrogen(LN2)/Liquid Carbon Dioxide(LCO2) fast cooling-down system.
    7. Temperature change rate on average without load (Linear heating up and cooling down); 5℃/min, 10℃/min, 15℃/min, 20℃/min, 25℃/min, RAMP function.

    Technical parameters

    Model No LEGTH-080 LEGTH-150 LEGTH-225 LEGTH-408 LEGTH-800 LEGTH-1000
    Working room(L) 80 150 225 408 800 1000
    Inner chamber size(mm)W*H*D 400*500*400 500*600*500 500*750*600 600*850*800 1000*1000*800 1000*1000*1000
    Exterior chamber size(mm)W*H*D 900*900*1500 950*1500*1050 950*1650*1150 1050*1750*1350 1450*1900*1350 1450*1900*1550
    Packaging volume(CBM) 4 5 6 6.5 7 8
    G.W.(KGs) 300 320 350 400 600 700
    PerformanceTemperature rangeTemperature range on request
    Humidity range20%RH ~98%RH(10%RH ~98%RH or 5%RH ~98%RH)
    Temp.&Humi fluctuation±0.2°C, ±0.5%RH
    Temp.Humi.Uniformity±1.5°C; ±2.5%RH(RH≤75%),±4%RH(RH>75%) No-load operation,After stead state 30 min.(±1.5°C; ±1%RH(RH≤75%)
    Temp.humi resolution0.01°C; 0.1%RH
    Heating up time °C100 150
    MinHeating time is confirmed after the heating rate is specified.
    Cooling down time °C0 -20 -40 -60 -70
    MinCooling time is confirmed after the cooling rate is specified.
    Heating rate≥3°C/min
    Cooling rate≥1°C/min
    Heating & Cooling Rate(Options)1°C/min,3°C/min, 5°C/min, 8°C/min, 10°C/min, 15°C/min,20°C/min,25°C/min,30°C/min linear average or nonlinear average

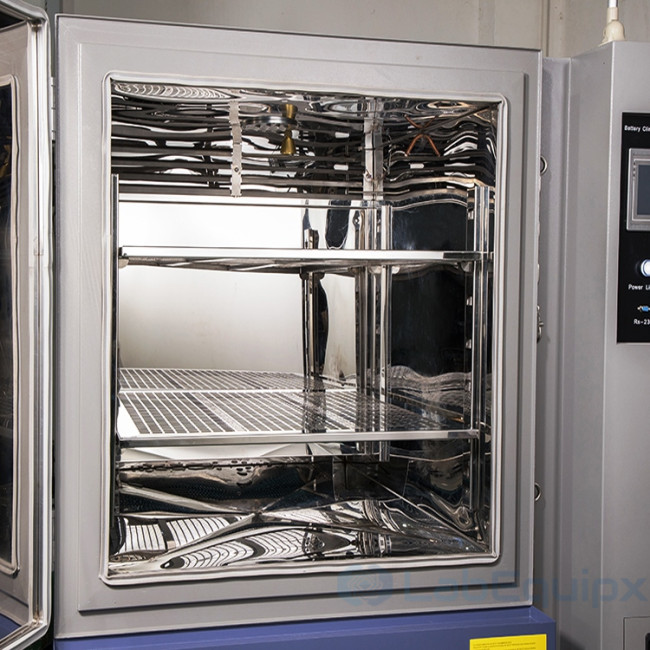

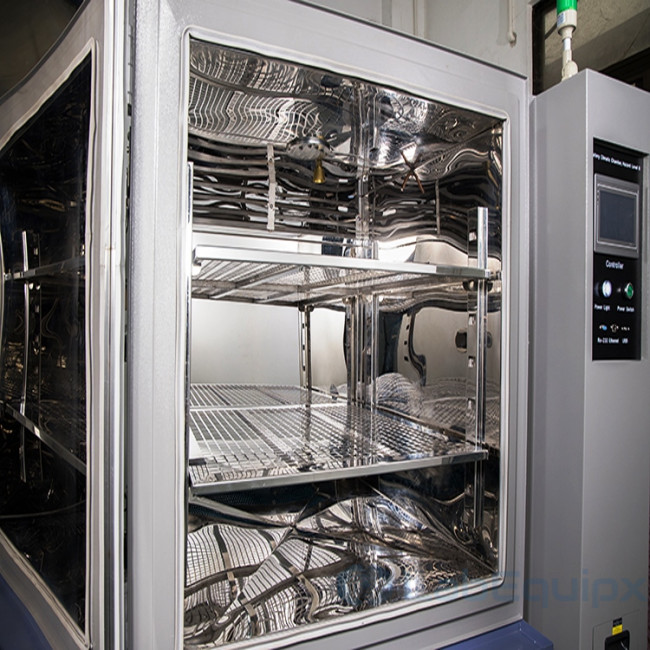

    MaterialInner chamber materialSUS#304 stainless steel plate
    Exterior chamber materialSUS304 Stainless steel plate+ powder coated
    Insulation MaterialPU & Fiberglass wool
    SystemAir circulation systemCooling fan
    FanSirocco fan
    Heating SystemSUS#304 stainless steel high-speed heater
    Air flowForced Air Circulation(It enters at bottom and leaves at top)
    Humidification systemSurface evaporation system
    Refrigeration systemCompressor, finned type evaporator, air- or water-cooled condenser
    Refrigerating fluidR23/R404A
    CondensationAir(Water)-cooling condenser
    Dehumidifying systemADP critical dew point cooling/dehumidifying method
    Controlling systemPID Digital electronic indicators+S.S.R.With PID automatic calculation capability
    Operation interfaceTemperature & humidity controller with Chinese-English language selection.
    Explosion Proof SystemStandard configuration2 Ø100MM pressure relief port, 4 explosion-proof chainsExplosive pressure relief deviceWhen the pressure in the equipment or pipeline exceeds the safety valve pressure relief automatically open Equipped with:Bursting disc,protective cover,sensor switch,exhaust fan function:A. When the test items explode,there is a pressure release pipeB. Protect the test equipment from sudden air pressure damageC.Protecting the human beings and property
    Multipoint temperature
    monitor
    Controller acquires surface temperatures at multiple points on multiple samples
    CO2 fire extinguisherAutomatic fire extinguishing and automatic shutdown of the machine to protect the equipment from burning
    CO & H2 gas detectorWhen the battery will produce gas, it will detect gas solubility and discharge to outdoor when it exceeds the standard
    Exhaust valve/VentilatorWhen the test sample produces harmful gas, ventilate and exhaust internally.When the pressure in the tank exceeds the pressure of the safety valve and opens the pressure relief valve,the exhaust fan is automatically turned on.
    Explosion Proof SystemStandard configuration2 Ø100MM pressure relief port, 4 explosion-proof chainsExplosive pressure relief deviceWhen the pressure in the equipment or pipeline exceeds the safety valve pressure relief automatically open Equipped with:Bursting disc,protective cover,sensor switch,exhaust fan function:C. When the test items explode,there is a pressure release pipeD. Protect the test equipment from sudden air pressure damageC.Protecting the human beings and property
    Multipoint temperature
    monitor
    Controller acquires surface temperatures at multiple points on multiple samples
    CO2 fire extinguisherAutomatic fire extinguishing and automatic shutdown of the machine to protect the equipment from burning
    ControllerProgrammable capabilitySave 120 profiles with up to 1200 steps each program
    Setting rangeTemperature:-200℃+1000℃
    Reading accuracyTemperature:0.01℃
    InputPT100 or T Sensor
    ControlPID control
    Communication interfaceEquipped with standard communication interface devices USB,RS-232 and RS-485,enable the test chamber to be connected with personal computer(PC),to achieve multi-machine control and management at the same time.Standard: USB external memory port.Optional: RS-232, RS-485, GP-IB, Ethernet
    Print functionTemperature recorder (optional accessory)
    AuxiliaryLimit Alarm,Self Diagnosis,Alarm Display(Failure Cause),Timing device(Automatic Switch)
    AccessoriesMulti-layer vacuum glass observation window,Cable port(50mm),Controlling status indicator lamp,Chamber light,Specimen loading shelf(2pcs,position adjustable),Guaze 5pcs,Operation manual 1 set.
    Safety protection deviceOver-heat protection circuit breaker,Compressor overload protection,Control system overload protection,Humidifying system overload protection,Overload indicator lamp.
    Power supplyAC 1Ψ 110V;AC 1Ψ 220V;3Ψ380V 60/50Hz
    Customized serviceWelcome to Non-standard,Specail requirements,OEM/ODM orders.
    The technical information will be subjected to change without notice
