Temperature Aging Test Chamber
The LEGIO temperature aging test chamber is a forced air oven for heat aging and burn-in of batteries, electronics, components, plastics, chemicals, foods and automotive and aviation parts. It comes as a space-saving vertical oven or as a horizontal oven, in six sizes from LEGIO-072 to LEGIO-1000, and the working range starts at room temperature plus 10 °C.
Design

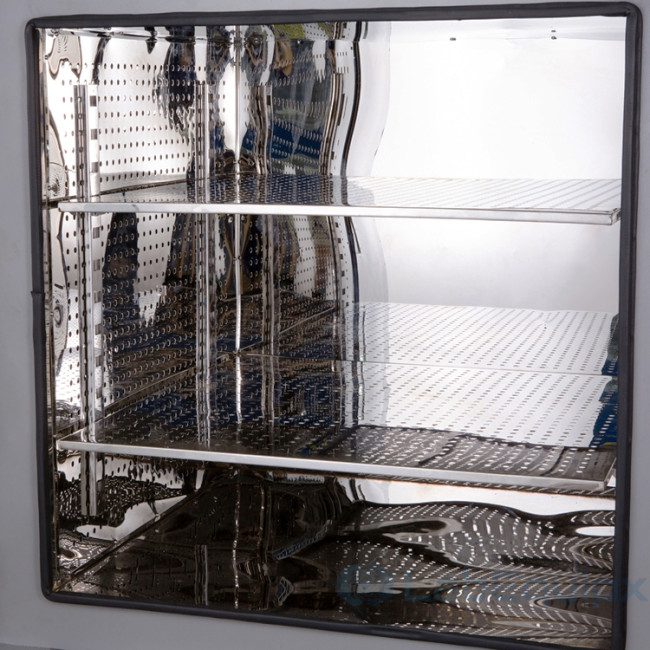

Both types give horizontal airflow for even exposure of all samples. In the horizontal type the controller and blower sit to the right of the chamber. In the vertical type they sit at the top, and air is distributed horizontally from the back wall. A sirocco fan circulates the air past a SUS 304 stainless steel high-speed heater. The interior is SUS 304 stainless steel plate, insulated with PU and fiberglass wool, inside a powder coated steel exterior. An exhaust damper ventilates the oven and allows a fast cool-down.
The standard controller has a large LED display and two-step programming with automatic start, stop, ramp and repeat. An upgrade allows up to ten programs for cycling. Temperature resolution is 0.1 °C or 1 °C. A visual and audible alarm shows a diagnostic fault code, and a specimen power terminal switches the specimen off if the chamber faults. Overheat protection has four levels. Two shelves rated for 40 lbs or more and a 50 mm cable port are standard. Single or double doors are available.
Model Inner W×H×D (mm) Power (kW) LEGIO-072 450×400×400 4 LEGIO-270 600×900×500 6 LEGIO-480 800×1000×600 8 LEGIO-600 1000×1000×600 10 LEGIO-720 1200×1000×600 12 LEGIO-1000 1000×1000×1000 15 Options
- USB or RS-232 interface to a PC for control and recording
- Custom inner chamber size
Specify for your project
- Inner chamber size or model
- Maximum temperature
- Vertical or horizontal type, single or double door
- Power supply: AC 1-phase 110 V or 220 V, or 3-phase 380 V, 60/50 Hz
- Programming and PC interface
This description defines the product family. Guaranteed performance, included hardware, exclusions, interfaces and acceptance criteria are stated only in the project-specific technical proposal and approved datasheet.
Product Details
Temperature Aging Test Chamber LEGIO offers two types of standard models: the space-saving vertical ovens and the horizontal ovens. Both provide horizontal airflow for even exposure to all samples. Temperature fluctuation is ±3°C; temperature uniformity is ±0.1°C at 200°C and ±1.5% at 300°C. An exhaust damper is included to ventilate the oven and allow quick cool-down.
The standard controller offers two-step programming for simple heat-up or shut-down steps. An inexpensive upgrade allows creation of up to ten programs for full cycling applications. The large display is easy to use and read. Four levels of overheat protection are included for safety. A wide variety of options are also available.
Features
- Stainless steel interior
- Exclusive controller with large LED display
- Two-step programmability with functions for automatic start, stop, ramp, and repeat
- Visual and audible alarm with diagnostic fault code
- Specimen power supply control terminal: turns specimen off if chamber faults
- Four-tiered safety system for overheat conditions
- Two shelves included standard, rated for 40 lbs. or more

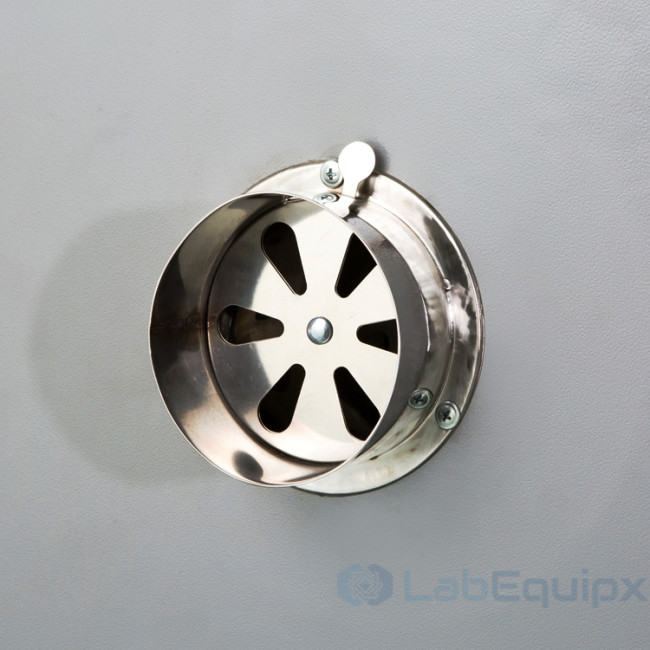

- Exhaust damper for ventilating oven and fast cool-down
- Large variety of models and optional features
- See additional model variations available in the right-hand column
Model types:
- Horizontal-type: Controller and blower to the right of the chamber

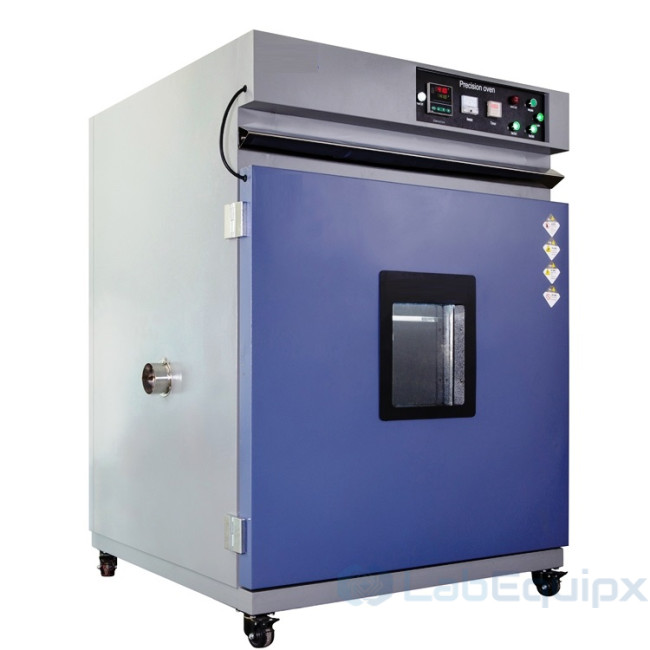

- Vertical-type: Controller and blower at the top of the chamber (air distributed horizontally from back wall)
Optional accessories
USB,RS-232 interface can be linked to Personal computer(PC) and achieve multi-level control & recording software management.
Technical parameters:
Model No LEGIO-072 LEGIO-270 LEGIO-480 LEGIO-600 LEGIO-720 LEGIO-1000 Inner chamber size(mm)W*H*D 450*400*400 600*900*500 800*1000*600 1000*1000*600 1200*1000*600 1000*1000*1000 Exterior chamber size(mm)W*H*D 900*1050*550 1100*1600*650 1200*1700*840 1400*1750*840 1750*1750*840 1750*1750*1550 Temperature range From RT+10℃; maximum temperature on request Performance Temperature fluctuation ±3℃ Temperature Uniformity ±0.1℃ AT 200℃;±1.5%AT300℃ Temperature resolution 0.1℃/1℃ Material Exterior chamber material Stainless steel plate+ Power Coated Inner chamber material SUS#304 stainless steel plate Insulation Material PU& Fiberglass wool System circulation system Sirocco fan Heating system SUS#304 stainless steel high-speed heater Controller Touch-screen controller or temperature controller + S.S.R. Door Single gate Double gate Other Components Cable port(50mm), control status indicator lights, loading shelves(2pcs for free) Safety protection device Over-heat protection circuit breaker,Control system overload protection,Overload indicator lamp. Power Supply AC 1Ψ 110V;AC 1Ψ 220V;3Ψ380V 60/50Hz Power(KW) 4 6 8 10 12 15 Customized service Welcome to Non-standard and Specail requirements,OEM/ODM orders.Customization of inner chamber size, tempreture&humidity range,ect. The technical information will be subjected to change without notice
