Threaded Flange Class 150-Class 2500

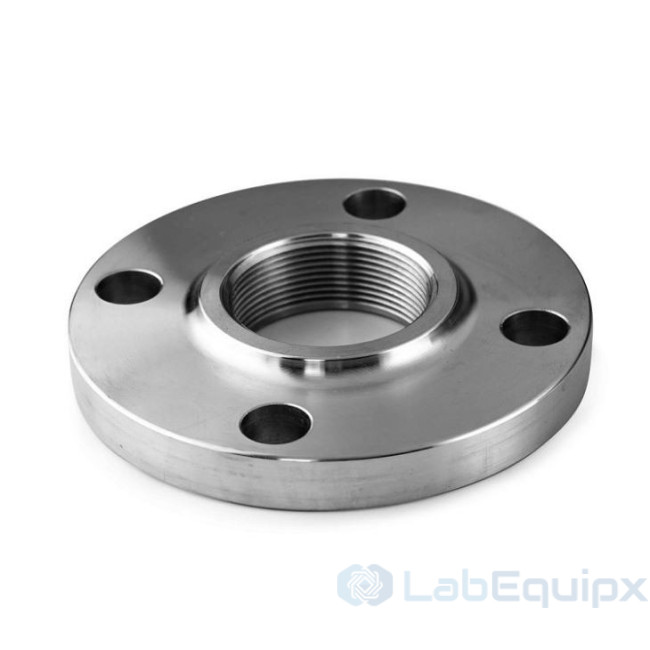

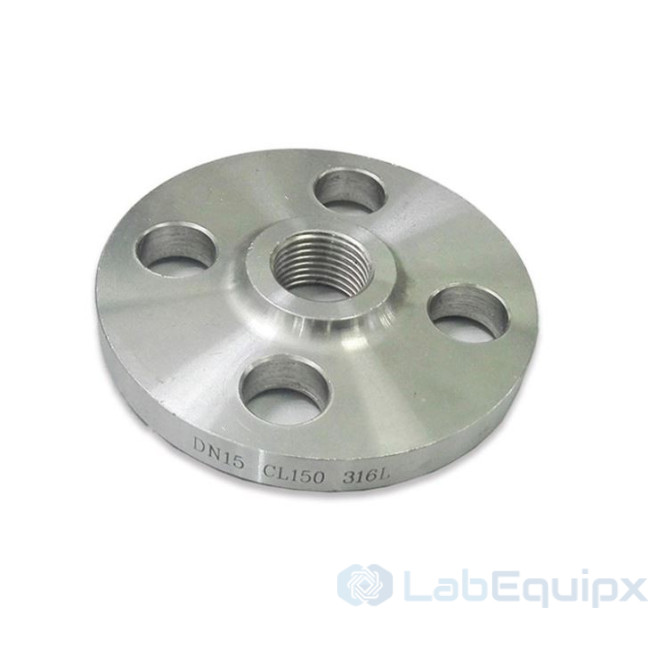

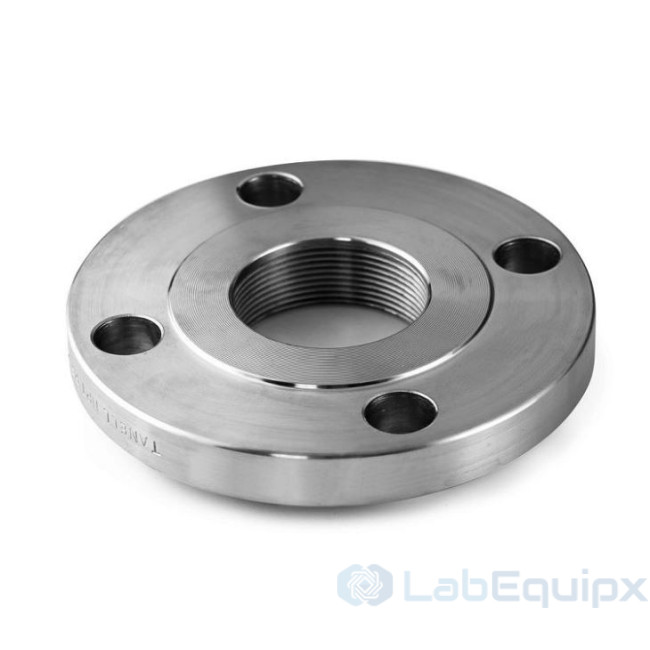

Threaded flanges connect threaded pipe, valves and equipment to a bolted, gasketed flange joint without welding. This item is a stainless steel SS316 or SS304 female thread flange to ANSI B16.5 in Class 150 through Class 2500, sizes 1/2 in to 24 in, of round form with a raised face (RF) sealing surface.

How it works

The male threaded pipe end screws into the female thread in the flange bore. The flange is then bolted to a mating flange with a gasket between the raised faces, and the bolt load compresses the gasket to seal the joint. The pressure class is selected to match the pressure and temperature of the line.

What is included

• Threaded flange in the specified size, class and stainless grade; minimum order 10 pieces

Specify for your project

• Nominal pipe size, 1/2 in to 24 in
• Pressure class, 150 to 2500
• Material grade: SS316 or SS304
• Thread form of the mating pipe
• Quantity

This description defines the product family. Guaranteed performance, included hardware, exclusions, interfaces and acceptance criteria are stated only in the project-specific technical proposal and approved datasheet.

Product Details

• Model NO: Thread
• Material: Stainless Steel
• Port Size: 1/2"-24"
• Standard: ANSI
• Type: Threaded Connection Flange
• Material: Stainless Steel
• Structure: Round
• Connection: Thread
• Sealing Surface: RF
• Connection: Thread
• MOQ: 10pcs
