Blind Flange Class 300-Class 2500

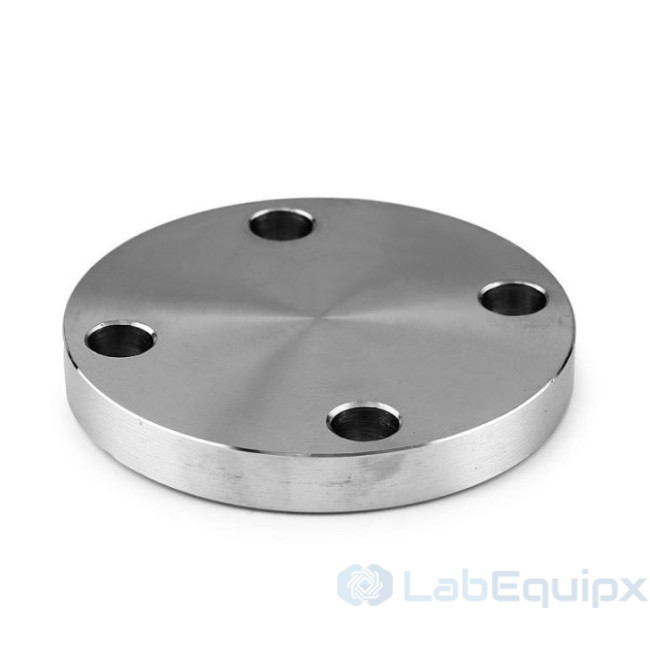

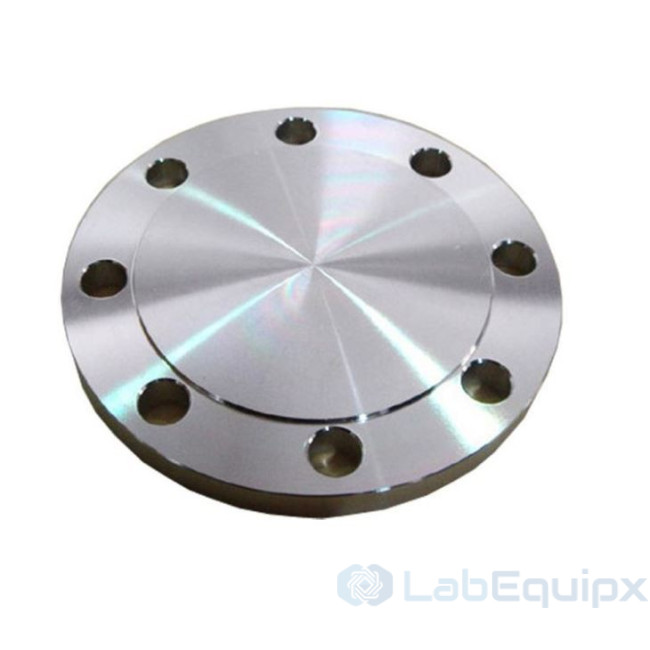

The blind flange is a solid round forged disc that closes the end of a flanged pipe, nozzle or vessel opening. It is made to ANSI B16.5 in pressure classes from Class 300 to Class 2500 and nominal sizes from 1/2 in to 24 in, forged from stainless steel SS316 or SS304, with a raised face (RF) sealing surface and bolt holes for screwed connection to the mating flange.

How it works

The flange bolts to a mating flange of the same size and class with a gasket between the raised faces. Bolt load compresses the gasket and the joint holds line pressure; the class is chosen from the pressure and temperature of the line. Because the blind has no bore, it terminates the line or blanks a nozzle and can be removed later when the piping is extended.

What is included

• Forged stainless steel blind flange, raised face, in the ordered size and class
• Minimum order quantity 10 pieces

Specify for your project

• Nominal pipe size, 1/2 in to 24 in
• Pressure class, Class 300 to Class 2500
• Material grade, SS316 or SS304
• Quantity, minimum 10 pieces
• Facing and gasket type of the mating flange in the line

This description defines the product family. Guaranteed performance, included hardware, exclusions, interfaces and acceptance criteria are stated only in the project-specific technical proposal and approved datasheet.

Product Details

• Model Number: Blind
• Material: Stainless Steel
• Manufacturing Way: Forging
• Standard: ANSI
• Type: Welding Flange
• Structure: Round
• Connection: Screws
• Specification: 1/2" to 24"
• Sealing Surface: RF
• MOQ: 10pcs
