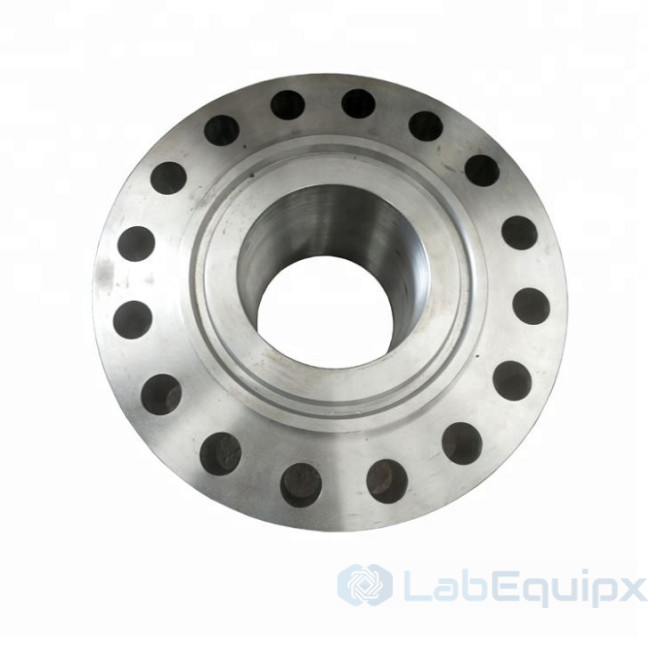

  • The le115572968 is a forged stainless steel weld neck flange with a ring joint (RTJ) sealing face, made to ANSI B16.5. It covers pressure classes from Class 150 to Class 2500 and nominal sizes from 1/2 inch to 24 inch. Piping and equipment designers use it where a bolted joint must seal with a metal ring gasket instead of a soft gasket, typically on high pressure and high temperature process lines, vessels and test rigs.

    Design

    The flange is forged and then machined. The weld neck has a tapered hub that is butt welded to the pipe, so the load passes from the flange into the pipe wall through a full-penetration weld. The sealing face carries a ring groove. A solid metal ring gasket sits in matching grooves on both mating flanges and is compressed by the bolts, which gives a metal to metal seal. Both flanges of a joint must have the same groove size.

    • Standard: ANSI B16.5
    • Type: weld neck, ring joint facing (RTJ)
    • Pressure class: Class 150 to Class 2500
    • Nominal size: 1/2 inch to 24 inch
    • Manufacture: forging
    • Material: stainless steel, grade on request
    • Form: round

    Specify for your project

    • Nominal size, 1/2 inch to 24 inch
    • Pressure class, Class 150 to Class 2500
    • Pipe schedule, which sets the weld neck bore

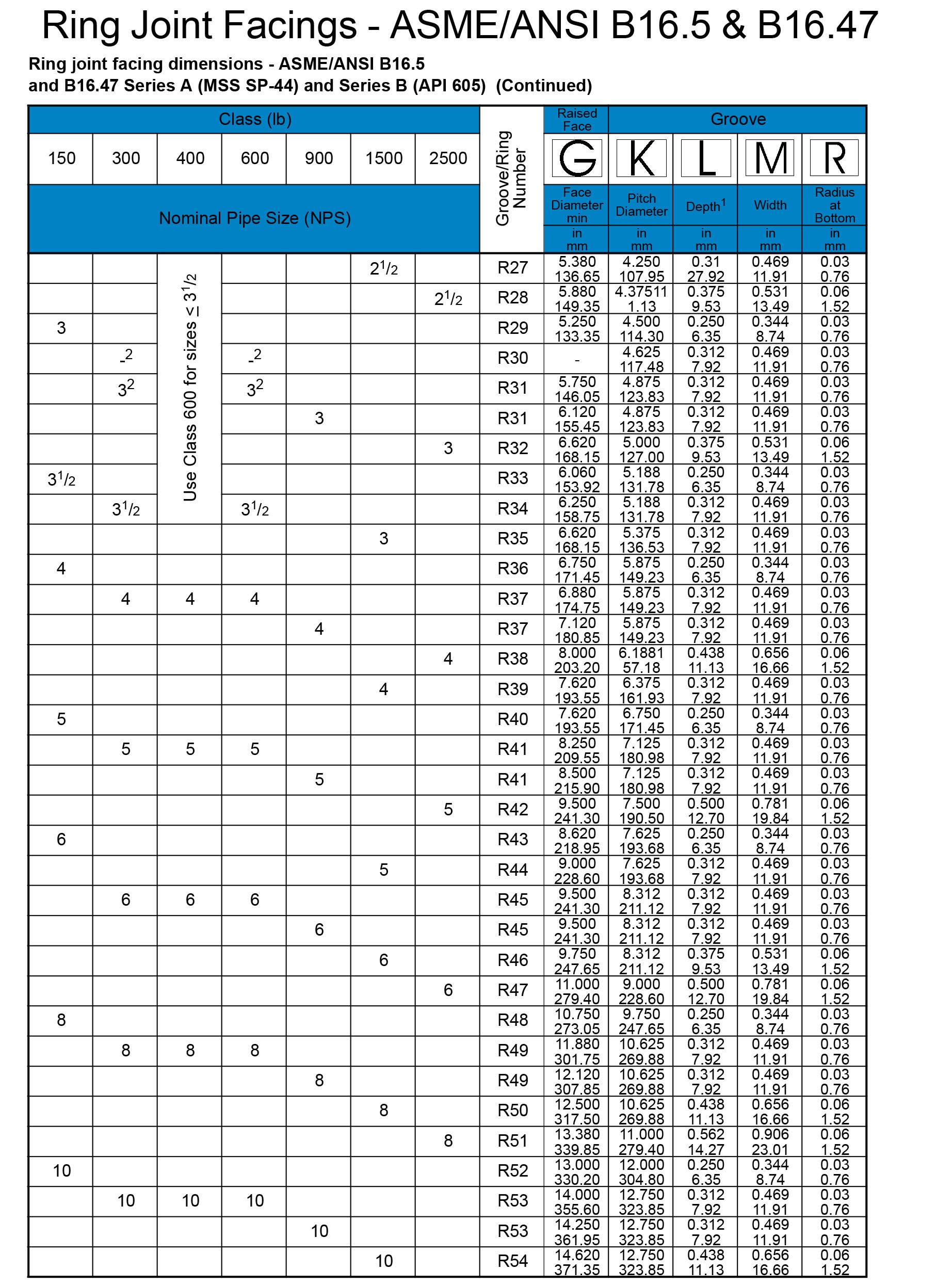

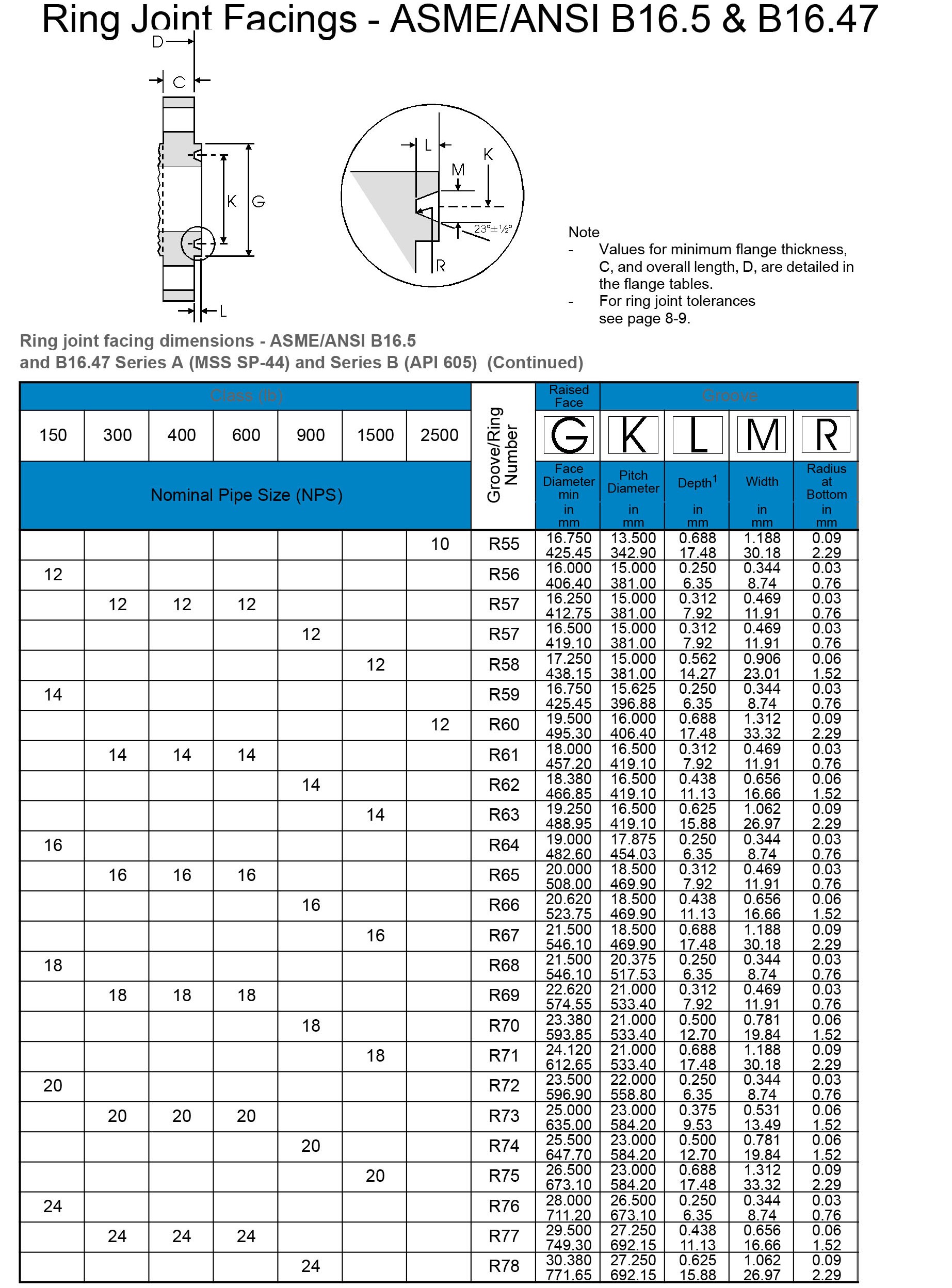

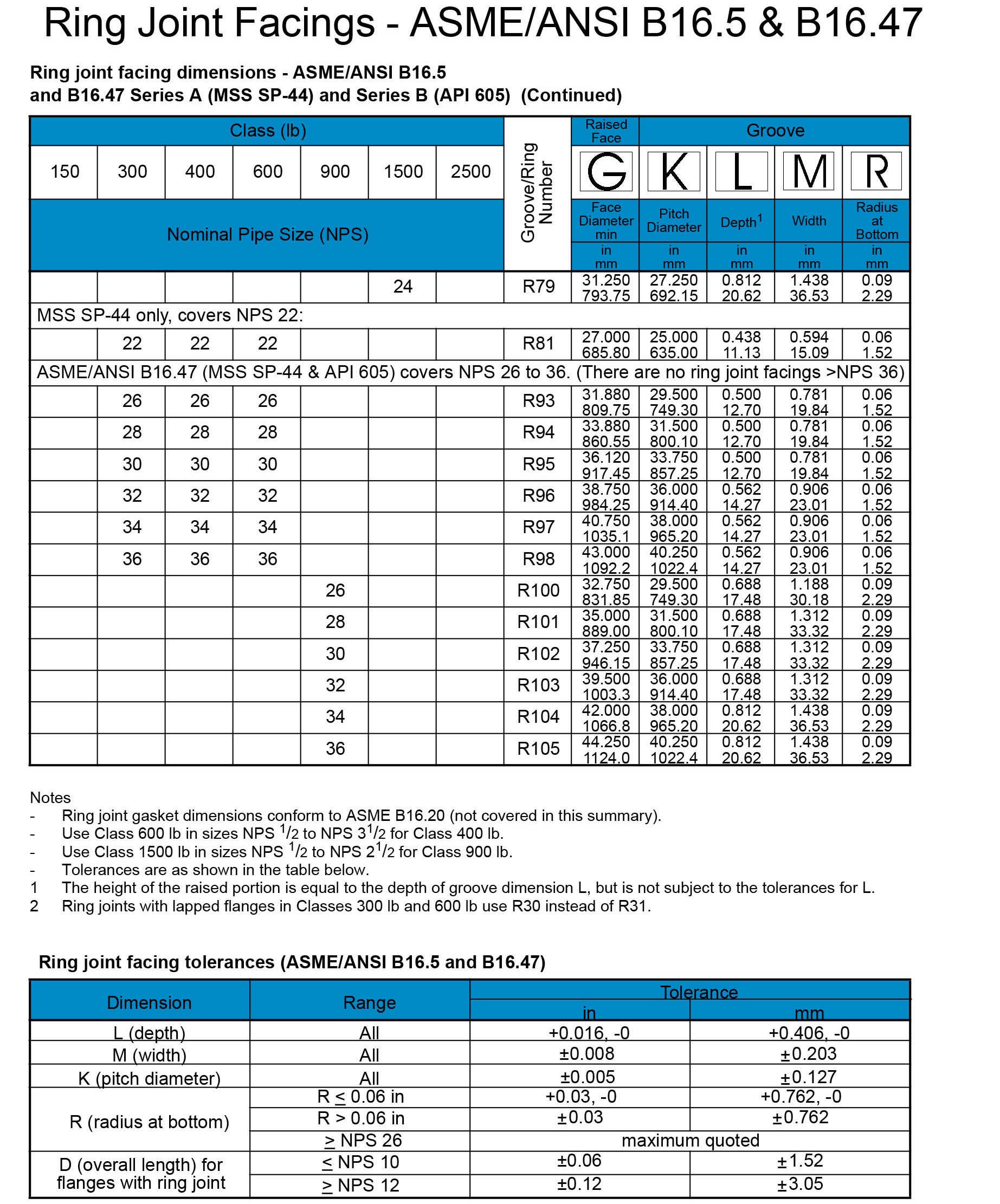

    • Ring gasket groove size to match the mating flange
    • Quantity: the minimum order is 10 pieces

    This description defines the product family. Guaranteed performance, included hardware, exclusions, interfaces and acceptance criteria are stated only in the project-specific technical proposal and approved datasheet.

  • Port Size1/2"-24"
    StandardANSI
    Model NORTJ
    • Ring Joint Facings Flange Class 150-Class 2500
    • Ring Joint Facings Flange Class 150-Class 2500
  • Product Details

    • Port Size: 1/2"-24"
    • Standard: ANSI
    • Type: Welding Flange
    • Manufacturing Way: Forging
    • Material: Stainless Steel, grade on request
    • Structure: Round
    • Sealing Surface: RJ
    • MOQ: 10pcs
