Hydrates studies system

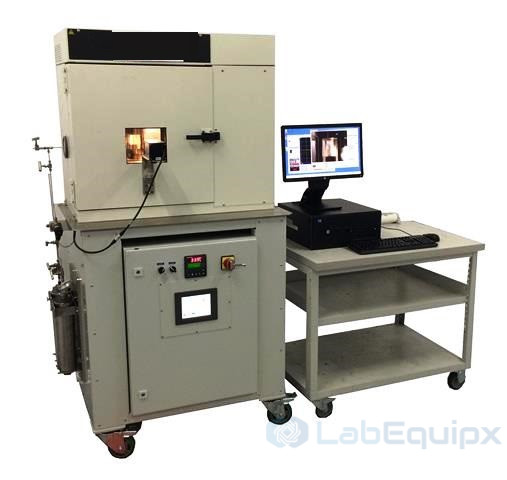

The Hydrates Studies System is a mercury-free apparatus for gas hydrate equilibrium measurements and inhibitor performance assessment. It holds the test fluids in a 60 cc visual cell at pressures up to 3,000 psi and temperatures from -20 °C to 150 °C, and records pressure, volume and temperature while hydrates form. The system sits in the Coretest hydrates group, which studies where hydrates form and how fast they build under high pressure and low temperature.
How it works
Four methods are available. In the isochoric method the cell volume is held constant; in the isobaric method pressure is held constant; in the isothermal method temperature is held constant. The fourth method is visual. The cell is made of synthetic sapphire (Al2O3) and allows 360° viewing along its full length, so nucleation and growth can be observed directly. The same cell supports optical measurements that use coherent or non-coherent light to characterize mixtures.
A magnetic drive stirs the sample. Temperature is regulated to ±0.1 °C and measured with 0.1 °C accuracy. Pressure accuracy is 0.1% of full scale, and volume accuracy is 0.01 ml. Power supply is 220 VAC, 50 Hz. Results guide inhibitor selection and flow assurance work.
What is included
- Synthetic sapphire visual cell, 60 cc, 3,000 psi
- Magnetic drive stirring mechanism
- Temperature regulation, -20 °C to 150 °C
- Pressure, volume and temperature measurement
Specify for your project
- Gas and liquid composition, including any inhibitor to be tested
- Test methods required: isochoric, isobaric, isothermal, visual
- Pressure and temperature program within the listed ratings
- Optical measurement and light source, if required
- Data acquisition and software: stated in the project datasheet
- Power supply, if other than 220 VAC, 50 Hz
This description defines the product family. Guaranteed performance, included hardware, exclusions, interfaces and acceptance criteria are stated only in the project-specific technical proposal and approved datasheet.
Model: LEHYDREVAL
Technical data
- The specified pressure rating is 3,000 psi.
- The cell temperature can vary between -20°C and 150°C.
- The temperature regulation tolerance is ± 0.1°C.
- The test cell has a capacity of 60 cc.
- Volume readings have an accuracy of 0.01 ml.
- Pressure readings have an accuracy of 0,1% of full scale.
- The temperature measurement accuracy is 0.1°C.
- A magnetic drive operates the stirrer.
- The electrical supply is 220 VAC with a frequency of 50 Hz.
Operation and applications
- The controls make routine operation straightforward.
- Measurements provide accurate readings of volume, temperature and pressure.
- The entire sample remains visible for observation.
