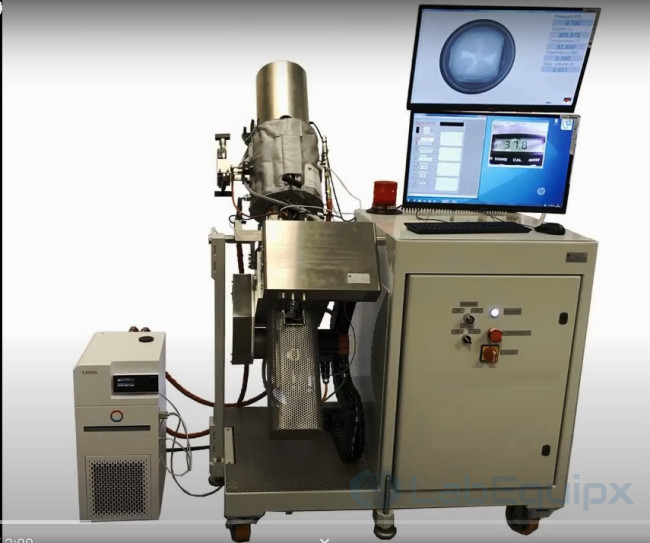

Hydrates HPHT visual cell
A sapphire end-cap gives a complete view of the sample throughout experiments with this high-pressure visual cell. It supports thermodynamic measurements and examination of phase behaviour at reservoir conditions. Applications cover multiphase hydrocarbon samples, including black oil and gas condensates, together with swelling tests, gas-hydrate investigations and supercritical-fluid studies.
An integrated pump operating at high pressure regulates and monitors both the pressure and volume of fluid in the cell. The same cell accommodates oil tests and gas-condensate tests. Oil measurements use the upright orientation. For condensates, the cell turns upside down to improve detection of the dew point.
Instrumentation includes sensors for temperature and pressure, electric heating and a magnetic stirring drive that delivers high torque. A video camera looks through the sapphire window to record sample behaviour. For controlled experiments below ambient temperature, a thermostatic bath connects to the jacket around the cell.
This description defines the product family. Guaranteed performance, included hardware, exclusions, interfaces and acceptance criteria are stated only in the project-specific technical proposal and approved datasheet.
Technical data
- The cell pressure rating is 10,000 psi.
- Temperature spans -20°C to 200°C (400°F).
- The regulation tolerance for temperature is ± 0.5°C.
- The test cell holds 300 cc, with volume measurement accuracy of 0.01 ml.
- Pressure measurement accuracy is 0,01% of full scale.
- The accuracy for measuring deposited liquid is ± 0.01 ml.
- Agitation uses a stirrer with magnetic drive.
- The power input requires 220 VAC at a frequency of 50 Hz.
Operation and applications
- Measurements provide accurate readings of temperature, volume and pressure.
- The complete sample can be viewed throughout an experiment.
- The stirrer provides effective agitation of the contents.
