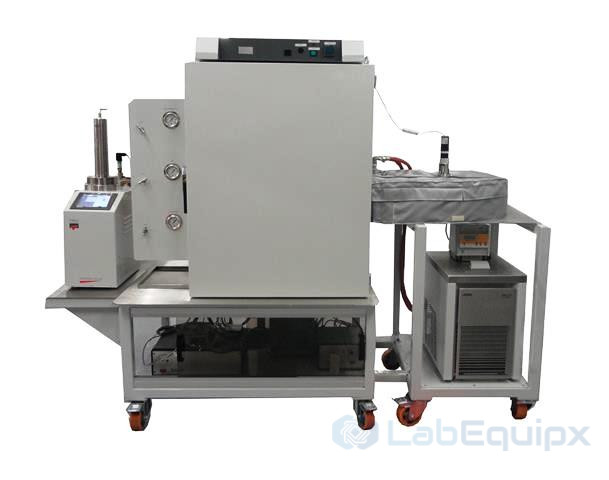

Solid Deposition Flow Loop

Function. Studies asphaltene and wax deposition under dynamic conditions that reproduce production and transportation flow.

Controlled. Flow rate, pressure and temperature.

Measured. Deposition rate and thickness versus flow conditions.

Pressure and temperature ratings, wetted materials, cell/loop geometry and instrumentation are configured per project. Guaranteed performance and included hardware are stated only in the project-specific technical proposal and approved datasheet.

Features

• Solid deposition loop 1 diameter: 9/16 inch
• Solid deposition loop 1 length: 1 meter
• Solid deposition loop 2 diameter: 1/4 inch
• Solid deposition loop 2 length: 6 meters
• Pressure: up to 15,000 psi Temperature range: -10°C to 200°C
• Sample volume: 300 to 1000 ml Flow rate: up to 1 L/min Temperature accuracy: 0.1 °C
• Material: Inconel / Hastelloy / PTFE
• Power supply: 220 VAC, 50 Hz

Benefits

• Wax Appearance Temperature
• Asphaltene Onset Pressure
• Minimum Inhibitor Concentration, Dispersant efficiency
• Deposition rate
• Compatibility assessment of crude oil blending, Titration
• Gel strength / Yield strength (only for Wax)
