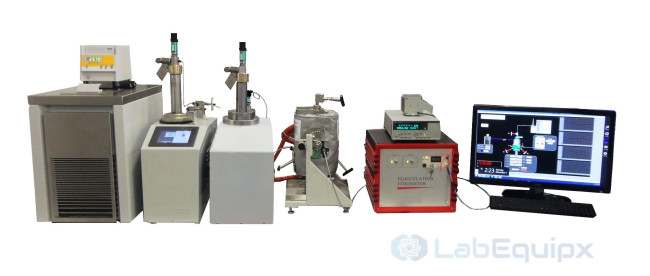

Atmospheric Flocculation Titrimeter (ASTM D7157)

The Atmospheric Flocculation Titrimeter (model CT-FA-AFT) determines the stability of crude oils and their blends by the automatic solvent titration method of ASTM D7157. It is used in flow assurance and asphaltene studies to predict the stability of a crude or a blend against asphaltene flocculation before oils are mixed, transported or processed.

How it works

A sample is placed in the 100 ml vessel and stirred magnetically. The titrant pump adds solvent at a controlled rate of up to 10 ml/min at atmospheric pressure and ambient temperature. A UV-visible detector follows the optical signal of the sample during titration, and the onset of flocculation is detected from the change in that signal. The titration sequence runs automatically and the instrument reports the stability and flocculation parameters defined by ASTM D7157.

Wetted parts are stainless steel. The instrument is supplied for 220 VAC, 50/60 Hz, single phase.

What is included

• Titration vessel, 100 ml, with magnetic stirring
• Titrant pump, up to 10 ml/min
• UV-visible detector
• Automated titration control

Specify for your project

• Sample types: crude oils, blends, and the range of viscosities to be handled
• Solvents and titrants to be used, for pump and wetted-part compatibility
• Expected sample throughput
• Electrical supply at site if different from 220 VAC, 50/60 Hz
• Whether measurements under pressure are also required, in which case the related High-Pressure Flocculation Titrimeter applies

This description defines the product family. Guaranteed performance, included hardware, exclusions, interfaces and acceptance criteria are stated only in the project-specific technical proposal and approved datasheet.

Features

• Standard: ASTM D7157
• Pressure: atmospheric
• Temperature range: ambient
• Vessel volume: 100 ml
• Titrant pump flow rate: up to 10 ml/min
• Sample mixing: magnetic type
• Wetted parts: Stainless steel
• Detection wavelength: UV-visible
• Electrical: 220 VAC 50/60 Hz 1 phase

Benefits

• Fully automated apparatus
• Rapid, accurate and reproducible data
