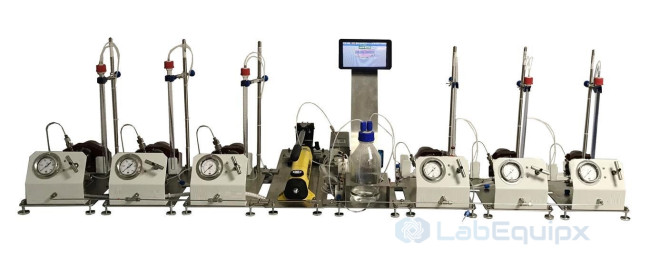

Overburden Spontaneous Imbibition and Drainage System

  • The Overburden Spontaneous Imbibition and Drainage System LEOSID determines the end points of spontaneous drainage and spontaneous imbibition curves on a core held under overburden stress. These end points are used together with forced-displacement curves in wettability evaluation. The overburden load keeps the sample under a stress state that reflects reservoir conditions.

    How it works

    The saturated core, 1 or 1.5 inches in diameter and up to 3 inches long, is placed in the cell and loaded to an overburden pressure of up to 10,000 psi. It soaks in the test fluid at ambient temperature. The fluid expelled from the core collects in a burette with a readable volume of up to 20 cc, and core saturation is resolved to 0.1 cc. Overburden stress and soak conditions are the controlled variables.

    A fluid brushing mechanism speeds up the expulsion, so the test is shorter than a standard Amott test. The expulsion itself stays spontaneous, driven only by molecular attraction forces. The standard system tests one core; up to six cores can be run at the same time on request.

    ParameterValue
    Number of core samples1 (up to 6 on request)
    Core diameter1 in or 1.5 in (other on request)
    Core lengthUp to 3 in
    Overburden pressureUp to 10,000 psi
    TemperatureAmbient
    Readable burette volumeUp to 20 cc
    Core saturation accuracy0.1 cc

    What is included

    • Overburden cell for one core (up to 6 on request)
    • Burette with readable volume up to 20 cc
    • Fluid brushing mechanism
    • Overburden pressure rating to 10,000 psi

    Specify for your project

    • Number of cores run together, 1 to 6
    • Core diameter (1 in, 1.5 in or other) and length, up to 3 in
    • Overburden pressure, up to 10,000 psi
    • Test fluids and expected expelled volume, within 20 cc
    • Site power: 110 or 220 VAC, 50/60 Hz

    This description defines the product family. Guaranteed performance, included hardware, exclusions, interfaces and acceptance criteria are stated only in the project-specific technical proposal and approved datasheet.

    • Overburden Spontaneous Imbibition and Drainage System
  • Technical characteristics

    • The standard arrangement processes 1 core; capacity for as many as 6 is on request.
    • Accepted specimen diameters are 1 inch or 1.5 inches; alternatives are on request.
    • The accepted specimen length reaches 3 inches.
    • The upper limit for applied overburden is 10,000 psi.
    • Tests run at ambient temperature.
    • The burette permits readings through a volume of 20 cc.
    • Core saturation measurements have a volume accuracy of 0.1 cc.
    • Provide 110-220 VAC electrical service at a frequency of 50/60 Hz.

    Operation and measurement

    • Applying overburden reproduces reservoir confinement during the test.
    • Fluid brushing speeds expulsion relative to a conventional Amott test. Molecular attraction alone drives the expulsion process.
    • An arrangement for processing cores simultaneously is on request.
