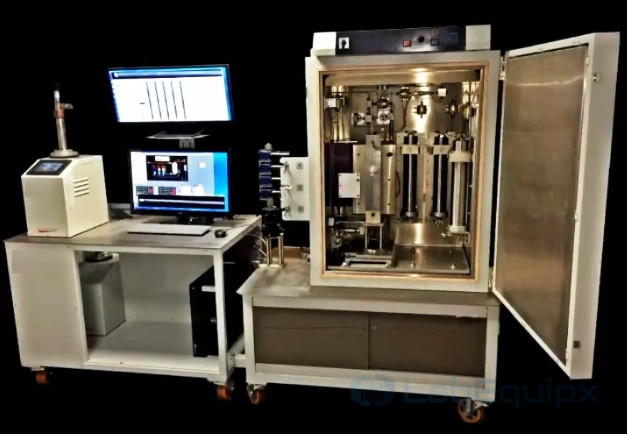

Rising Bubble Apparatus

Function. Determines the minimum miscibility pressure (MMP) of a gas phase in oil by the rising-bubble method.

Controlled. Cell pressure and temperature.

Measured. Bubble shape/behavior; minimum miscibility pressure.

Pressure and temperature ratings, wetted materials, modules and instrumentation are configured per project. Guaranteed performance and included hardware are stated only in the project-specific technical proposal and approved datasheet.

Features

• Working Pressure : 10,000 psi (700 bar)
• Working Temperature : 175°C (350 F)
• Sightglass viewing area : 230 mm x 8 mm
• Internal section : 5 mm x 1 mm
• Needle tip diameter : 0.91 mm
• Material : Stainless steel, sapphire
• Fluids : Water, oil, HC gas, CO2, solvent
• Electrical requirements : 220 VAC- 50/60 Hz - 1 phase

Benefits

• Fast results
• Visual observation
• Less expensive that slim tube method
• Minimal fluid sample required
