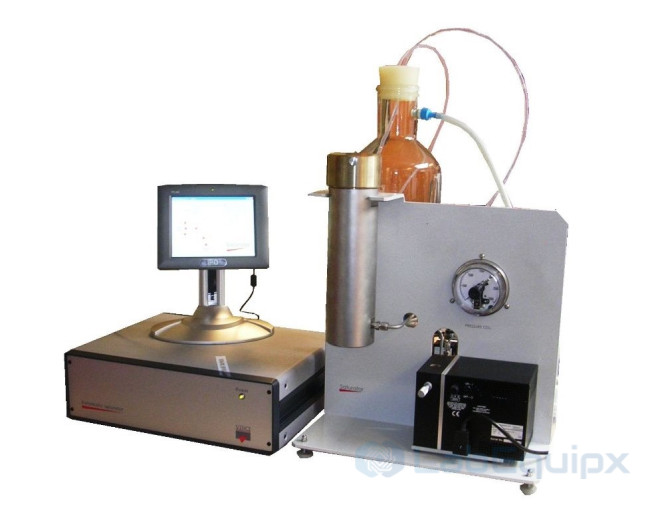

Automated Saturator

Function. Performs sequential vacuum and saturation cycles on plug and whole-core samples automatically.

Controlled. Automated vacuum/saturation cycles.

Measured. Saturation state.

Sample size, capacity, materials, tooling and instrumentation are configured per project. Guaranteed performance and included hardware are stated only in the project-specific technical proposal and approved datasheet.

Features

• Max saturating pressure: 2,000 psi
• Cell diameter: 58 mm
• Cell height: 300 mm
• Wetted materials: 316 Stainless steel
• Saturant: water, brine, oil or other liquids
• Power supply: 110-220 VAC, 50 or 60 Hz

Benefits

• Rapid and efficient saturation
• Can accomodate plug size sample and full sized core sample in option
• Automated operations
• Loading carrier for easy loading
• Dead volume sets to minimize volume of saturant
• Simple and robust
