Apparatus for Corrosion Studies

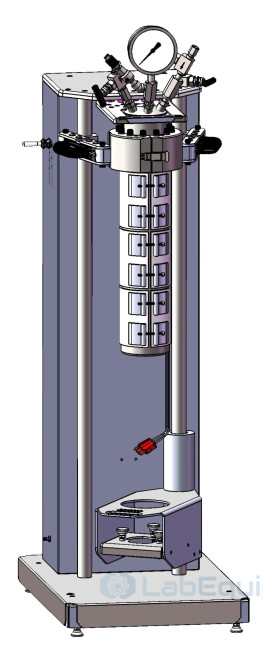

  • The corrosion study vessel supports extended testing of zirconium alloy specimens in aqueous media near the critical point of water. Test durations can reach 4000 hours. Its non-stirred, fixed head construction provides a volume of 3.7 liters, with maximum working limits of 450 °C and 275 bar.

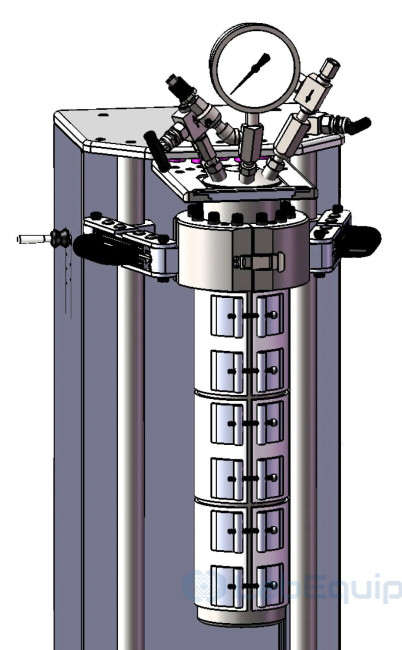

    Three clamp-on band heaters supply heat to the vessel. An internal multipoint temperature sensor allows the control system to maintain ± 1 °C temperature uniformity across a 30 cm working zone centered on the vessel's vertical axis. The controller regulates the power supplied to each of the three heaters independently to satisfy the tight uniformity requirement.

    Valves mounted in the head allow inert-gas purging before a test begins and periodic withdrawal of vessel contents during the test. The controller records both temperature and pressure throughout the run, providing a continuous test record alongside the independent heater regulation.

    This description defines the product family. Guaranteed performance, included hardware, exclusions, interfaces and acceptance criteria are stated only in the project-specific technical proposal and approved datasheet.
