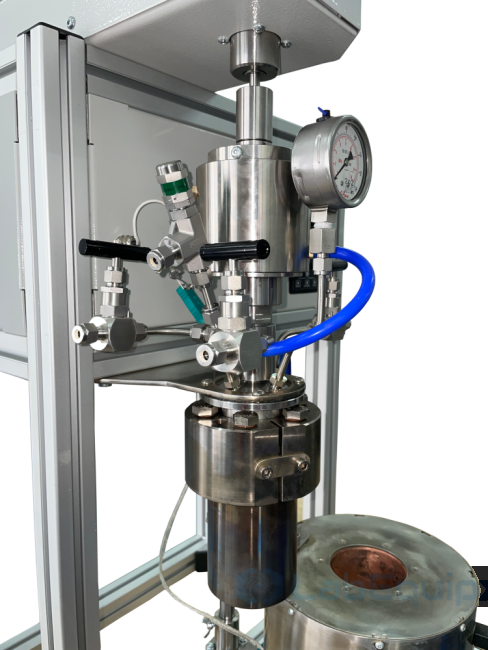

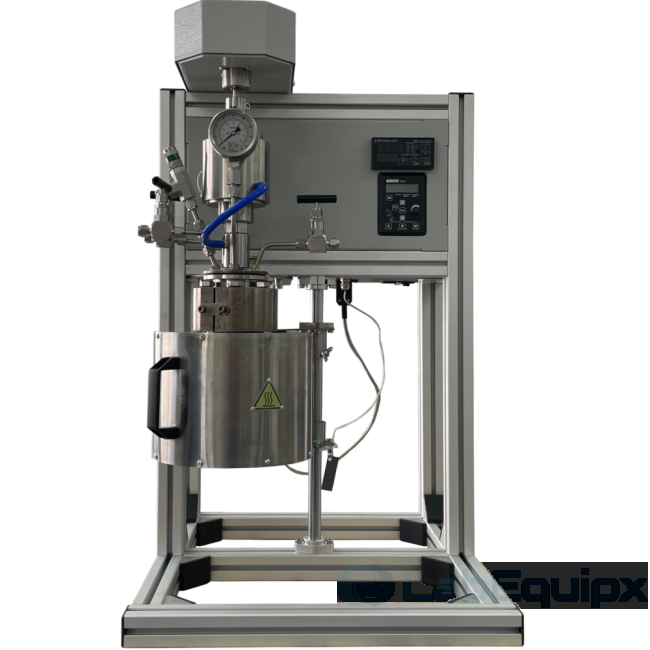

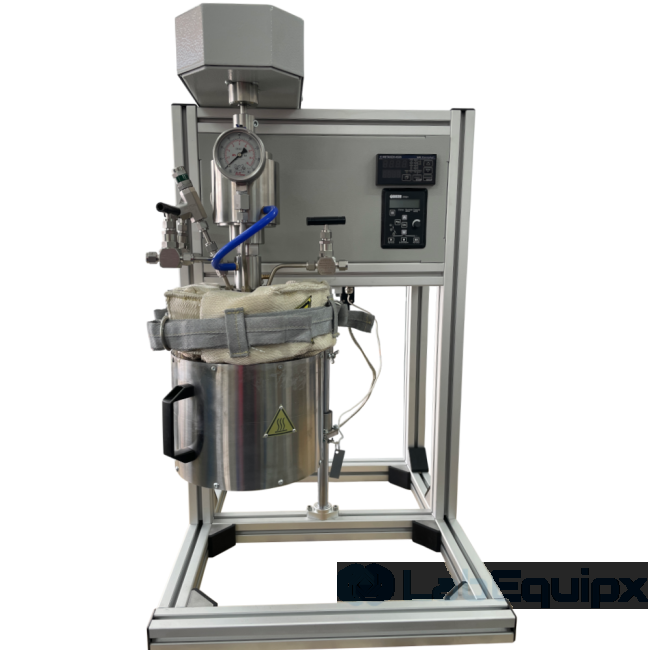

Laboratory Chemical Reactor

The Laboratory Chemical Reactor LELCRRVH0121 (autoclave) is designed for conducting experimental work with aggressive organic and non-aggressive inorganic substances at elevated temperatures and pressures.

It allows heating substances placed inside the reactor to the desired temperature and maintaining its value for a long time, as well as controlling temperature and pressure parameters necessary for predicting experiment behavior.

The reactor is designed for research at pressures up to 150 bar and temperatures up to 500°C. Mixing of substances is carried out using a paddle stirrer (propeller).

Main characteristics:

• Internal volume, mL - 341
• Working pressure, MPa - 15
• Working temperature, °C - 500
• Agitator speed, rpm - 1500
• Material of construction - HC276 (ХН65МВ)
• Power, kW - 2.5
