Top 100 Autoclave

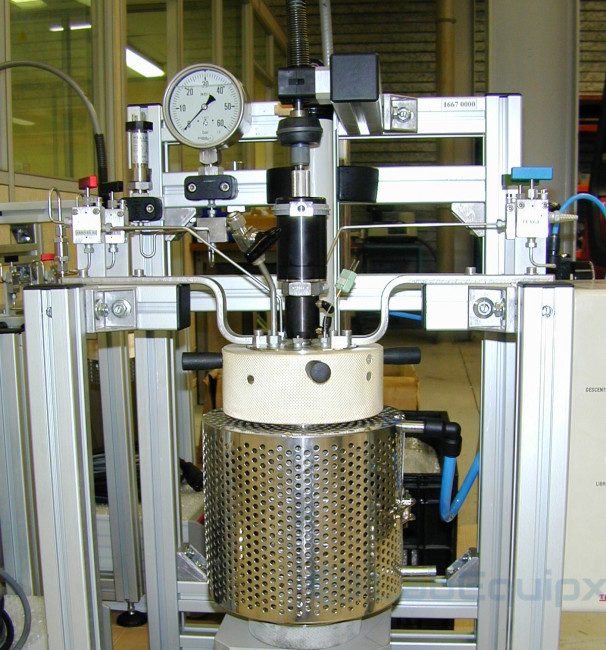

The Top 100 Autoclave LETOP100A is a pressure vessel for laboratory work with larger charges, covering volumes between 700 and 1500 ml. Research and process development laboratories use it when a reaction or test needs more material than a small benchtop vessel can hold, while keeping the quick opening and closing of the Top range. It is the large-volume member of the Top range, so it is delivered as a framed unit rather than as a loose vessel.
Design
The autoclave has two main parts: a Top 100 head and a body. One Top 100 head is compatible with many bodies of different volumes, so a laboratory can change working volume within the 700 to 1500 ml range by changing the body only, and keep the same head with its connections. The closure is built for quick and easy opening and shutting, which shortens the time between runs for loading, cleaning and sampling. The vessel is compact for its volume. Because of its weight, it is delivered as standard on an aluminium profile chassis, which carries the vessel and makes handling on the bench or floor safer.
Pressure rating, temperature rating and wetted material for the Top 100 are confirmed per project. These values are defined for each order in the project datasheet.
What is included
- Top 100 head
- Body of the selected volume
- Aluminium profile chassis, standard
Specify for your project
- Working volume within 700 to 1500 ml
- Number of bodies to be used with one head
- Working pressure and temperature
- Material of body and head, and medium
- Heating, stirring and instrumentation required
This description defines the product family. Guaranteed performance, included hardware, exclusions, interfaces and acceptance criteria are stated only in the project-specific technical proposal and approved datasheet.
