Laboratory Autoclave LASET100 Series
Send a request
Laboratory Autoclave LASET100 Series
The Laboratory Autoclave LASET100 Series, LELASET100, is a 100 cm3 high pressure autoclave with a PTFE cup as standard. Chemistry and materials laboratories use it for hydrothermal and solvothermal work at 500 bar and 250 °C where the medium must not touch the metal body. It is supplied either as a standalone autoclave or as a reactor system mounted on a frame.
Design

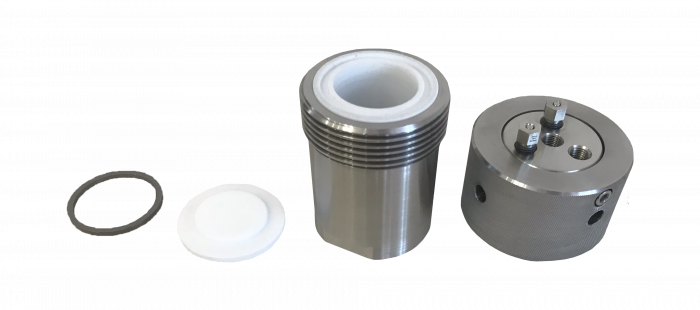

The lid has two parts joined by a bearing assembly: a threaded ring and a central part. The ring is tightened while the central part, with its gauge, sensor, tubes and valves, stays still. The thread carries a protective coating for easy tightening and lower wear. The inner bore is 40 mm in diameter and 80 mm high. A cylindrical insert in the bottom of the body pushes the PTFE cup out after heating, when thermal expansion makes it hard to remove. The heating jacket wraps the body closely to cut heat loss, and a protective jacket over it keeps the operator from burns and holds insulation. Parts are machined on CNC machines for precise fitting.
- Pressure: working 500 bar, maximum 550 bar
- Temperature: working 250 °C, maximum 270 °C
- Volume: 100 cm3
- Seals: graphite, VITON or PTFE; cover threaded or bolted
What is included
- Assembled autoclave, PTFE cup 3 pcs
- 1/8 in needle valves 2 pcs, rupture membranes 2 pcs, pressure gauge or sensor
- Heating jacket, control panel, frame, documentation package
Options
Magnetic stirrer, sampling line, sapphire window, tilt mechanism with 180° overturn, touch control panel, Hastelloy or titanium valves, actuated valves, process software and remote control.
Specify for your project
- Working pressure and temperature within 500 bar and 250 °C
- Body and lid material: Hastelloy C-276, titanium or SS316; sapphire and borosilicate glass bodies have lower ratings, on request
- Seal material and cover connection
- Standalone autoclave or frame-mounted system
- Options: stirrer, sampling, window, tilt
This description defines the product family. Guaranteed performance, included hardware, exclusions, interfaces and acceptance criteria are stated only in the project-specific technical proposal and approved datasheet.
Characteristics
- Working pressure (bar) 500
- Maximum pressure (bar) 550
- Operating temperature (°C) 250
- Maximum temperature (°C) 270
- Material of housing and cover SS 316/Has C276/Titan
- Volume (cm3) 100
- Inner diameter (mm) 40
- Inner height (mm) 80
- Sealing material Graphite/VITON/PTFE
- Type of cover connection Threaded/Bolted
Options
- Teflon cup (used for aggressive media)
- Magnetic stirrer
- Sampling line
- Sapphire window
- Tilt mechanism (180° overturn)
- Touch control panel
- Hastelloy/Titan hardware
- Controlled hardware (pneumatic/electric)
- Process automation (process-specific software)
- Remote control of the installation
Features

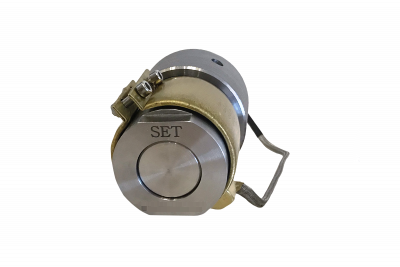

- The small volume of the autoclave allows for quick heating. The heating jacket is located as close as possible to the reactor body (essentially enveloping it). Heat losses in this configuration are minimal.

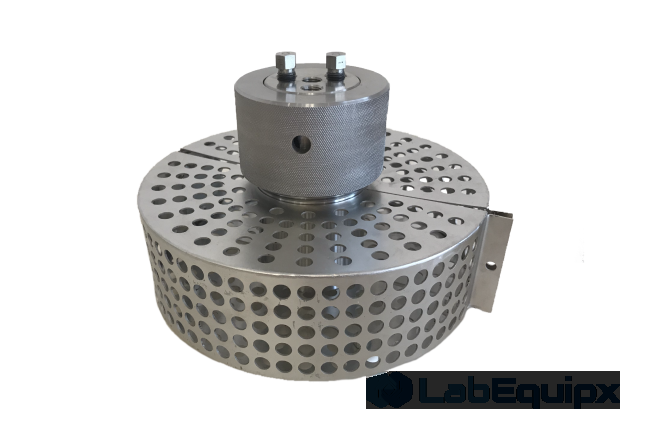

- A protective jacket for the heating jacket eliminates the possibility of the Operator getting burned and also allows for thermal insulation to be placed around the reactor.
- An insert at the bottom of the reactor allows for easy removal of the PTFE cup from the autoclave vessel.
Easy and Reliable in Operation

Thanks to precision-fitted parts, the autoclave is very simple and convenient to operate. The thread has a special coating that ensures easy tightening of the cover and increases the wear resistance of the rubbing surfaces.

Threaded Cover and Body

The cover consists of two independently rotating parts: the central and threaded parts. The components of the cover are connected by a bearing assembly. Thanks to this design, the hardware (pressure gauge, pressure sensor, high-pressure tubes, and valves) can remain stationary while tightening the cover.
Flexibility in Configurations

Any autoclave from the LELASET100 line can be produced in a custom configuration to meet the requirements of the Customer. Our engineers can adapt the installation and provide the best technical solution for your laboratory.
We Stand Behind Our Quality

LELASET100 chemical reactors are produced on machines with numerical program control, which allows for precision fitting of parts. After production, all products undergo internal quality control and factory testing. The entire line of LELASET100 autoclaves is covered by a 12-month warranty from the date of commissioning. In addition to the main warranty, our company provides post-warranty technical support.
Insert for Removing the Cup

To quickly and easily remove the Teflon cup at the bottom of the reactor, the design includes a special insert. To remove the cup, simply press on the cylindrical insert.

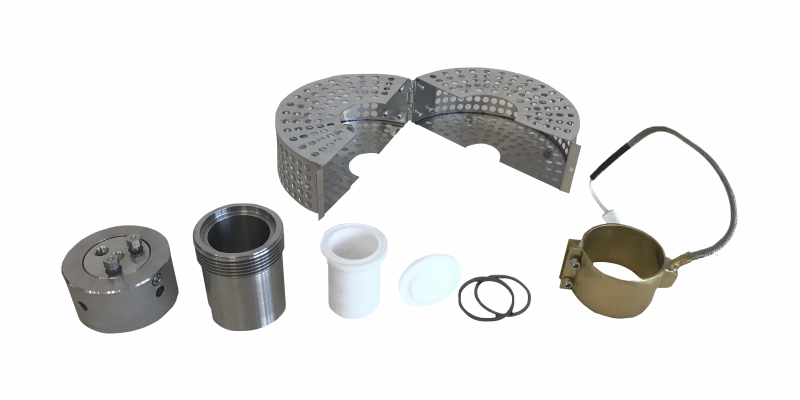

The delivery set includes:
- LELASET100 Series laboratory autoclave assembled
- Needle valve 1/8'' double ferrule - 2 pcs.
- Rupture membrane - 2 pcs.
- Pressure gauge/pressure sensor - 1 pc.
- Heating jacket - 1 pc.
- PTFE cup - 3 pcs.
- Control panel - 1 pc.
- Frame for fixing components - 1 pc.
- Documentation package (Passport, User Manual, Quality Certificate, Factory Test Report, documentation for components).
Hardware
The hardware installed on LELASET100 reactors meets high requirements and international standards for high-pressure hardware. The installation comes standard with double ferrule compression fittings and valves. Upon request, hardware from any brand can be installed for the Customer.



Sapphire cell Mixing device High-pressure precision pump The reactor can be equipped with sapphire windows. These windows allow for visual observation of processes occurring under thermobaric conditions. The reactor vessel can be entirely made of sapphire; pressure and temperature ratings of sapphire vessels are lower and are given on request. A mixing device with a magnetic coupling provides efficient mixing of fluids with different viscosities under conditions of high pressure and temperature. A plunger precision high-pressure pump delivers substances with a maximum pressure of 1000 bar and an accuracy of 0.0005 ml.


Control block Cooling circuit Sampling system The control unit allows for monitoring and recording of experimental parameters during the reaction process. The control unit can be equipped with either a touchscreen or can output data to a PC. The cooling system is designed for fast and efficient cooling of the reactor contents. The system can be cooled by air, liquid, or a heat transfer fluid. The cooling system is made of materials that are corrosion-resistant in the autoclave's working environment. One of the most common options in medium-sized reactors. The sampling system consists of a dip tube, three shut-off valves, and a sampling cylinder.


Material containe Heating jacket Rotary mechanism The material container provides convenient loading and easy removal of material from the reactor housing. The size of the cells can be changed upon the customer's request. The container is typically made of mesh material with a 1x1 mm cell. The heating jacket can be mounted directly on the reactor housing. Additionally, the heating element can be installed on a special heat-conducting metal sleeve. The gap between the sleeve and the reactor is minimal. The rotary mechanism is necessary for convenient unloading and loading of materials. Additionally, the rotary mechanism allows for flipping the container 180 degrees.
