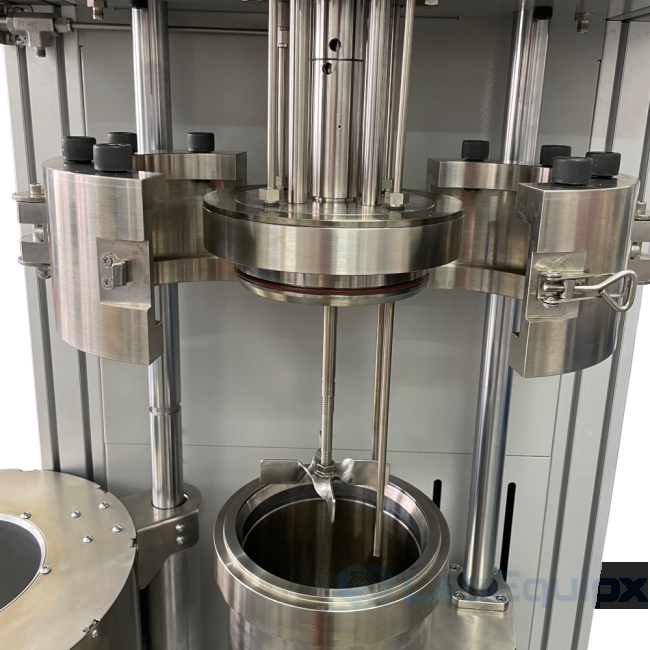

Laboratory Autoclave

The laboratory autoclave LELAHMRA50005 is designed to create high temperature and pressure values inside the vessel. It allows real-time monitoring of temperature and pressure parameters required for predictable experiment behavior.

The laboratory autoclave is designed for conducting research at pressures up to 5 MPa and temperatures up to 200°C, with the ability to mix the medium via a rotating stirrer with a direct drive. It is equipped with an electric lifting mechanism for the vessel.

Main specifications:

• Internal volume, ml - 5000
• Working pressure, MPa - 5
• Design pressure, MPa - 10
• Working temperature, °C - 200
• Agitator speed, rpm - from 20 to 100
• Materials of construction - Corrosion-resistant steel 12X18H10T, PTFE, PEEK, Viton
• Power consumption, kW - 4
