Chemical Reactor With Thermostat CRTSET1500 Series

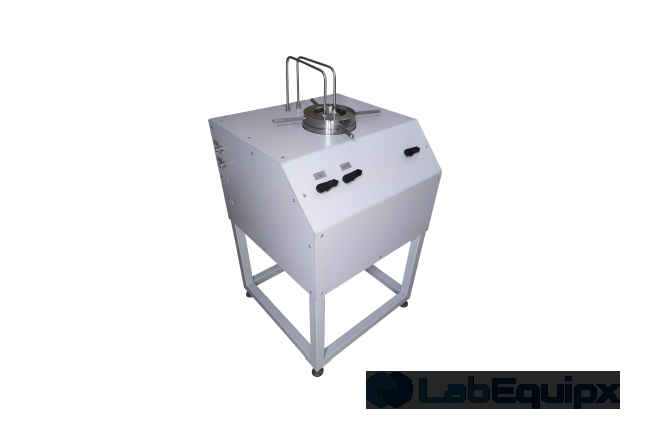

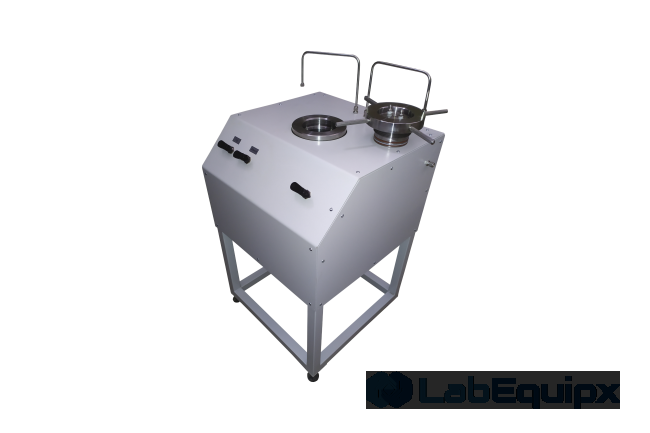

The Chemical Reactor With Thermostat CRTSET1500 Series, LESET1500, is a 2000 cm3 autoclave heated by a liquid thermostat instead of an electric jacket. Laboratories choose it for long experiments where the temperature must stay stable for a long time, such as aging and corrosion tests of material samples placed inside the vessel. The liquid heating system allows use up to 250 °C, and the working pressure is 400 bar.
How it works
A heat transfer fluid from the thermostat circulates in a removable liquid jacket around the body, giving a smooth ramp to the set point. Three temperature sensors control it: two on the body and one in the thermostat heating bath. A heat-insulating jacket around the bath and insulated lines cut heat loss. The lid is threaded and in two parts, so the inlet and outlet keep their position while the ring is tightened. Three sealing circuits seal the lid, and tightness does not depend on torque. The central segment of the lid is interchangeable for extra sensors or ports. Line valves sit on the front panel, a safety valve protects the outlet line, and all parts are inside a metal housing with only the control panel accessible. Software records data during the run.
- Pressure: working 400 bar, maximum 500 bar
- Temperature: working 250 °C, maximum 260 °C
- Volume: 2000 cm3, inner diameter 110 mm, height 210 mm
- Materials: SS 316, Hastelloy C-276 or titanium; seals graphite, VITON or PTFE
What is included
- Reactor, liquid thermostat, 10 L heat transfer fluid
- 1/4 in needle valves 2 pcs, safety valve, pressure gauge or sensor
- Control unit, frame, documentation set
Options
Magnetic stirrer, tilting mechanism, bottom ports, Teflon cup, material container, high-pressure pump, electric heating jacket, spark protection for the control unit and control of several units from one controller.
Specify for your project
- Working pressure and temperature within 400 bar and 250 °C
- Body and lid material
- Lid connection: threaded or bolted
- Sample containers and extra lid ports
- Hazardous area requirements for the control unit
This description defines the product family. Guaranteed performance, included hardware, exclusions, interfaces and acceptance criteria are stated only in the project-specific technical proposal and approved datasheet.
Specifications
- Working pressure (bar) 400
- Maximum pressure (bar) 500
- Working temperature (°C) 250
- Maximum temperature (°C) 260
- Body and lid material SS 316/Has C276/Titan
- Volume (cm3) 2000
- Internal diameter (mm) 110
- Internal height (mm) 210
- Seal material Graphite/VITON/PTFE
- Lid connection type Threaded/Bolted
Options
- Magnetic stirrer
- Tilting mechanism
- Bottom ports placement
- Teflon cup
- Material container
- High-pressure pump
- Electric heating jacket
Features
- The liquid heating jacket ensures a smooth ramp-up to the set temperature and precise temperature control throughout the experiment.
- The liquid jacket has a removable design, which allows for maintenance and cleaning of the components.
- The threaded lid easily seals the reactor and is easy to remove.
- The lines have additional insulation, which reduces heat loss and speeds up heating.
Lid sealing system

The autoclave lid has three sealing circuits. The special design of the seals allows for easy tightening of the lid, as the tightness is achieved not by tightening the lid. The sealing ring in the standard version is made of materials such as VITON and PTFE.

Pressure sensor
The pressure sensor transmits the recorded readings to the control unit, where they are processed and displayed on the PC screen.
Safety valve
The safety valve protects the system from mechanical damage caused by excessive pressure buildup. When the set parameters are exceeded, the valve releases excess pressure.
Heat insulating

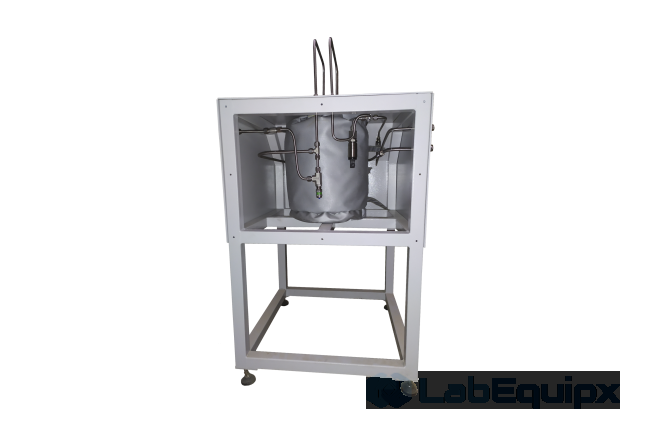

The heat-insulating jacket tightly surrounds the heating bath, which reduces heat loss and allows the set parameters to be reached more quickly.
Two-part lid

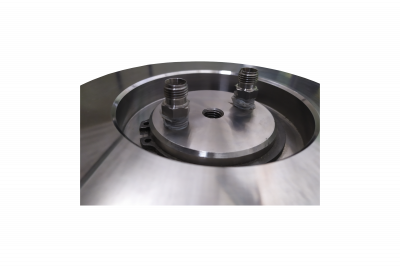

The autoclave lid consists of two parts. This is necessary for convenience during sealing of the unit. The central part of the lid can rotate independently of the threaded part, so the inlet and outlet on the lid do not change their position when tightened or loosened.
Special thread treatment

To ensure easy tightening and loosening of the autoclave lid, the threads undergo a special hardening process that eliminates the possibility of thread seizure. Additionally, a special coating is applied to the thread surface, increasing its service life.
Safe housing

All components of the unit are placed inside a special metal housing, which ensures safety when working with the unit. The operator only has access to the control panel.
Interchangeable central part

The laboratory reactor with a thermostat allows for conducting a wide range of experiments. In some experiments, additional sensors or ports may be required. To solve this problem, a lid with an interchangeable central segment has been developed. To replace the central part, it is necessary to uninstall the locking ring and remove the central segment from the threaded part.
The package includes:
- Chemical reactor CRTSET1500 Series fully assembled
- Liquid thermostat
- Heat transfer fluid for thermostat - 10 L
- Needle valve 1/4'' - 2 pcs.
- Safety valve - 1 pc.
- Pressure gauge/sensor - 1 pc.
- Heating jacket - 1 pc.
- Control unit - 1 pc.
- Frame for fixing components - 1 pc.
- Documentation set (passport, operating manual, quality certificate, factory test protocol, documentation for individual components).
The installation comes equipped with high-pressure and high-temperature double ferrule compression fittings and valves in the standard configuration. These fittings meet the highest requirements and guarantee safe operation throughout the entire service life.



Sapphire cell Mixing device High-pressure precision pump The reactor can be equipped with sapphire windows. These windows allow for visual observation of processes occurring under thermobaric conditions. The reactor vessel can be entirely made of sapphire. A mixing device with a magnetic coupling provides efficient mixing of fluids with different viscosities under conditions of high pressure and temperature. A plunger precision high-pressure pump delivers substances with a maximum pressure of 1000 bar and an accuracy of 0.0005 ml.


Control block Cooling circuit Sampling system The control unit allows for monitoring and recording of experimental parameters during the reaction process. The control unit can be equipped with either a touchscreen or can output data to a PC. The cooling system is designed for fast and efficient cooling of the reactor contents. The system can be cooled by air, liquid, or a heat transfer fluid. The cooling system is made of materials that are corrosion-resistant in the autoclave's working environment. One of the most common options in medium-sized reactors. The sampling system consists of a dip tube, three shut-off valves, and a sampling cylinder.


Material containe Heating jacket Rotary mechanism The material container provides convenient loading and easy removal of material from the reactor housing. The size of the cells can be changed upon the customer's request. The container is typically made of mesh material with a 1x1 mm cell. The heating jacket can be mounted directly on the reactor housing. Additionally, the heating element can be installed on a special heat-conducting metal sleeve. The gap between the sleeve and the reactor is minimal. The rotary mechanism is necessary for convenient unloading and loading of materials. Additionally, the rotary mechanism allows for flipping the container 180 degrees.
