Chemical Reactor with Stirrer CRSSET2000 Series

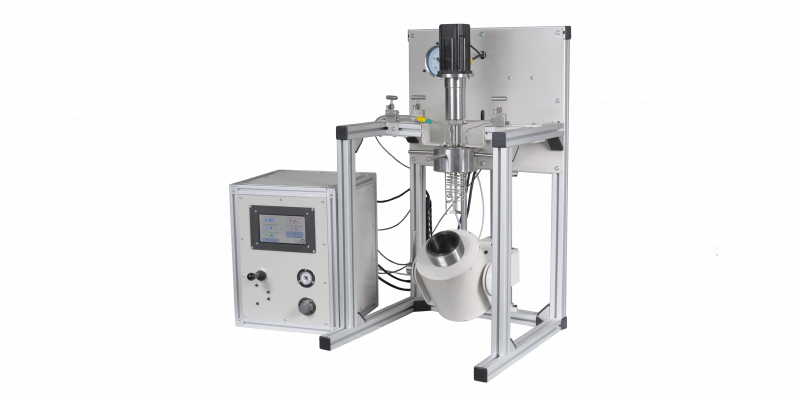

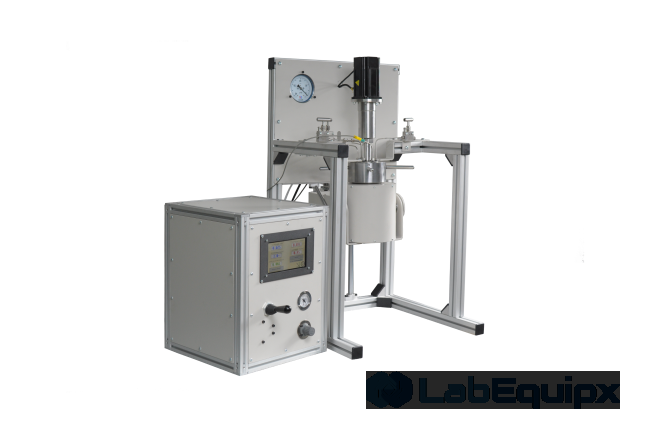

  • The Chemical Reactor with Stirrer CRSSET2000 Series, LECRSSET2000, is a 2000 cm3 autoclave with a magnetically coupled stirrer, a cooling coil, a pneumatic lift and a 180° tilting mechanism. It is built for mixed reactions at up to 500 bar working pressure and 600 °C working temperature. Process development laboratories use it where viscous or multiphase media need controlled agitation and fast heating and cooling.

    Design

    The magnetic coupling isolates the stirrer shaft from the motor, so the vessel has no shaft seal to the outside. The coupling sits far enough above the lid to stay cool. The stirrer uses a servo drive or stepper motor, chosen from the viscosity of the medium. The impeller is a blade type in several layouts, or a turbine. A coil of corrosion-resistant steel cools the product with water, liquid nitrogen or another coolant. Ceramic heaters sit close to the body under insulation and a protective jacket. The two-part lid turns on a bearing so the fittings stay in place during closing. The touch-screen control unit raises and lowers the body on the pneumatic lift and records pressure, temperature and stirrer speed. The body can rotate 180° during a run.

    • Pressure: working 500 bar, maximum 550 bar
    • Temperature: working 600 °C, maximum 650 °C
    • Volume: 2000 cm3, inner diameter 110 mm, height 220 mm
    • Materials: SS 316, Hastelloy C-276 or titanium; seals VITON or PTFE up to 250 °C, graphite or metal above 250 °C

    What is included

    • Reactor and LESETSMS magnetic stirrer assembly
    • 1/8 in needle valves 3 pcs, rupture membranes 2 pcs, pressure gauge or sensor
    • Heating jacket, cooling circuit, sampling system, tilt system, pneumatic lift
    • Control unit, aluminium frame, documentation kit

    Specify for your project

    • Working pressure and temperature within 500 bar and 600 °C
    • Body and cover material
    • Medium viscosity, for drive and impeller selection
    • Seal type for the working temperature; graphite or metal seals are required above 250 °C
    • Coolant for the cooling coil

    This description defines the product family. Guaranteed performance, included hardware, exclusions, interfaces and acceptance criteria are stated only in the project-specific technical proposal and approved datasheet.

    • Chemical Reactor with Stirrer CRSSET2000 Series
    • Chemical Reactor with Stirrer CRSSET2000 Series
    • Chemical Reactor with Stirrer CRSSET2000 Series
    • Chemical Reactor with Stirrer CRSSET2000 Series
    • Chemical Reactor with Stirrer CRSSET2000 Series
  • Characteristics:

    • Working pressure (bar): 500
    • Maximum pressure (bar): 550
    • Operating temperature (°C): 600
    • Maximum temperature (°C): 650
    • Body and cover material: SS 316/Has C276/Titan
    • Volume (cm3): 2000
    • Internal diameter (mm): 110
    • Internal height (mm): 220
    • Sealing material: VITON/PTFE up to 250 °C; Graphite/metal above 250 °C
    • Cover connection type: Threaded/On bolts.

    Options:

    • Teflon cup (used for aggressive media)
    • Magnetic stirrer
    • Sampling line
    • Sapphire window
    • Tilting mechanism (180° overturn)
    • Touch control panel
    • Hastelloy/Titan fittings
    • Controlled fittings (pneumatic/electric)
    • Process automation (process software)
    • Remote control of the installation.

    Features:

    • The LECRSSET2000 Series autoclave with a threaded connection has a specially designed cover. The central part of the cover can rotate independently of the external threaded part, making it easy and quick to seal the vessel.
    • The heating jacket with ceramic heating elements is installed with minimal clearance from the reactor body. A thermal insulation layer and a protective jacket are located around the heating elements.
    • Thanks to the rotating mechanism, the installation can be rotated 180 degrees during the experiment. If a sapphire window is installed, it becomes possible to visually observe the sample recovery process.

    Reactor Cover Seal:

    Chemical Reactor with Stirrer CRSSET2000 Series

    VITON or PTFE seals are used at temperatures up to 250 degrees Celsius; the 600 °C working temperature requires graphite or metal seals. PTFE and VITON seals have high chemical resistance in conditions of high temperature (up to 250 degrees Celsius) and high pressure. Graphite or metal seals are used for higher temperatures.

    Chemical Reactor with Stirrer CRSSET2000 Series

    Magnetic Stirrer:

    The installation is equipped with a stirring device with a magnetic drive, allowing electronic components to be isolated from the autoclave's internal environment. The magnetic coupling effectively transfers torque to the stirrer shaft.

    Pressure Sensor / Pressure Gauge:

    The Chemical Reactor with Stirrer LECRSSET2000 Series can be equipped with either an analog pressure gauge or a pressure sensor. The pressure sensor allows for recording pressure data during the experiment.

    Rupture Disc:

    The safety rupture disc is an integral part of each installation. It serves to prevent the destruction of the installation components. When the specified parameters are exceeded, the disc ruptures and releases the pressure that has built up inside the reactor.

    Valve:

    At the customer's request, the chemical reactor can be equipped with fittings from any production brand. The reactor is equipped with double ferrule compression fittings and valves as standard. These valves meet the highest safety and quality requirements.

    Temperature Sensor:

    The temperature sensor can be located either inside the reactor vessel or on the top cover (as close as possible to the medium). The type of temperature sensor used depends on the customer's requirements.

    Control Panel:

    The control panel is equipped with a touch screen. The control panel allows for lowering and raising the reactor body using a pneumatic lift. In addition, the control panel is capable of recording experiment data (pressure, temperature, stirrer shaft speed).

    Heating Jacket:

    The autoclave heating jacket is equipped with ceramic heating elements. To reduce heat loss, thermal insulation is located around the heating elements. The protective cover allows the operator to work safely with the installation.

    Swivel Mechanism:

    The reactor body is attached to a swivel mechanism that allows the reactor to be rotated 180 degrees. The rotation can be performed during the experiment.

    Aluminum Frame:

    All reactor components are fixed on an aluminum frame. The lightweight, durable, and long-lasting aluminum profile ensures ease of transportation and assembly.

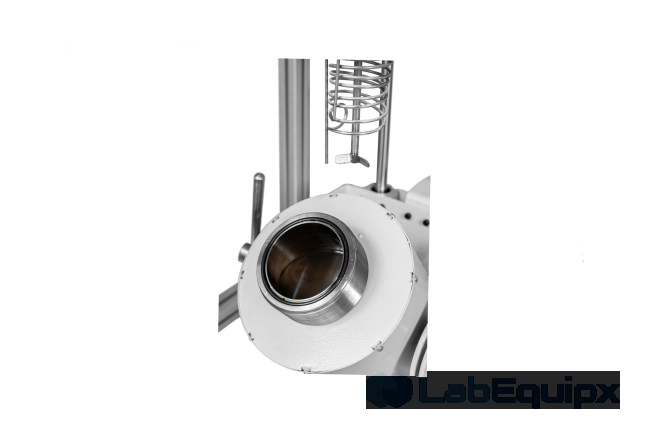

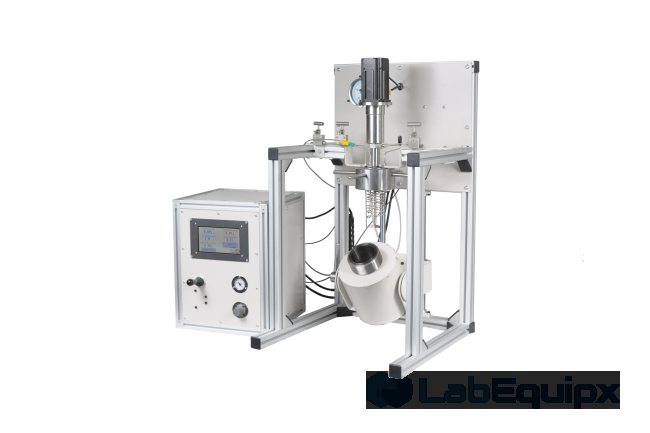

    Device for tilting the reactor body

    Chemical Reactor with Stirrer CRSSET2000 Series

    The reactor body can be tilted up to 180 degrees. Tilting, rotating, and flipping the body is possible during the experiment. Thanks to the ability to rotate the autoclave, loading and unloading components as well as the cleaning process is significantly facilitated.

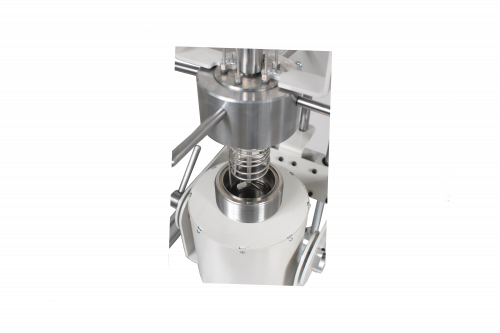

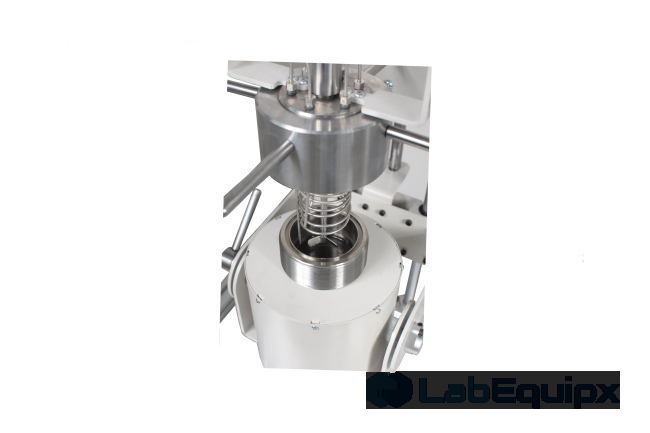

    Magnetic stirrer

    Chemical Reactor with Stirrer CRSSET2000 Series

    The chemical reactor is equipped with a magnetic stirrer. The transfer of torque is provided by a magnetic coupling. The design of the stirrer provides for the possibility of disassembling it for cleaning components. The magnetic coupling unit is located at a sufficient distance from the surface of the lid to ensure optimal temperature of the magnetic coupling.

    Fast heating and cooling

    Chemical Reactor with Stirrer CRSSET2000 Series

    The LECRSSET2000 Series autoclave is equipped with a heating jacket with ceramic heating elements and a cooling circuit. This allows for fast and precise attainment of the required temperature inside the reactor vessel.

    Two-piece cover

    Chemical Reactor with Stirrer CRSSET2000 Series

    The reactor lid consists of two parts: 1) threaded part and 2) central part. Both parts of the lid are connected by a bearing unit. This solution allows the threaded part to rotate independently of the central part. During the sealing of the system, all fittings and connectors can remain in place. The thread is coated with a special protective layer that prevents premature wear of the thread.

  • The delivery set includes:

    • LECRSSET2000 Series chemical reactor assembly
    • LESETSMS Series magnetic stirrer assembly
    • Double ferrule needle valve 1/8'' - 3 pcs.
    • Rupture safety membrane - 2 pcs.
    • Pressure gauge/pressure sensor - 1 pc.
    • Heating jacket - 1 pc.
    • Cooling circuit - 1 pc.
    • Sampling system - 1 pc.
    • Tilt system - 1 pc.
    • Pneumatic lifting mechanism - 1 pc.
    • Control unit - 1 pc.
    • Aluminum frame for component fixation - 1 pc.
    • Documentation kit (passport, operating manual, quality certificate, factory test protocol, documentation for component parts).

    The standard configuration of the equipment includes high pressure and temperature double ferrule compression fittings and valves. These fittings meet the highest requirements and guarantee safe operation throughout the service life.

  • Chemical Reactor with Stirrer CRSSET2000 Series
    Chemical Reactor with Stirrer CRSSET2000 Series
    Chemical Reactor with Stirrer CRSSET2000 Series
    Sapphire cell Mixing device High-pressure precision pump
    The reactor can be equipped with sapphire windows. These windows allow for visual observation of processes occurring under thermobaric conditions. The reactor vessel can be entirely made of sapphire. A mixing device with a magnetic coupling provides efficient mixing of fluids with different viscosities under conditions of high pressure and temperature. A plunger precision high-pressure pump delivers substances with a maximum pressure of 1000 bar and an accuracy of 0.0005 ml.
    Chemical Reactor with Stirrer CRSSET2000 Series
    Chemical Reactor with Stirrer CRSSET2000 Series
    Chemical Reactor with Stirrer CRSSET2000 Series
    Control block Cooling circuit Sampling system
    The control unit allows for monitoring and recording of experimental parameters during the reaction process. The control unit can be equipped with either a touchscreen or can output data to a PC. The cooling system is designed for fast and efficient cooling of the reactor contents. The system can be cooled by air, liquid, or a heat transfer fluid. The cooling system is made of materials that are corrosion-resistant in the autoclave's working environment. One of the most common options in medium-sized reactors. The sampling system consists of a dip tube, three shut-off valves, and a sampling cylinder.
    Chemical Reactor with Stirrer CRSSET2000 Series
    Chemical Reactor with Stirrer CRSSET2000 Series
    Chemical Reactor with Stirrer CRSSET2000 Series
    Material containe Heating jacket Rotary mechanism
    The material container provides convenient loading and easy removal of material from the reactor housing. The size of the cells can be changed upon the customer's request. The container is typically made of mesh material with a 1x1 mm cell. The heating jacket can be mounted directly on the reactor housing. Additionally, the heating element can be installed on a special heat-conducting metal sleeve. The gap between the sleeve and the reactor is minimal. The rotary mechanism is necessary for convenient unloading and loading of materials. Additionally, the rotary mechanism allows for flipping the container 180 degrees.
