Chemical Reactor CRSET50 Series

  • The Chemical Reactor CRSET50 Series, model LECR50, is a 50 cm3 high pressure reactor for small-scale synthesis and testing with aggressive media. The small volume reaches working conditions quickly and limits stored energy, so laboratories can run short experiments at 500 bar and 250 °C on a bench. Users work with alkalis, acids, organic solvents, ethers, hydrogen and supercritical fluids.

    Design

    The body and cover are SS 316, Hastelloy C-276 or titanium, with an internal diameter of 35 mm and internal height of 55 mm. The cover is threaded or bolted. In the threaded version the central part of the lid turns freely, so the valves and lines on the lid do not rotate during closing. Seals are graphite, VITON or PTFE. A ceramic heating jacket with insulation and a protective cover surrounds the body, and the thermocouple sits in a thin-walled pocket in the lid close to the medium. A rupture disc on the frame vents overpressure away from the operator. A cylindrical insert in the bottom pushes out the Teflon cup after heating. The vessel is mounted on a swivel guide on an aluminium frame.

    • Pressure: working 500 bar, maximum 550 bar
    • Temperature: working 250 °C, maximum 270 °C
    • Volume: 50 cm3

    What is included

    • Reactor assembly, 1/8 in needle valves 2 pcs, rupture membranes 2 pcs
    • Pressure sensor or pressure gauge, heating jacket, control unit, frame

    Options

    Teflon cup, magnetic stirrer, sampling line, sapphire window, tilt mechanism with 180° rotation, touch control panel, Hastelloy or titanium valves, pneumatic or electric actuated valves, process software, remote control and a precision pump up to 1000 bar.

    Specify for your project

    • Working pressure and temperature within 500 bar and 250 °C
    • Body and cover material: SS 316, Hastelloy C-276 or titanium
    • Seal material: graphite, VITON or PTFE
    • Cover connection: threaded or bolted
    • Options: stirrer, sampling, window, tilt

    This description defines the product family. Guaranteed performance, included hardware, exclusions, interfaces and acceptance criteria are stated only in the project-specific technical proposal and approved datasheet.

    • Chemical Reactor CRSET50 Series
    • Chemical Reactor CRSET50 Series
    • Chemical Reactor CRSET50 Series
    • Chemical Reactor CRSET50 Series
  • Specifications

    • Operating pressure (bar) 500
    • Maximum pressure (bar) 550
    • Operating temperature (°C) 250
    • Maximum temperature (°C) 270
    • Body and cover material SS 316/Has C276/Titan
    • Volume (cm3) 50
    • Internal diameter (mm) 35
    • Internal height (mm) 55
    • Sealing material Graphite/VITON/PTFE
    • Cover connection type Threaded/Bolted

    Options

    • Teflon cup (used for aggressive media)
    • Magnetic stirrer
    • Sampling line
    • Sapphire window
    • Tilt mechanism (180° rotation)
    • Touch control panel
    • Hardware made of Hastelloy/Titan
    • Controlled hardware (pneumatic/electric)
    • Process automation (software for the process)
    • Remote control of the installation.

    Features

    • Due to its small volume, the reactor is capable of reaching operating parameters very quickly. This significantly reduces the experimental time and ensures accelerated production of the reaction product. Working with small volumes is safer.
    • Small-volume autoclaves allow the user to obtain a high-quality installation at a better price. In addition, achieving high pressure and temperature readings is easier in chemical reactors with smaller volumes. The smaller the volume, the greater the parameters.
    • The installation can be made in a desktop version, which allows significant space savings in the laboratory.

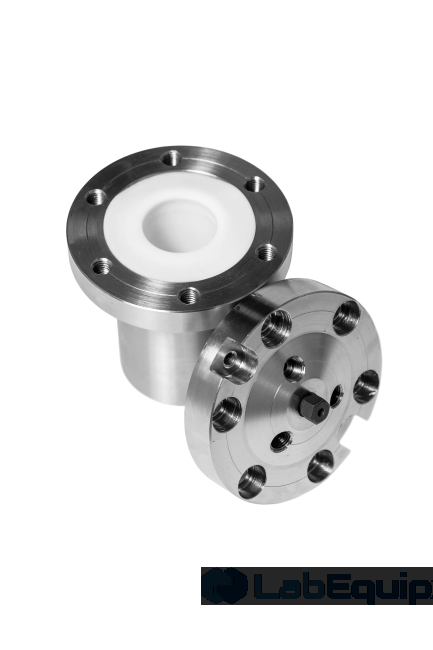

    Reactor lis sealing

    Chemical Reactor CRSET50 Series

    The reactor lid is made of SS 316, Hastelloy C-276 or titanium, with an optional Teflon coating on the inside, allowing for operation with aggressive media. The upper surface of the Teflon cup acts as a seal and provides unparalleled sealing.

    Chemical Reactor CRSET50 Series

    Rupture Disc

    A rupture disc is used to prevent the destruction of the reactor vessel. The rupture disc is installed on the frame in such a way that emergency pressure relief is safe for the operator.

    Pressure Sensor/Manometer

    The CRSET50 Series chemical reactor can be equipped with both an analog manometer and a pressure sensor. The pressure sensor allows for recording pressure data during the experiment.

    Valve

    Upon the Customer's request, the chemical reactor can be equipped with hardware from any manufacturer. As a standard, the reactor is equipped with double ferrule compression fittings and valves. These valves meet the highest safety and quality requirements.

    Temperature Sensor

    The temperature sensor is located as close as possible to the internal environment of the reactor. There is a special mounting location for the thermocouple in the reactor cover. The thickness of the metal at the installation location is minimized for the specified parameters.

    Heating Jacket

    The heating jacket is equipped with ceramic heating elements, thermal insulation, and a protective cover to reduce the likelihood of operator burns. Thanks to the thermal insulation, we were able to reduce heat losses during heating.

    Swivel Guide

    The housing of the chemical reactor is attached to a swivel guide. The swivel guide provides convenience in loading/unloading products from the reactor.

    Aluminum Frame

    All reactor components are fixed on an aluminum frame. The lightweight, durable, and long-lasting aluminum profile provides ease in transportation and assembly.

    Lid and body with thread

    Chemical Reactor CRSET50 Series

    In the case of a threaded connection of the lid, the central part of the reactor lid can rotate freely around its axis. This makes the vessel sealing process simple and fast, and the hardware is not subjected to rotation.

    Flexibility of configurations

    Chemical Reactor CRSET50 Series

    You can order a chemical reactor in a customized design. For example, you can choose the material for each component of the installation. The hardware used in our systems is extremely reliable, but upon request from the client, the system can be equipped with any hardware that meets the technical requirements. To do so, please fill out the questionnaire.

    WE ARE RESPONSIBLE FOR QUALITY

    Chemical Reactor CRSET50 Series

    A 12-month warranty from the date of commissioning applies to the entire line of CRSET50 autoclaves. In addition, we provide post-warranty technical support and free consultation on any questions that may arise during operation.

    Extracting a Teflon beaker

    Chemical Reactor CRSET50 Series

    Due to thermal expansion, extracting the beaker can be difficult. To solve this problem, a special insert is provided at the bottom of the housing, which makes it easy to extract the Teflon beaker!

  • The delivery set includes:

    • SET 50 Series chemical reactor assembly
    • Needle valve 1/8'' double ferrule - 2 pcs.
    • Rupture safety membrane - 2 pcs.
    • Pressure sensor/pressure gauge - 1 pc.
    • Heating jacket - 1 pc.
    • Control unit - 1 pc.
    • Frame for fixing components - 1 pc.
    • Documentation set (passport, user manual, quality certificate, factory testing protocol, documentation for component parts).

    Hardware

    As part of the standard equipment, the unit is equipped with double ferrule compression high pressure and high temperature fittings and valves. This hardware meets the highest requirements and ensures safe operation throughout the entire service life.

  • Chemical Reactor CRSET50 Series
    Chemical Reactor CRSET50 Series
    Chemical Reactor CRSET50 Series
    Sapphire cell Mixing device High-pressure precision pump
    The reactor can be equipped with sapphire windows. These windows allow for visual observation of processes occurring under thermobaric conditions. The reactor vessel can be entirely made of sapphire. A mixing device with a magnetic coupling provides efficient mixing of fluids with different viscosities under conditions of high pressure and temperature. A plunger precision high-pressure pump delivers substances with a maximum pressure of 1000 bar and an accuracy of 0.0005 ml.
    Chemical Reactor CRSET50 Series
    Chemical Reactor CRSET50 Series
    Chemical Reactor CRSET50 Series
    Control block Cooling circuit Sampling system
    The control unit allows for monitoring and recording of experimental parameters during the reaction process. The control unit can be equipped with either a touchscreen or can output data to a PC. The cooling system is designed for fast and efficient cooling of the reactor contents. The system can be cooled by air, liquid, or a heat transfer fluid. The cooling system is made of materials that are corrosion-resistant in the autoclave's working environment. One of the most common options in medium-sized reactors. The sampling system consists of a dip tube, three shut-off valves, and a sampling cylinder.
    Chemical Reactor CRSET50 Series
    Chemical Reactor CRSET50 Series
    Chemical Reactor CRSET50 Series
    Material containe Heating jacket Rotary mechanism
    The material container provides convenient loading and easy removal of material from the reactor housing. The size of the cells can be changed upon the customer's request. The container is typically made of mesh material with a 1x1 mm cell. The heating jacket can be mounted directly on the reactor housing. Additionally, the heating element can be installed on a special heat-conducting metal sleeve. The gap between the sleeve and the reactor is minimal. The rotary mechanism is necessary for convenient unloading and loading of materials. Additionally, the rotary mechanism allows for flipping the container 180 degrees.
