Chemical Flow Reactor CFRSET5000 Series

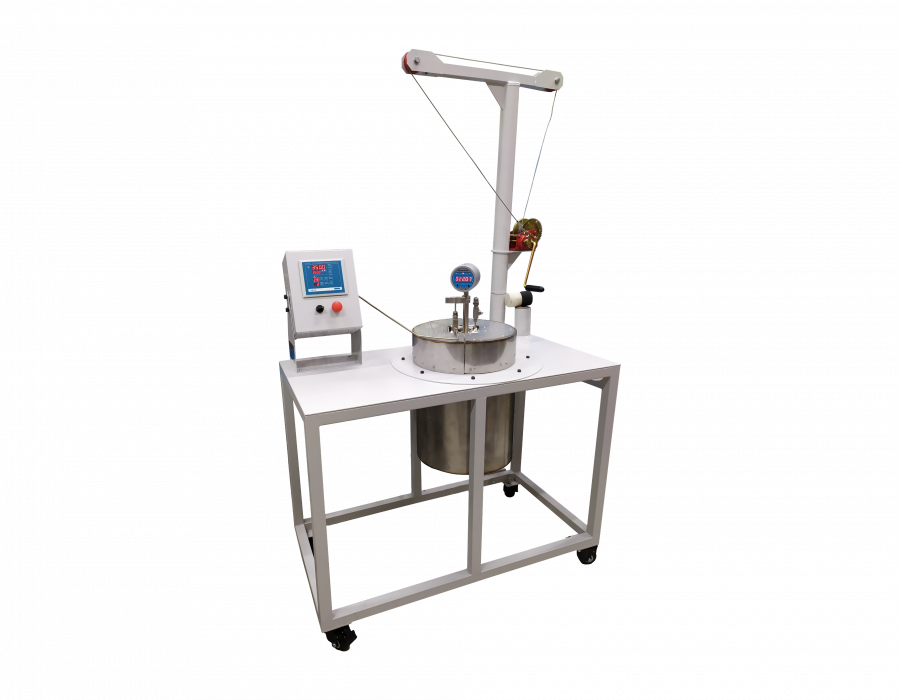

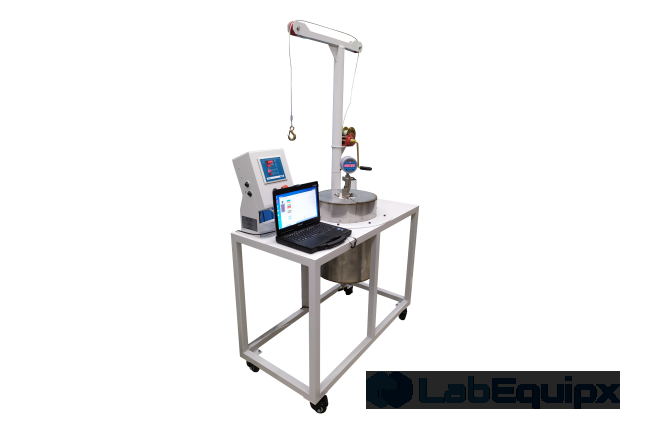

The Chemical Flow Reactor CFRSET5000 Series, LECFRSET5000 (family code LECFRSET), is a 5 liter bolted autoclave for long-term aging and corrosion tests of metal and other material samples under flowing media. Corrosion and materials laboratories place several samples at once on holders under the lid. The reactor holds thermobaric conditions for long periods at working conditions of 250 bar and 350 °C.
Design
The body and cover are SS 321, Hastelloy C-276 or titanium, with a bore of 160 mm and an internal height of 250 mm. Five ports on the lid and three at the bottom allow flow-through operation, with heat-resistant valves. Sample holders screw into the lid, and ceramic insulators on the horizontal bars keep each sample from touching the reactor metal. The bolted lid seals on a soft metal ring of copper, nickel or another metal, or on a graphite gasket. The flanges carry two sealing contours that can be used separately. The lid weighs about 40 kg and is raised and lowered by a mechanical lift. Insulation on the body and lid lowers heat loss and power demand. The heating control holds temperature fluctuation within 0.2 °C with deionized water, even in flow mode. A steel frame on braked wheels carries the reactor.
- Pressure: working 250 bar, maximum 300 bar
- Temperature: working 350 °C, maximum 400 °C
- Volume: 5000 cm3
- Seals: copper, graphite or PTFE
What is included
- Reactor, 1/4 in high-temperature needle valves 3 pcs, rupture membranes 2 pcs
- Pressure gauge or sensor, heating jacket, mechanical lift, frame
- Control unit with software, laptop, uninterruptible power supply
- High-pressure tube 6 m, lid sealing rings 5 pcs, documentation
Options
Circulation pump, magnetic stirrer, sampling line, sapphire window, 180° tilt, touchscreen panel, Hastelloy or titanium fittings, actuated valves, pneumatic lid lifting, automatic lid closure and remote control.
Specify for your project
- Working pressure and temperature within 250 bar and 350 °C
- Body and cover material
- Seal type: metal ring or graphite
- Number and size of samples
- Test duration and flow rate
This description defines the product family. Guaranteed performance, included hardware, exclusions, interfaces and acceptance criteria are stated only in the project-specific technical proposal and approved datasheet.
Characteristics:
- Working pressure (bar) 250
- Maximum pressure (bar) 300
- Working temperature (°C) 350
- Maximum temperature (°C) 400
- Material of body and cover SS 321/Has C276/Titan
- Volume (cm3) 5000
- Internal diameter (mm) 160
- Internal height (mm) 250
- Sealing material Copper/Graphite/PTFE
- Type of cover connection Bolted
Options:
- Circulation pump
- Magnetic stirrer
- Sampling line
- Sapphire window
- Tilting mechanism (180° rotation)
- Touchscreen control panel
- Hastelloy / Titanium fittings
- Controlled fittings (pneumatic / electric)
- Process automation (software)
- Pneumatic lid lifting
- Automatic lid closure
- Remote control of the unit
Features:
- The LECFRSET5000 flow reactor has an internal volume of 5 liters, which allows for the placement of various metal and other material samples inside.
- There are special holders for samples on the reactor lid. The sample mounting area is equipped with ceramic insulators.
- The installation has three outlets at the bottom and 5 outlets on the lid, allowing the reactor to operate in flow mode.
- The installation is equipped with special heat-resistant autoclave valves.

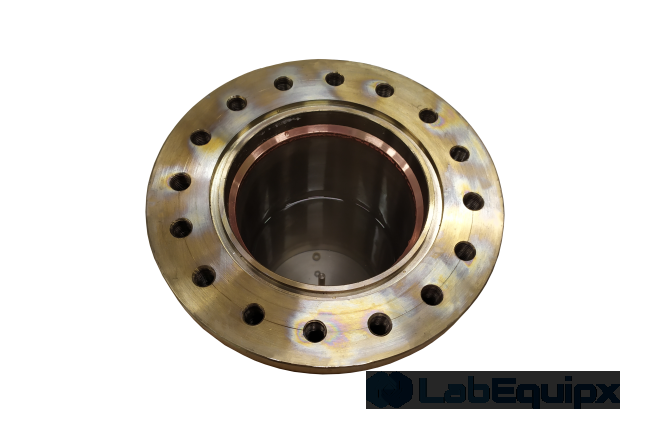

Sealing of reactor lid

The sealing of the reactor lid in the LECFRSET5000 can be achieved with either a metal ring made of copper, nickel, or other soft metals, or by using a graphite gasket. There are two sealing contours on the flanges of the body and lid, which can be used separately. The graphite gasket significantly extends the temperature range of the reactor's operation.

Mechanical lifting
Mechanical lifting mechanism allows lifting and lowering of the reactor cover, which significantly simplifies the process of unloading and loading samples into the autoclave vessel.
Digital pressure gauge
Digital pressure gauge displays the pressure inside the reactor with high accuracy and transmits data to the computer through special software. Experiment data is recorded and displayed on a graph.
The temperature control
The temperature control unit selects the optimal power of the heating element, which allows maintaining the set temperature throughout the experiment. The unit is equipped with a special button that allows emergency shutdown of the equipment and stop heating.
Reactor vessel insulation
Insulation of the reactor vessel can reduce heat losses from the system, decrease energy consumption, and accelerate the heating process. Insulation helps to maintain a precise temperature inside the reactor.

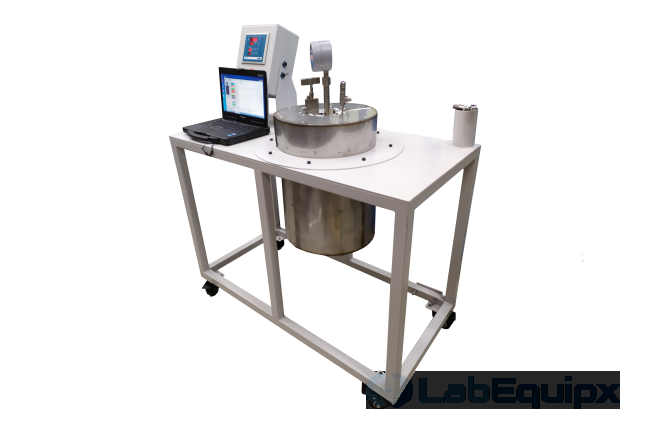

Frame for fixing components
The steel frame is coated with heat-resistant powder paint that is resistant to mechanical impact and most aggressive environments. The central part of the frame is made of stainless steel and is insulated from the main table with heat-insulating material. The frame is equipped with wheels with a brake mechanism, which facilitates the movement and fixation of the installation.
The software

The software records the experiment parameters and allows for control of the equipment via a computer. The software provides easy setup of experiment parameters and enables selection of the data saving period.
Sample holders

There are special holders for samples of various materials on the reactor lid. Ceramic insulators are located on the horizontal sample bars to hold the material. The holders can be easily removed from the reactor lid due to the threaded connection.

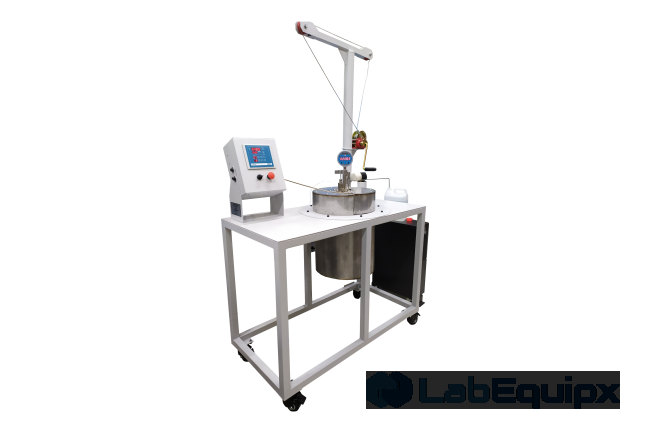

Lifting mechanism

The mechanical lifting mechanism allows for easy lifting and lowering of the reactor lid, which significantly facilitates loading of samples into the reactor. The reactor lid has a considerable weight (about 40 kg). The lifting mechanism has a modular design, which reduces its dimensions during transportation.

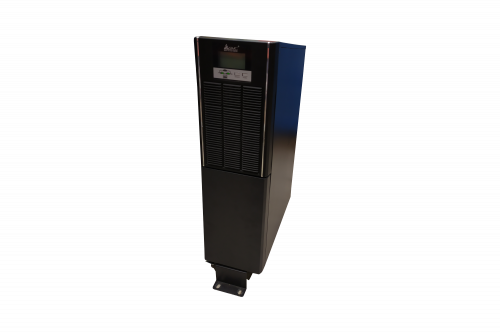

Uninterrupted power supply

Uninterruptible power supply (UPS) can be installed in order to ensure stable operation, accurate temperature control, and to prevent unauthorized shutdowns of the equipment and loss of experiment data. The UPS model can be selected by the Client.
The delivery set includes:
- LECFRSET5000Series flow chemical reactor assembled
- High-temperature needle valve 1/4'' PAE - 3 pcs.
- Rupture safety membrane - 2 pcs.
- Pressure gauge/sensor - 1 pc.
- Heating jacket - 1 pc.
- Mechanical lifting mechanism - 1 pc.
- Control unit - 1 pc.
- Frame for fixing components - 1 pc.
- Uninterruptible power supply - 1 pc.
- Laptop - 1 pc.
- High-pressure tube - 6 m.
- Sealing ring for reactor lid - 5 pcs.
- Documentation package (Passport, Operating manual, Quality certificate, Factory testing protocol, documentation for individual components).
The standard configuration of the system is equipped with high pressure and temperature fittings, which ensure tightness and reliable operation at temperatures above 250 degrees Celsius.



Sapphire cell Mixing device High-pressure precision pump The reactor can be equipped with sapphire windows. These windows allow for visual observation of processes occurring under thermobaric conditions. The reactor vessel can be entirely made of sapphire. A mixing device with a magnetic coupling provides efficient mixing of fluids with different viscosities under conditions of high pressure and temperature. A plunger precision high-pressure pump delivers substances with a maximum pressure of 1000 bar and an accuracy of 0.0005 ml.


Control block Cooling circuit Sampling system The control unit allows for monitoring and recording of experimental parameters during the reaction process. The control unit can be equipped with either a touchscreen or can output data to a PC. The cooling system is designed for fast and efficient cooling of the reactor contents. The system can be cooled by air, liquid, or a heat transfer fluid. The cooling system is made of materials that are corrosion-resistant in the autoclave's working environment. One of the most common options in medium-sized reactors. The sampling system consists of a dip tube, three shut-off valves, and a sampling cylinder.


Material containe Heating jacket Rotary mechanism The material container provides convenient loading and easy removal of material from the reactor housing. The size of the cells can be changed upon the customer's request. The container is typically made of mesh material with a 1x1 mm cell. The heating jacket can be mounted directly on the reactor housing. Additionally, the heating element can be installed on a special heat-conducting metal sleeve. The gap between the sleeve and the reactor is minimal. The rotary mechanism is necessary for convenient unloading and loading of materials. Additionally, the rotary mechanism allows for flipping the container 180 degrees.
