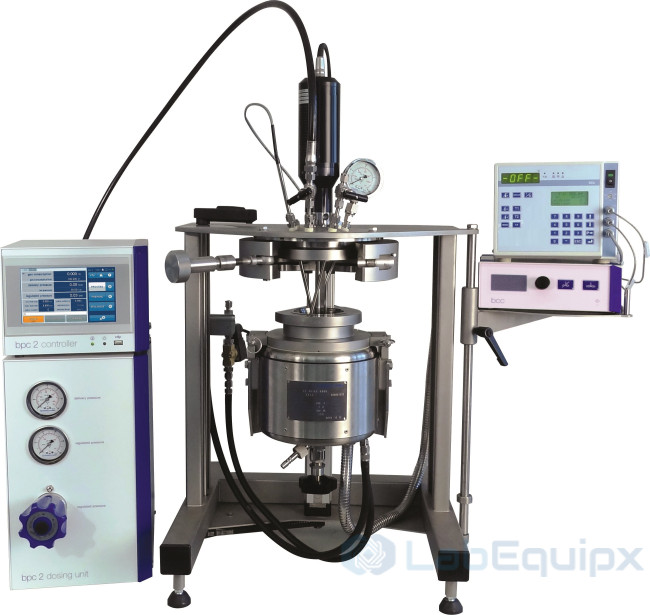

Turnkey Hydrogenation System with Gas Dosing Controller LEYGTSBPC2
Features:
- Turnkey hydrogenation system: gas dosing controller combined with a laboratory pressure reactor
- The gas dosing system together with the pressure reactor gives a safe, accurate and reproducible hydrogenation setup.

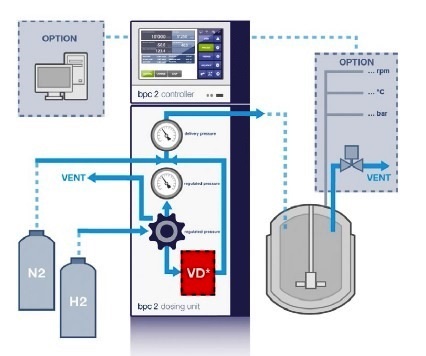

- The system consists of a pressure and flow controller for hydrogen dosing, control of the reaction pressure and continuous measurement of hydrogen uptake until saturation, and pressure reactors offered in different materials and volumes for low to high pressure work.
- Volumetric hydrogen dosing records pressure, momentary consumption and total consumption. An optional data logging package allows operation from a PC and storage of the recorded data for later analysis.
- The technology has been applied in research, scale up, process development and optimization, and small-scale production in pharmaceutical and fine chemical laboratories. It is also used for catalyst testing and polymerizations.
- Multiple built-in safety features, including gas leak sensors that can trigger an immediate shut-off of the gas supply, support hydrogenations at low and high pressure.
- Reactors can be prepared for catalytic hydrogenation with different solutions for catalyst charging and exposure and for gas entrainment. The reactor design and accessories allow exothermic reactions to be controlled.
- The instrument is easy to operate. Hydrogen uptake is measured and recorded continuously until saturation or another preset limit is reached, and the progress of the reaction is shown graphically.
- Volumetric dosing gives high accuracy over a wide range in two control modes: constant reaction pressure or constant flow rate.
Model: LEYGTSBPC2

Standard features
- Hydrogenation at 0.5 to 140 bar (7 to 2000 psi)
- Higher pressure version up to 400 bar (5800 psi) on request
- Continuous measurement of hydrogen uptake or of another active gas
- Gas consumption in mol and ml
- Automatic shut-off at a preselected gas quantity or at saturation
- Preselected reaction pressure maintained during the experiment
- Easy-to-read touch screen panel
- Graphic display of reaction kinetics
- Data storage on a USB memory stick
- Many safety features (for example leak detector and automatic stop functions)
- Fast charging
Technical data
- Accuracy: better than 99 %
- Flow rates: 0 to 225 liters n/min
Active gases (dosing and measurement)
- Hydrogen (H2)
- Ethylene (C2H4)
- Propylene (C3H6)
- Carbon monoxide (CO)
- Carbon dioxide (CO2)
Options
- Display of pressure, temperature and stirrer speed
- Automatic functions such as nitrogen purging and inertization
- Sequence program (including venting valve) to define linked, automated process steps, for example automated system preparation before a run: flush the system with nitrogen, leak test, flush the system with active gas
- RS 232 / Ethernet connection to data logging software, with up to 16 channels recorded on a PC
- Remote control function
- Set point for thermostats
- Other options on request
