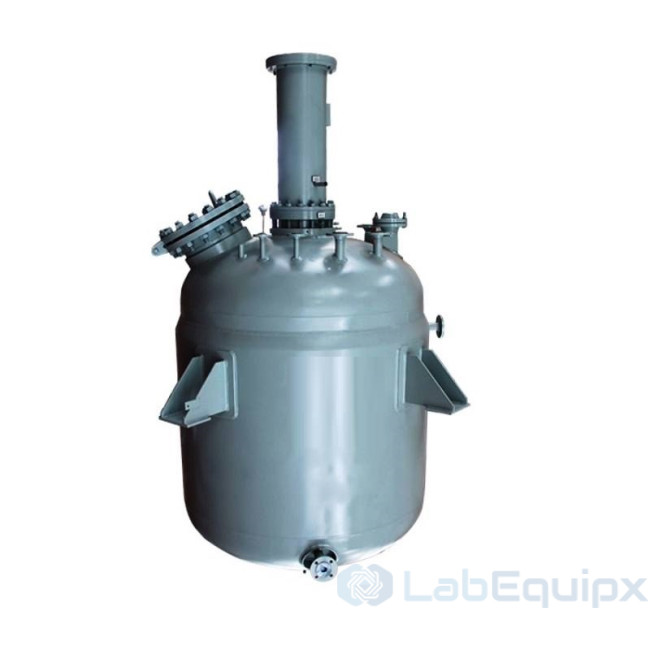

Pilot High Pressure Reactor with Elliptical Closure Head

  • LEPHPRECH pilot high pressure reactors have an elliptical top head welded to the barrel instead of a bolted cover. The welded head removes the main flange seal, which gives tight sealing at high pressure and costs less than a heavy flat cover. The head cannot be opened: inspection, repair and cleaning go through the center stirring port. This makes the family a fit for continuous processes, high sealing duty and processes that need little cleaning, for example in pharmaceutical production. Sizes run from 10 to 500 L.

    Design

    • Head: elliptical closure head, welded to the barrel.
    • Drive: low to high torque magnetic coupling, static seal with no rotating shaft gland.
    • Frame: floor stand or movable cart.
    • Material: SS304 or SS316 wetted parts as standard. Titanium, Nickel, Hastelloy B/C, Monel, Zirconium, Inconel and Tantalum are available.
    • Heating: electric as standard, thermal oil, steam or far infrared available. Heating power is 4 kW for 10 L, 9 kW for 20 and 30 L, 15 kW for 50 L, and is selected by working temperature above that.
    • Control panel: PID temperature display and control with ±1 ℃ accuracy, stirring speed, operation time, heating voltage and current display.

    Standard models

    ModelCapacityDesign pressureStirring speedMotor power
    LEPHPRECH-I010 L100 bar0 to 750 r/min0.6 kW
    LEPHPRECH-2020 L100 bar0 to 750 r/min1.1 kW
    LEPHPRECH-3030 L100 bar0 to 500 r/min1.5 kW
    LEPHPRECH-5050 L100 bar0 to 500 r/min1.5 kW
    LEPHPRECH-100100 L-0.1 to 300 bar0 to 500 r/min2.2 kW
    LEPHPRECH-200200 L-0.1 to 300 bar0 to 450 r/min2.2 kW
    LEPHPRECH-300300 L-0.1 to 300 bar0 to 450 r/min4 kW
    LEPHPRECH-500500 L-0.1 to 300 bar0 to 450 r/min5.5 kW

    Options

    • Impeller: propeller, paddle, anchor, spiral, turbine or gas inducing
    • Spiral cooling coil with cooling water
    • Bottom or top discharge
    • Head ports: pressure gauge, safety valve, temperature, gas and liquid, dip tube, vent, solid charging, cooling coil inlet and outlet

    Specify for your project

    • Capacity, 10 to 500 L
    • Design pressure, up to 300 bar
    • Design temperature and heating method
    • Wetted material
    • Head port layout, since the head is not removable
    • Impeller type and discharge

    This description defines the product family. Guaranteed performance, included hardware, exclusions, interfaces and acceptance criteria are stated only in the project-specific technical proposal and approved datasheet.

    • Pilot High Pressure Reactor with Eliptical Closure Head
  • Product Features

    • Floor stands or moveable cart type.
    • Capacity volume: 10 liters to 500 liters .
    • Max pressure: 300 bar; Design temperature up to 350 ℃
    • Low to high torque magnetic couplings: static seal.
    • Available material:SS304, SS316, Titanium, Nickel, Hastelloy B/C, Monel, Zirconium, Inconel, Tantalum.
    • Monitor and control: Temperature, pressure, motor speed, operating time, etc
    • Customized according to customers requirement.

    Internal Components

    Pilot High Pressure Reactor with Elliptical Closure Head

    Standard Specifications

    Model No. LEPHPRECH-I0 LEPHPRECH-20 LEPHPRECH-30 LEPHPRECH-50 LEPHPRECH-100 LEPHPRECH-200 LEPHPRECH-300 LEPHPRECH-500
    Nominal Capacity (L) 10 20 30 50 100 200 300 500
    Design Pressure (bar) 100 100 100 100 -0.1-300 bar customized
    Material SS304 or SS316 wetted parts
    Design Temperature (℃) 350 0~350 customized
    Stirring Speed (r/min) 0-750 0-750 0-500 0-500 0-500 0-450 0-450 0-450
    Motor Power (kW) 0.6 1.1 1.5 1.5 2.2 2.2 4 5.5
    Heating Power (kW) 4 9 9 15 Selection according to the working temperature
    Heating Method Standard electric heating(Thermal oil, steam, far infrared heating available)
    Head type Elliptical Closure Head
    Impeller type (Optional) Propeller, paddle, anchor, spiral, turbine, gas inducing type, etc
    Cooling type (Optional) Spiral cooling cools with cooling water
    Discharging type (Optional) Discharging from bottom or above.
    Control panel PID temperature display and control, accuracy±1 ℃;stirring speed display;Operation time display; Heating voltage and current display
    Opening port of head (Optional) Pressure gauge, Safety valve port; Temp. measuring port; Gas and liquid port; Dip tube; Vent port; Solid charging port; Cooling coil inlet and outler port
