Midscale Stirred Pressure Reactor with Flat Cover Head

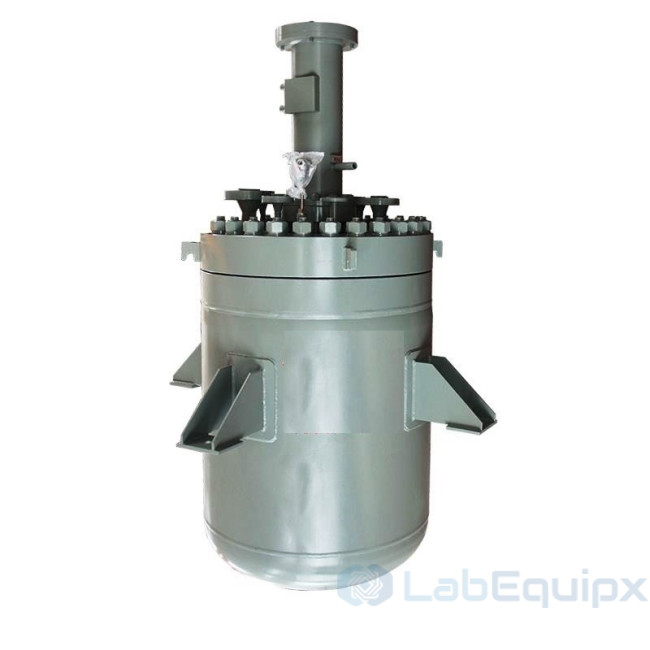

The Midscale Stirred Pressure Reactor with Flat Cover Head (LEMSPRFCH) is a magnetically driven stirred batch reactor for laboratory and pilot work, 10 to 500 L nominal. The flat cover top head is joined to the shell end flange with high-strength bolts; the bottom head is ellipsoidal. A flat cover seals well at high pressure and is easy to open and clean. The reactor sits on a floor stand or movable cart.

How it works

A magnetic coupling, low to high torque, drives the agitator and gives a static seal with no leakage. Impellers include propeller, paddle, anchor, spiral, turbine and gas-inducing types. Heating is electric as standard, or thermal oil, steam or far-infrared; an optional spiral coil cools with water. The control panel gives PID temperature control to ±1 °C and displays stirring speed, operation time, and heating voltage and current.

Sizes of 10 to 50 L are rated 100 bar and 350 °C. Sizes of 100 to 500 L are built from -0.1 to 300 bar and 0 to 350 °C to order. The feature summary quotes 300 °C maximum, so each vessel's design temperature is fixed in the project datasheet. Wetted parts are SS304 or SS316, or titanium, nickel, Hastelloy B/C, Monel, zirconium, Inconel or tantalum.

What is included

• Vessel with bolted flat cover and ellipsoidal bottom head
• Magnetic coupling agitator drive and motor
• Electric heater and PID control panel
• Floor stand or movable cart; optional head lifting device
• Optional head ports: pressure gauge, safety valve, temperature, gas and liquid, dip tube, vent, solids charging, cooling coil

Specify for your project

• Nominal capacity, 10 to 500 L
• Design pressure and temperature
• Wetted material
• Impeller type and stirring speed
• Heating method, cooling coil and discharge position
• Nozzle size and orientation, confirmed before manufacture

This description defines the product family. Guaranteed performance, included hardware, exclusions, interfaces and acceptance criteria are stated only in the project-specific technical proposal and approved datasheet.

Product Features

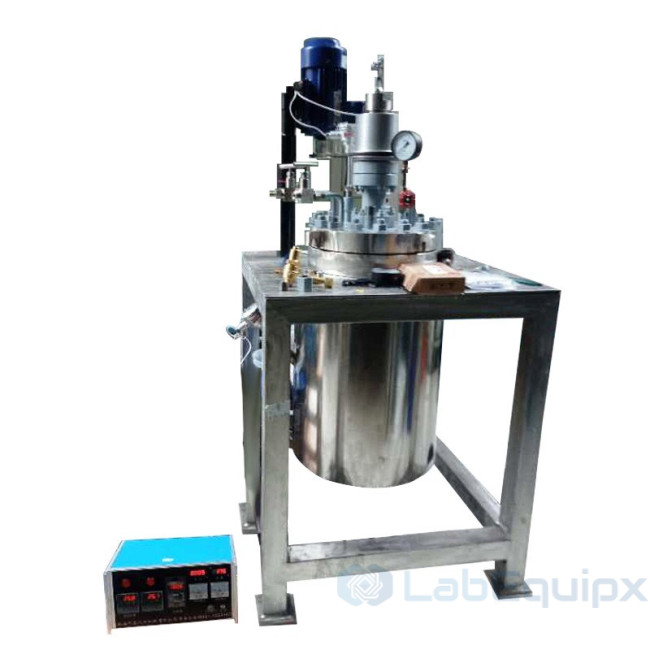

• Floor stands or moveable cart type.
• Capacity volume： 10 liters to 500 liters .
• Max pressure: 300 bar; Max temperature up to 300 ℃
• Low to high torque magnetic couplings: static seal with no leakage.
• Lifting device available for reactor head rising and lowering.

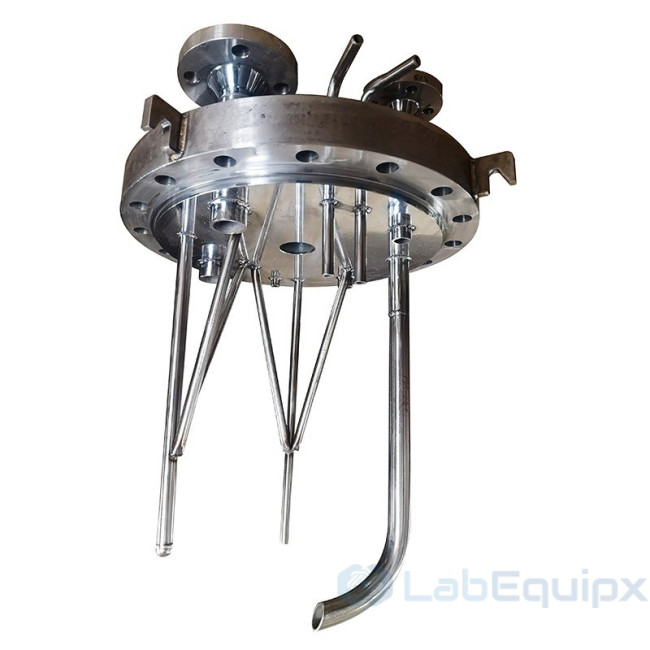

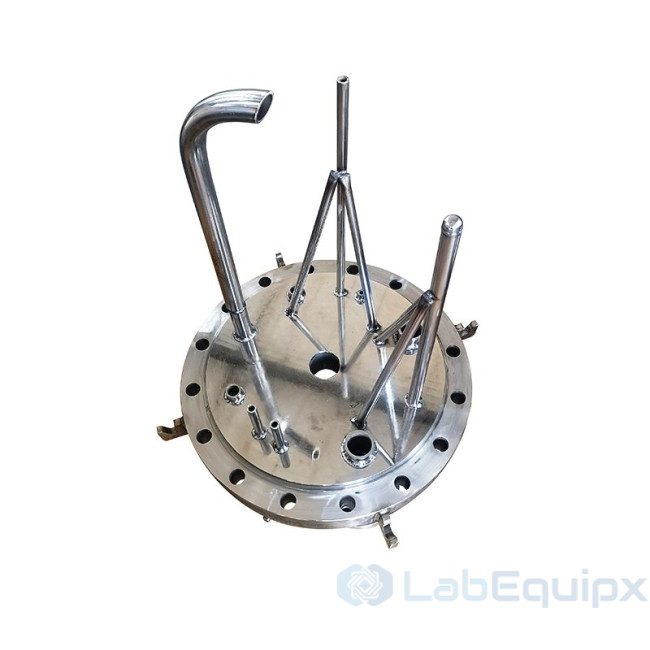

• Top Head type: Flat cover; Bottom head type: Ellipsoidal type.
• Available material：SS304, SS316, Titanium, Nickel, Hastelloy B/C, Monel, Zirconium, Inconel, Tantalum.
• Monitor and control: Temperature, pressure, motor speed, operating time, etc.
• Customized according to customers requirement.

Standard Specifications

Note：

• The above standard parameters are for reference only. Different processe have their own reasonable selection, not the more complete the function, the better.
• The structure, specification, nozzle size and orientation need to be confrimed after communicating with us.
