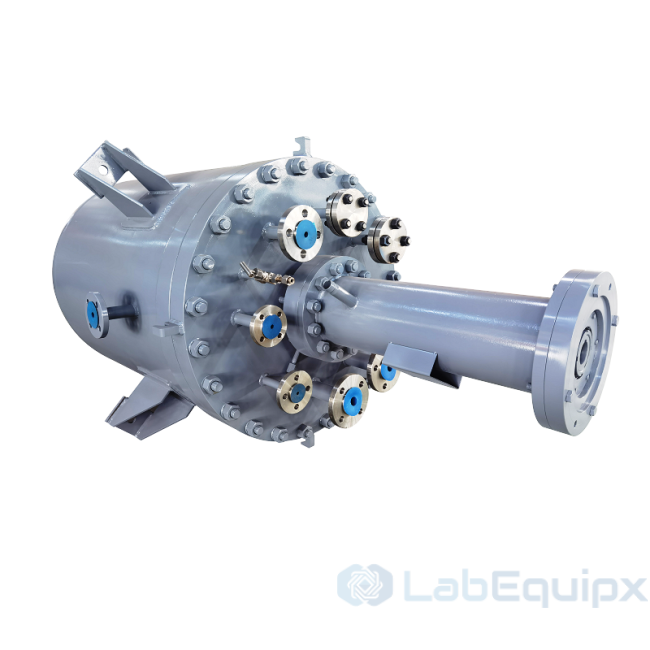

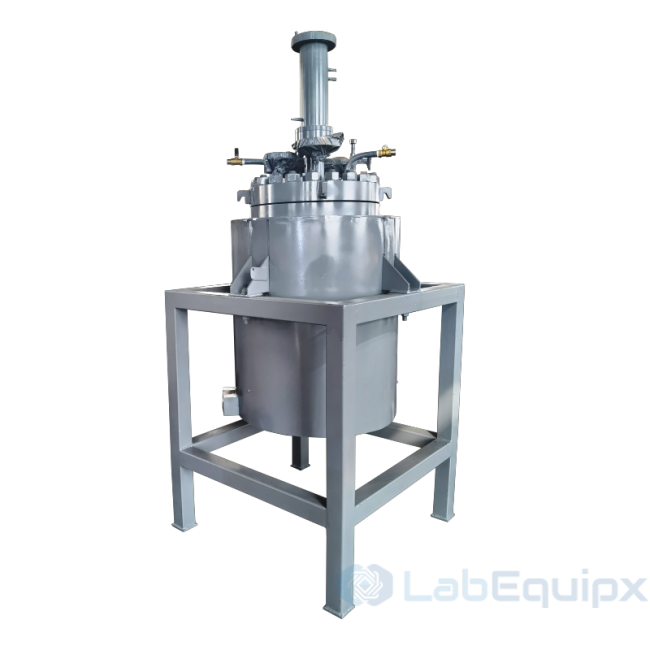

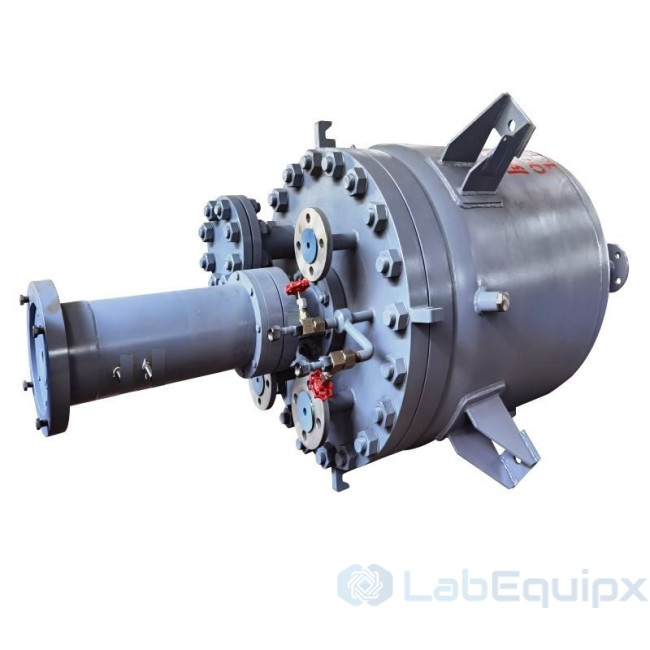

Magnetic Coupling Drive Batch Autoclave Reactors

  • LEMCDBAR magnetic coupling drive batch autoclaves are stirred pressure reactors from 50 to 500 L for scale-up and small production in pilot plants and kilolabs. They run pressure reactions and reactions under full vacuum. The 100 liter unit is the reference size of the family. Construction and materials are chosen for the process and the process media.

    Design

    • Drive: magnetic coupling, so the stirrer shaft has no packed gland.
    • Pressure: design pressure -0.1 to 250 bar, customized.
    • Temperature: design temperature 0 to 350°C, customized.
    • Material: clad SS304, SS316, Hastelloy C276, PTFE liner or other alloys.
    • Heating: electric as standard. Thermal oil, steam and far infrared heating are available.
    • Jacket: conventional jacket or limpet coil.
    • Head: flat cover or elliptical flange type.
    • Control panel: PID temperature display and control with ±1 °С accuracy, stirring speed, operation time, heating voltage and current display.

    100 liter reference unit

    Volume 100 liters, max pressure 250 bar, max temperature 350℃, motor power 2.2 kW. Stirrer options are propeller, paddle, turbine, gas induction or custom.

    Models

    ModelNominal capacityStirring speedMotor power
    LEMCDBAR-5050 L0 to 500 rpm1.5 kW
    LEMCDBAR-100100 L0 to 500 rpm2.2 kW
    LEMCDBAR-200200 L0 to 450 rpm2.2 kW
    LEMCDBAR-300300 L0 to 450 rpm4 kW
    LEMCDBAR-500500 L0 to 450 rpm5.5 kW

    What is included

    Pressure gauge, thermocouple, internal stirring system, liquid inlet and gas inlet with needle valve, dip tube, safety rupture disc and cooling coil.

    Options

    • Impeller: propeller, paddle, anchor, spiral, turbine or gas inducing
    • Internal spiral cooling coil
    • Bottom discharge or up discharge by pressure
    • Solid plug port, constant feeding tank, safety valve, drain valve
    • External condenser, reflux pipeline and receiver
    • Sampling devices, pH probes, rectification columns with structured packing
    • Integration of temperature control units, filters and dryers, gas scrubbers and mixing vessels

    Specify for your project

    • Nominal capacity, 50 to 500 L
    • Design pressure within -0.1 to 250 bar
    • Design temperature within 0 to 350°C
    • Material, cladding or PTFE liner
    • Jacket type, heating method and impeller
    • Auxiliary equipment and level of process control

    This description defines the product family. Guaranteed performance, included hardware, exclusions, interfaces and acceptance criteria are stated only in the project-specific technical proposal and approved datasheet.

    • Magnetic Coupling Drive Batch Autoclave Reactors
    • Magnetic Coupling Drive Batch Autoclave Reactors
    • Magnetic Coupling Drive Batch Autoclave Reactors
  • Specification of100 liters Reactor

    • Volume:100 liters
    • Max pressure:250bar
    • Max temperature:350℃
    • Material:SS304,SS316,Hastelloy C276, PTFE liner or other alloys
    • Motor power: 2.2kw
    • Heating type:Standard electric heating,or thermal oil heating
    • Stirrer:Propeller,Paddle,Turbine,Gas induction,customized
    • Jacketed type: Conventional or Limpet coil

    Product Features

    Magnetic Coupling Drive Batch Autoclave Reactors
    Magnetic Coupling Drive Batch Autoclave Reactors
    Magnetic Coupling Drive Batch Autoclave Reactors

    Product Parameters

    Model No. LEMCDBAR-50 LEMCDBAR-100 LEMCDBAR-200 LEMCDBAR-300 LEMCDBAR-500
    Nominal Capacity 50 L 100 L 200 L 300 L 500 L
    Design Pressure -0.1-250 bar customized
    Material Clad SS304, SS316 or other alloys
    Design Temperature 0~350°C customized
    Stirring Speed 0-500 rpm 0-500 rpm 0-450 rpm 0-450 rpm 0-450 rpm
    Motor Power 1.5 kW 2.2 kW 2.2 kW 4 kW 5.5 kW
    Heating Method Standard electric heating(Thermal oil, steam, far infrared heating available)
    Head type Flat cover or elliptical flange type
    Impeller type (Optional) Propeller, paddle, anchor, spiral, turbine, gas inducing type, etc
    Cooling type (Optional) Internal spiral cooling cools
    Discharging type (Optional) Discharging from bottom or up discharge by pressure.
    Control panel PID temperature display and control, accuracy±1 °С; Stirring speed display; Operation time display; Heating voltage and current display.
    Standard Pressure Gage; Thermocouple; Internal Stirring System Liquid inlet and gas inlet with needle valve Dip Tube; Safety Rupture Disc; Cooling Coil
    Optional Solid plug port, constant feeding tank, safety valve, external condenser, Reflux pipeline, drain valve, receiver, etc.
