Lab High Pressure Vessel/Reactor Vessels

  • LELHPVR lab high pressure reactor vessels are bolted flange pressure reactors from 1 to 50 liter for chemical process research and scale-up. Their three phase mixing design brings gas, liquid and solid catalyst into close contact, which makes them a common choice for catalytic hydrogenation and catalyst development. Polymer development and hydrometallurgy are other main areas of use.

    Design

    • Volume: 1 to 50 liter.
    • Pressure: maximum 300 bar.
    • Temperature: 20 °C to +300 °C.
    • Material: stainless steel 304 or 316.

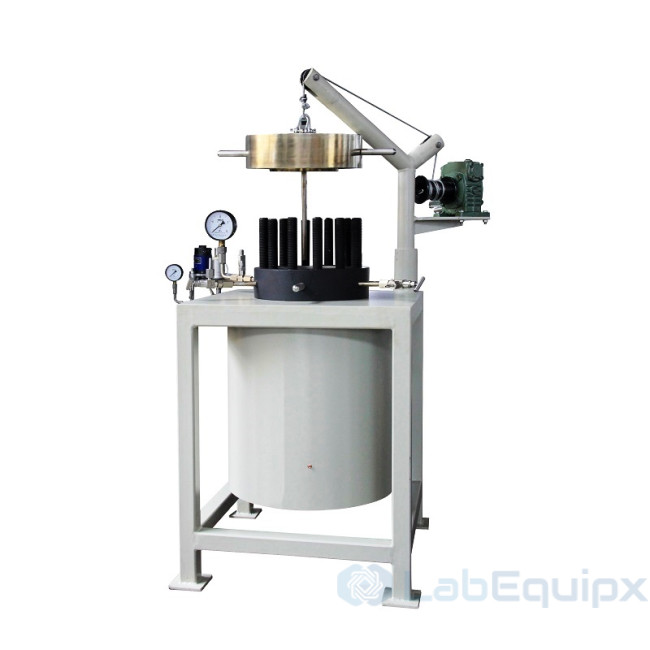

    • Lid: flat cover that is raised and lowered on a lifting device, so the vessel opens without lifting the cover by hand.
    • Closure: flange type with bolts.
    • Control: PID temperature control.

    The bolted flange carries the closure load across the whole cover, and the lifting device holds the cover while the vessel is charged, cleaned or emptied.

    Typical applications

    • Hydrogenation, catalyst screening and testing
    • Polymerization, including styrene butadiene
    • Alkoxylation and ethoxylation
    • Hydrocracking, dehydrogenation and oxidation
    • Fluid catalytic cracking
    • Biojet fuel production
    • Distillation and crystallization
    • Hydrometallurgical leaching and processing

    Specify for your project

    • Reactor volume between 1 and 50 liter
    • Working pressure up to 300 bar
    • Operating temperature within 20 °C to +300 °C
    • Material: stainless steel 304 or 316
    • Stirrer type for the gas, liquid and solid phases in the process
    • Ports needed for gas feed, sampling and venting

    This description defines the product family. Guaranteed performance, included hardware, exclusions, interfaces and acceptance criteria are stated only in the project-specific technical proposal and approved datasheet.

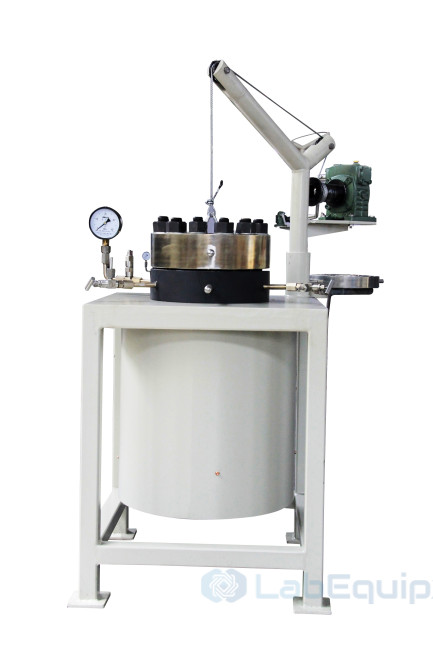

    • Lab High Pressure Vessel/Reactor Vessels
    • Lab High Pressure Vessel/Reactor Vessels
  • Structure characteristics:

    • Flat cover lid: Lifting & lowering
    • Closure type: Flange type with bolts closure
    • Control: PID temperature control.

    Specifications:

    • Reactor volume: 1-50 liter
    • Maximum Pressure: 300 bar Temperature: 20 °C to +300 °C
    • Material: Stainless steel 304/316
    • Features: Top cover lid can be rising & lowering
