Horizontal Stirred High Pressure Autoclave with Rotate Device
Send a request
Horizontal Stirred High Pressure Autoclave with Rotate Device
The LEHSHPARD horizontal stirred high pressure autoclave with rotate device is a reactor that runs either upright or on its side. Biomass and other fibrous feedstock are hard to stir in a vertical vessel. Here the reactor is loaded vertically and then tilted to horizontal, where the internal stirrers tumble the material instead of trying to push through it. Labs use it for process development and small production with cellulosic materials.
How it works
A lift and flip device opens the lid and tilts the vessel quickly. The vessel is secured vertically for loading and then tilted horizontally for stirring. It can also be built to operate in both positions. A 1 liter version can carry a heavy-duty stirring motor with double anchor stirrers. A tilt mechanism on the cylinder for discharge is available as an option. Lifting and tilting are manual.
- Material: SS304 or SS316 standard. Hastelloy is available.
- Heating: electric as standard. Water circulation or thermal oil heating are available.
- Cooling: spiral coil. Single or serpentine coils are available.
- Charging: from above. A bottom valve is available.
- Stirrer: propeller, paddle, anchor or custom, 0 to 1500 r/min.
- Control: temperature, time and heating voltage display, temperature control to ±1 °C, stirring speed display and control.
Typical feedstock
- Straw, corn stover and sugar cane
- Grasses and other plants
- Wood pulp and wood chips
- Fibers
Models
Model Capacity Motor power Heating power LEHSHPARD-0.25 0.25 L 0.15 kW 1 kW LEHSHPARD-0.5 0.5 L 0.15 kW 1 kW LEHSHPARD-1 1 L 0.2 kW 2 kW LEHSHPARD-2 2 L 0.2 kW 2 kW LEHSHPARD-3 3 L 0.2 kW 3 kW LEHSHPARD-5 5 L 0.6 kW 4 kW All models: working pressure 10 MPa, working temperature 350 °C. Standard fittings: pressure gauge, thermocouple, internal stirring system, liquid and gas inlets with needle valve, gas release valve, dip tube, safety rupture disc and cooling coil.
Specify for your project
- Capacity, 0.25 to 5 L
- Operating position: horizontal only, or vertical and horizontal
- Stirrer type for the feedstock
- Vessel material: SS304, SS316 or Hastelloy
- Discharge: top, bottom valve or tilt mechanism
This description defines the product family. Guaranteed performance, included hardware, exclusions, interfaces and acceptance criteria are stated only in the project-specific technical proposal and approved datasheet.
Product features

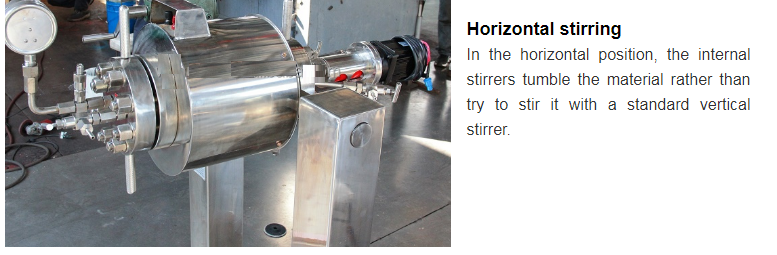

In the horizontal position, the internal stirrers tumble the material rather than try to stir it with a standard vertical stirrer.

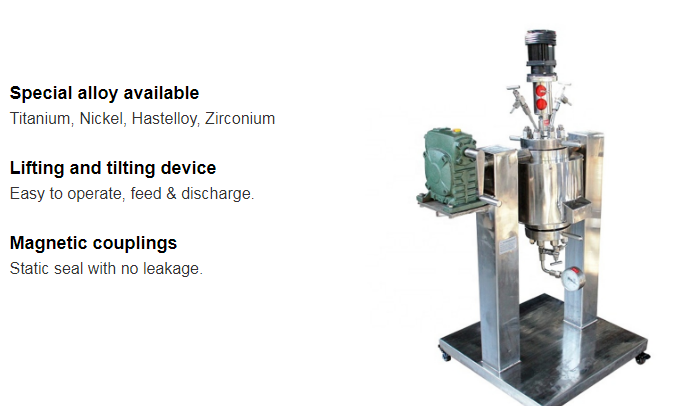

These custom reactors are secured vertically for loading and then safely tilted horizontally for stirring. They can also be designed to be operated in both a horizontal and vertical position.

This one liter reactor is loaded vertically and can be stirred vertically or horizontally. A heavy-duty stirring motor and double anchor stirrers are shown. Another available option is to add a tilt mechanism to the cylinder for discharge.


Product parameters
Model No. LEHSHPARD-0.25 LEHSHPARD-0.5 LEHSHPARD-1 LEHSHPARD-2 LEHSHPARD-3 LEHSHPARD-5 Capacity (L) 0.25 0.5 1 2 3 5 Working Pressure (MPa) 10 10 10 10 10 10 Working Temperature (°C) 350 350 350 350 350 350 Stirring Speed (r/min) 0-1500 0-1500 0-1500 0-1500 0-1500 0-1500 Motor power (kW) 0.15 0.15 0.2 0.2 0.2 0.6 Heating Power (kW) 1 1 2 2 3 4 Material Standard SS304 or SS316 Heating Method General electric heating(water recycling, thermal oil heating available Cooling Method Spiral coils(Single coils, serpentine coils available) Charging Method Charging from above(Bottom valve available) Stirring type Propeller, paddle type, anchor type or customized Lifting and tilting type Mannual operation Control panel Temperature, time and heating voltage display Temperature adjustment control, accuracy±1 °C Stirring speed display and control Standard fittings Pressure Gage; Thermocouple; Internal Stirring System Liquid inlet and gas inlet with needle valve:Gas Release Valve Dip Tube; Safety Rupture Disc; Cooling Coil
