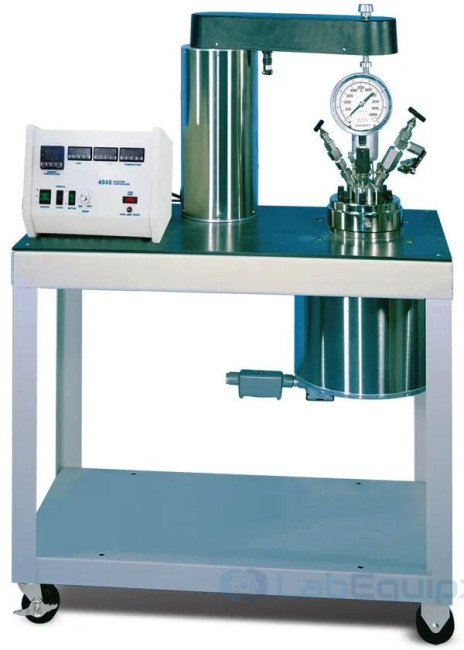

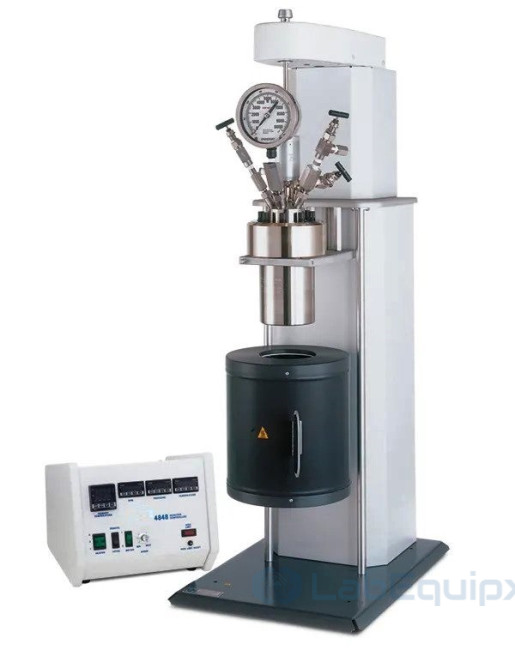

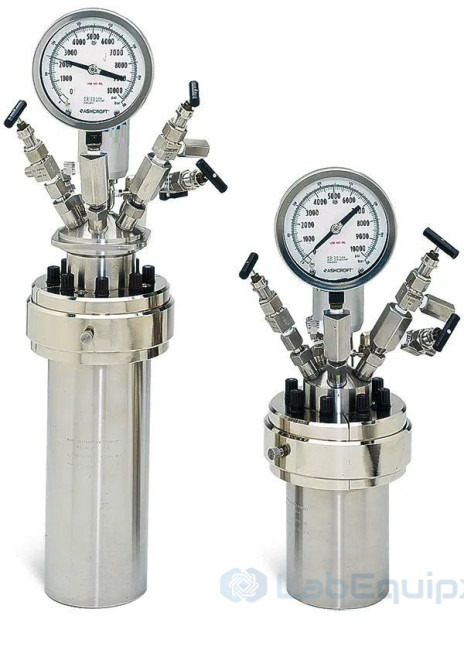

High Pressure Reactors (600 & 1200 ml) HPR-4540 Series

  • LEHPR-4540 stirred high pressure reactors provide 600 & 1200 ml capacities for work above the 1900 to 2900 psi range of general purpose reactors. They serve applications that need higher pressure without the higher temperatures of the high pressure/high temperature reactor family. Working conditions extend to 5000 psi (345 bar) and 350 °C.

    The external dimensions correspond to those of the general purpose bench top and floor stand reactors. The vessels can therefore share their support arrangements, stirrer drives and heaters. This high pressure, moderate temperature design also permits interchange with 1 and 2 liter vessels. Thicker pressure-retaining walls reduce the internal capacities to 600 and 1200 mL.

    Either bench top or floor stand mounting can be used. A fixed head bench top arrangement is offered for the 1200 mL size, although its height and weight can make handling uncomfortable at a standard bench. Floor stand support is recommended for this size. Bench mounting is appropriate where an adjustable bench can accommodate the full height of the 1200 mL system and provide a suitable working position.

    This description defines the product family. Guaranteed performance, included hardware, exclusions, interfaces and acceptance criteria are stated only in the project-specific technical proposal and approved datasheet.

    • High Pressure Reactors (600 & 1200 ml) HPR-4540 Series
    • High Pressure Reactors (600 & 1200 ml) HPR-4540 Series
    • High Pressure Reactors (600 & 1200 ml) HPR-4540 Series
  • Operating specifications

    • High pressure reactor configuration.
    • Support choices: bench top, floor stand or cart.
    • Mounting arrangements: moveable vessel or fixed head.
    • Vessel capacities, mL: 600 and 1200.
    • High Pressure (HP) maximum allowable working pressure, psi (bar): 5000 (345).
    • Standard operating temperature limit, °C: 350 with a PTFE flat gasket.
    Moveable vessel configuration600 mL bench topN/A600 mL floor standN/A600 mL cart1200 mL cart
    Fixed head configuration600 mL bench top1200 mL bench top600 mL floor stand1200 mL floor standN/AN/A
    Nominal internal volume, mL600120060012006001200
    Maximum allowable working pressure (MAWP)5000 psi (345 bar)
    Operating temperature ceiling
    PTFE flat gasket seal350 °C
    Reactor construction and equipment
    Head and vessel mountingMoveable vessel or fixed head
    Supporting structureBench topFloor standMoveable cart
    Closure arrangementSplit-ring closure: 8 compression bolts with the flat gasket.
    O-ring closure availability and operating ratings: on request.
    Valve connection threads1/4″ Male NPT
    Magnetic coupling optionsGeneral purpose magnetic drive or footless magnetic drive
    Torque limit16 Inch-Pounds
    Impeller quantity and diameter, 6 blades2 (1.75″ dia.)
    Stirring motor power1/8 hp1/8 hp1/4 hp
    Pressure gage diameter4.5 inches
    Pressure indication range0-5000 psi (345 bar)
    Temperature sensing arrangementThermowell
    Optional cooling coil geometrySerpentine or loop
    Optional bottom drain valve (BDV)N/A1″ NPSN/A
    Lifting equipmentN/APneumaticN/APneumaticN/AN/A
    Heating element constructionTubular heater
    Heating power, Watts1000/15001500/20001000/15001500/200013001300
    Electrical service requirements
    Supply voltage, Volts, AC115 / 230
    Maximum current, amps, 115 / 23012 / 9
    Cylinder measurements
    Internal diameter x depth, inches3.25 x 4.73.25 x 9.83.25 x 4.73.25 x 9.83.25 x 4.73.25 x 9.8
    Assembled vessel weight, poundsMoveable: 5065Moveable: 50655061
    Fixed head: 53Fixed head: 53
    Cylinder-only weight, pounds182918291829
    Reactor and support measurements
    Width x depth excluding controller, inches17 x 2421 x 2835 x 18
    Overall height, inches38486350
    Overall weight, pounds125135175185175185
    Replacement parts setSpare parts kit
  • Reactors and pressure vessels can be supplied with a wide range of options and accessories. With them the user can configure the system for the planned reactions and the intended operating conditions. The available options and accessories are listed below:

    • Automated liquid sampler
    • Catalyst addition devices
    • Catalyst baskets
    • Catalyst loading toolkit
    • Catalyst testing system
    • Condensers
    • Coned pressure fittings
    • Continuous bulk-solids feeder
    • Controllers
    • Cooling coils
    • Equipment for use in potentially ignitable atmospheres
    • External valves and fittings
    • Gas measurement systems:
      • Intermediate supply tanks
      • Mass flow
      • High pressure gas burettes
    • Heaters
    • Insulated electrical glands
    • Liners
    • Liquid charging systems:
      • Liquid metering pumps
      • Liquid charging pipettes
    • Magnetic drives
    • Motors and drives
    • Pressure gages
    • Pressure hose
    • Safety rupture discs
    • Sample collection vessel
    • Service fixtures
    • Solids/slurry addition devices
    • Spare parts kits
    • Split-ring closures
    • Stirrer options
    • Gas entrainment impellers
    • Thermocouples
    • Valves and fittings:
      • Bottom drain valves
      • Manual control valves for compressed gas tanks
      • Pressure relief valves
      • Safety check valves
    • Windows
  • The standard construction material for reactors is Type 316 Stainless Steel. Other alloys are also available. Reactors can be built from the following materials:

    • Type 316/316L Stainless Steel
    • Alloy A-286
    • Alloy 20
    • Alloy 230
    • Alloy 400
    • Alloy 600
    • Alloy 625
    • Alloy B-2/B-3
    • Alloy C-276
    • Nickel 200
    • Titanium Grades 2, 3, 4 and 7
    • Zirconium 702 and 705

    If a special alloy is specified for a reactor, the head, the cylinder and every internal wetted part of the vessel are made from that alloy. The external valves and fittings remain stainless steel. External parts are normally not exposed to the corrosive conditions present inside the vessel, so the extra cost of making them from special alloys is rarely justified.

    Alloy Designation

    The corrosion resistant alloys available for reactors and pressure vessels are identified here by alloy designation numbers. The same alloys are also known by trade names and by ASTM, ASME, DIN and other specification numbers. Many high nickel alloys were first patented and sold under trade names such as Monel, Inconel, Incoloy, Carpenter Alloy 20 and Hastelloy. Most of those patents have now expired. These alloys are now supplied as construction materials by other reputable producers as well as by the owners of the original trade names.

    Among the many corrosion resistant alloys on the market, two or three may have very similar compositions and serve the same corrosive environment. Each alloy still has its own physical strength, its own temperature characteristics and its own particular resistance to certain corrosive media. All of these factors have to be weighed when an alloy is selected, and cost and availability also influence the final choice.

    • MONEL, INCONEL and INCOLOY are registered trademarks of Special Metals Corp.
    • CARPENTER 20 is a registered trademark of Carpenter Technology Corporation.
    • HASTELLOY is a registered trademark of Haynes International, Inc.

    The table below gives the basic composition of these alloys. Data on corrosion resistance is available in corrosion handbooks and metallurgical publications. The individual alloy producers are also a useful source of information.

    Any short listing of the corrosion resistance of metals and alloys can mislead, because it cannot cover every effect of concentration, temperature, pressure and the presence of additional ions. Each of these has a significant effect on how well a reactor withstands corrosion. The susceptibility of a material to stress corrosion cracking, intergranular corrosion and pitting must also be taken into account when judging whether the material suits a particular application.

    The main characteristics of the construction materials offered are summarized below. These summaries are only a starting point for any study of comparative corrosion resistance and physical properties. Booklets from the material manufacturers on each alloy are available on request. Further details can also be found in other sources.

    Nominal Chemical Composition of Pressure Vessel Materials
    Major Elements (Percent)
    MaterialTypical Trade NameFeNiCrMoMnOther
    T316 Stainless Steel6512172.52.0Si 1.0
    Alloy 20Carpenter 203534202.52.0Cu 3.5, Cb 1.0 max
    Alloy 230Haynes 2303522220.7Co-5, W-14, Si-0.5
    Alloy 400Monel 4002.5 max63 min2 maxCu 31.5
    Alloy 600Inconel 60087615.5
    Alloy 625 Gr1Inconel 625 Gr15582290.5Cb+Ta 3.7
    Alloy A-286Alloy 2865325151.22Si-1, Ti-2.1, Al-0.35
    Alloy B-2/B-3Hastelloy B-2/B-32661281Co 1.0
    Alloy C-276Hastelloy C-2766.55315.5161W4.0, Co 2.5
    Nickel 20099
    Titanium Grade 2, 3, 4Commercially pure titaniumTi 99 min
    Titanium Grade 7Ti 98.8 min, 0.15 Pd
    Zirconium Grade 702Zr + Hf 99.2 min, Hf 4.5 max
    Zirconium Grade 705Zr + Hf 95.5 min, Hf 4.5 max, Nb 2.5

    Type 316/316L Stainless Steel

    Type 316 Stainless Steel performs very well with most organic systems. Under certain conditions a few organic acids and organic halides can hydrolyze and form inorganic halogen acids, and these attack T316SS. Acetic acid, formic acid and other organic acids are handled in T316SS as a matter of routine.

    T316SS is not usually the preferred material for inorganic acid systems. At ambient temperature it gives useful resistance to dilute sulfuric, sulfurous, phosphoric and nitric acids. At elevated temperature and pressure, however, sulfuric, phosphoric and nitric acids attack T316SS readily. Halogen acids attack every form of stainless steel quickly, even in dilute solutions and at low temperature.

    T316SS resists surface corrosion by caustics very well, but caustics can cause stress corrosion cracking in stainless pressure vessels. This effect starts to appear just above 100 °C and has been the most frequent cause of corrosion failure in stainless laboratory vessels. T316SS resists ammonia and most ammonia compounds well.

    Halogen salts can cause severe pitting in every stainless steel. Chlorides can cause stress corrosion cracking. Many other salt solutions, especially neutral or alkaline salts, can be handled in stainless vessels.

    At moderate temperature and pressure, T316SS is suitable for most commercial gases. In strictly anhydrous systems, even hydrogen chloride, hydrogen fluoride and chlorine can be handled in stainless steel.

    Practically all T316SS produced today also meets the specifications for T316L, the low carbon grade of stainless steel.

    Alloy 20

    Alloy 20 is an enriched stainless steel grade developed specifically for dilute sulfuric acid (up to 30 percent by weight) at elevated temperatures. It also suits nitric and phosphoric acid systems, as well as every system for which T316SS is suitable.

    Alloy 400

    Alloy 400 consists essentially of two-thirds nickel and one-third copper. In many applications its corrosion resistance is about equal to that of nickel. It allows higher maximum working pressures and temperatures and costs less, because it is much easier to machine.

    Alloy 400 is widely used with caustic solutions, since in most applications it does not suffer stress corrosion cracking. Chloride salts do not cause stress corrosion cracking in Alloy 400 either. It is also a very good material for fluorine, hydrogen fluoride and hydrofluoric acid systems. Alloy 400 has some resistance to hydrochloric and sulfuric acids at moderate temperatures and concentrations, but it is rarely the first choice for these acids. As its high copper content suggests, nitric acid and ammonia systems attack Alloy 400 rapidly.

    Alloy 600

    Alloy 600 is a high nickel alloy. It resists caustics and chlorides very well at high temperature and high pressure when sulfur compounds are present. In caustic environments no alloy performs better than Alloy 600. It is also often selected for its high strength at elevated temperatures. It can be recommended for a wide range of corrosive conditions, but its cost usually restricts its use to applications that need its exceptional properties.

    Alloy B-2/B-3

    Alloy B-2/B-3 is rich in nickel and molybdenum and was developed mainly to resist reducing acid environments, especially hydrochloric, sulfuric and phosphoric acids. In their pure forms it resists these acids better than any other alloy. Ferric ions and other oxidizing ions, even at levels as low as 50 ppm, can sharply reduce the resistance of this alloy.

    Alloy C-276

    Alloy C-276 is a nickel chromium-molybdenum alloy that probably has the widest general corrosion resistance of all commonly used alloys. It was first developed for wet chlorine service. It also resists strong oxidizers such as cupric and ferric chlorides very well, as well as many chlorine compounds and materials contaminated with chlorine. Thanks to this wide chemical resistance, Alloy C-276 is the second most widely used alloy after T316SS for research and development vessels.

    Nickel 200

    Nickel 200 is one designation of commercially pure nickel. It gives the highest corrosion resistance in hot caustic environments. Its use is strongly limited, however, by poor machinability and the high fabrication cost that follows from it.

    Titanium

    Titanium performs very well with oxidizing agents such as nitric acid, aqua regia and other mixed acids. It also resists chloride ions very well. Reducing acids such as sulfuric and hydrochloric acid corrode titanium at unacceptably high rates in pure form. These rates can drop to acceptable levels when relatively small amounts of oxidizing ions, such as cupric, ferric or nickel ions, or even nitric acid, are present and act as corrosion inhibitors.

    This effect has led to many successful uses of titanium in hydrometallurgy, where acids, especially sulfuric acid, are used to leach ores. In these processes the extracted ions act as corrosion inhibitors.

    Users must keep in mind that titanium burns vigorously in oxygen at elevated temperatures and pressures. Many hydrometallurgy applications handle oxygen and sulfuric acid successfully in titanium equipment, but the risk of ignition is always present. Protection against it is required whenever titanium and oxygen are used together.

    Commercially pure titanium comes in several grades. Grade 2 is the grade most often used for industrial equipment, because it can be welded. Vessels in Grade 2 can be built to the PED and ASME Codes on request. Grade 4 has slightly higher trace levels of iron and oxygen and is stronger than Grade 2. Grade 4 cannot be welded and is outside the PED and ASME Codes, so code design on request applies to Grade 2 only.

    Most vessels are not welded, so Grade 4 can give higher working pressures than Grade 2. Grade 7 contains small amounts of palladium. It gives improved resistance in certain environments and can be used for reactors and pressure vessels when suitable billets are available.

    Zirconium

    Zirconium resists hydrochloric and sulfuric acids very well. As with Alloy B-2/B-3, oxidizing ions such as ferric and cupric ions and fluorides must be avoided. Zirconium also resists phosphoric and nitric acids and alkaline solutions well. Two grades are available. Grade 702 contains hafnium and is the standard commercial grade, with the best resistance to most corrosive agents. Grade 705 contains small amounts of both hafnium and niobium. These additions raise its strength and permit higher maximum working pressures for a vessel. Grade 702 usually resists corrosion better than Grade 705, and Grade 702 is also easier to obtain from commercial raw material stocks.

    High Temperature / High Strength Alloys

    Besides the metals selected for corrosion resistance, some alloys are offered for their outstanding strength, their strength at high temperature, or both.

    Alloy 230

    Alloy 230 is listed among the alloys approved in ASME Section II for pressure vessel design. It is high in nickel, chromium, tungsten and cobalt. Its resistance is similar to that of Alloy 600, but it is normally chosen for its high strength at very high temperatures. It is sometimes chosen as a bolting material.

    Alloy 625

    Alloy 625 has chemical resistance similar to Alloy C-276, but is much stronger. It is used to obtain higher pressure ratings in high temperature applications.

    Alloy A-286

    Alloy A-286 belongs to the stainless steel family and keeps very high strength up to 371 °C. It is widely used as a bolting material.

    Pressure and Temperature Limits

    The maximum pressure and temperature for any reactor or pressure vessel depend on the vessel design, its construction material and the other components that form part of the design. Every material loses strength as temperature rises, so a pressure rating is only meaningful together with the temperature at which it applies. The ratings in the specification tables give the maximum allowable working pressure (MAWP) of each vessel in pounds per square inch (psi) and in bar, at the maximum rated temperature of that design, for a vessel made of Type 316 Stainless Steel. For vessels made of other alloys, the maximum pressure and temperature limits are calculated and assigned by engineering in line with all applicable regulations.

    A lower operating temperature can sometimes allow a higher working pressure. For example, the high temperature (HT) version of one reactor series is rated at 2000 psi (138 bar) maximum pressure and 500 °C maximum temperature. The standard version of the same series is rated at 2900 psi (200 bar) maximum pressure at 350 °C maximum temperature.

    It must not be assumed that a vessel operated at a lower temperature can be used above its rated MAWP. The rating may be governed by factors other than the strength of the vessel wall. The closure design, the magnetic drive, the seal type, the other components selected and the construction material can all limit the pressure and temperature ratings.

    As the table below shows, the maximum operating temperature of some materials is much lower than the value allowed for stainless steel.

    Maximum Allowable Temperatures
    Materials of ConstructionMaximum Temperature
    T316/316L Stainless Steelon request
    Alloy 20426 °C
    Alloy 230on request
    Alloy 400482 °C
    Alloy 600on request
    Alloy 625 Gr 1648 °C
    Alloy A-286371 °C
    Alloy B-2/B-3426 °C
    Alloy C-276on request
    Nickel 200315 °C
    Titanium Grade 2, 3, 4 and 7315 °C
    Zirconium Grade 702 and 705371 °C

    Safe calculation of the maximum working pressures and temperatures of reactors and pressure vessels involves multiple factors.
